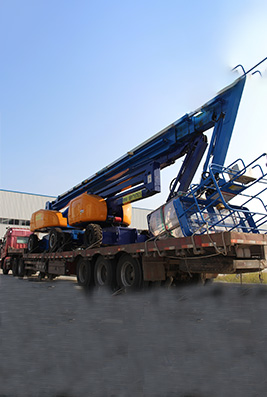

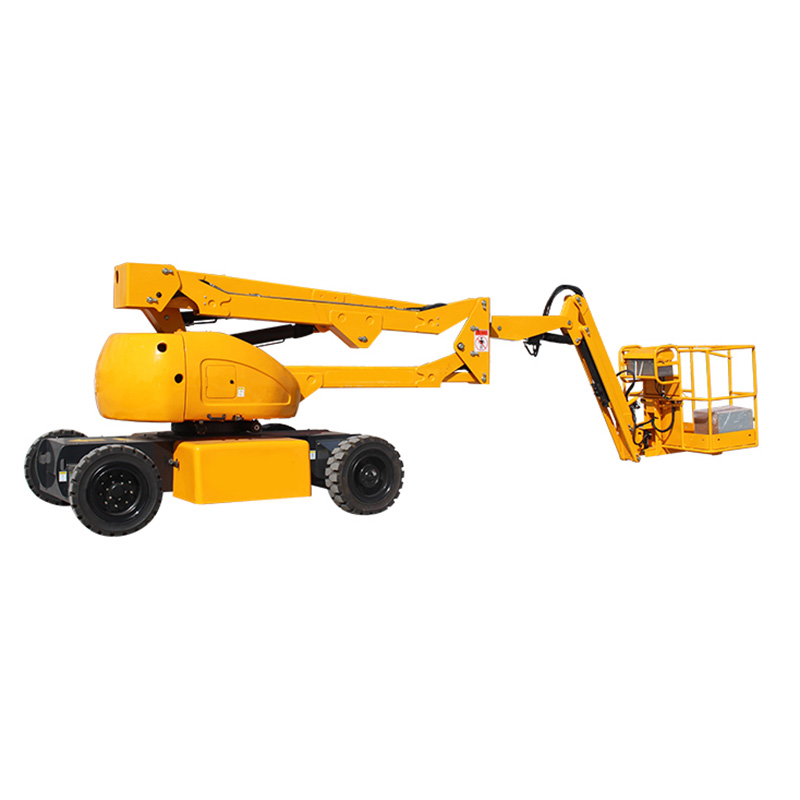

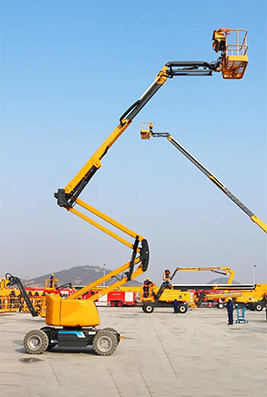

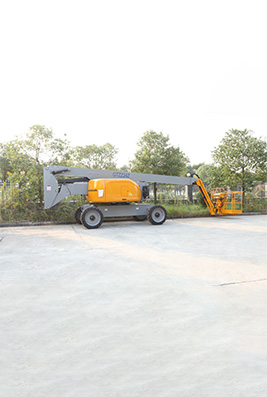

Cross-country Crank Arm Aerial Work Platform
GTQZ cross-country curved arm aerial work platform is used for up and down manipulate and electric powered lifting. This aerial lifting platform is small, flexible, handy and fast. You can use a lifting platform rather of scaffolding to attain the peak you want and resolve your problems. At the equal time, it can store your price and precious time. This sequence of elevators are extensively used for lifting operations in municipal, electric powered power, avenue lamps, highways, docks, advertisements, gardens, residential property, factories, mining enterprises, workshops and different industries.
Product Features:
(1) Large hydraulic cylinder capacity, non-stop hydraulic oil circulation, and top hydraulic device temperature.
(2) Program motion function: solely when the tower growth luffing reaches the most angle, can the tower growth telescopic growth extend; Only when the telescopic growth of the tower growth is completely retracted can the tower increase luffing down to forestall ahead and backward tipping and make sure the steadiness of the total vehicle.
(3) A patented weighing device. The patented weighing gadget of our corporation is adopted, which can precisely weigh the workload of the workbench. The weighing machine is now not affected by way of the function of the load on the platform, and the ordinary operation of the platform is avoided from being affected with the aid of misjudgment.
Product Parameters:
Model | GTQZ-16A | GTQZ-18A | GTQZ-20A |
Maximum working height(m) | 18 | 20 | 22 |
Maximum lifting height (m) | 16 | 18 | 20 |
Maximum horizontal working radius (m) | 9.79 | 10.8 | 13.3 |
Maximum bearing capacity(kg) | 230 | 230 | 230 |
Turning radius of inner wheel(m) | 3 | 3 | 4.5 |
Turning radius of outer ship(m) | 5.2 | 5.2 | |
Platform size (L x W x H)(m) | 1.83×0.76×1.13 | 1.83×0.76×1.13 | 2.44×0.91×1.13 |
Collection size (L x W xH)(m) | 7.42×2.28×2.38 | 8.3×2.48×2.38 | 8.66×2.49×2.83 |
Wheel base (m) | 2.2 | 2.6 | 2.5 |
Max Climb Capability | 0.4 | 0.3 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～1.5 | 0～1.5 | 0～1.5 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections(section) | 2 | 2 | 2 |
Boom luffing angle (°) | －25～＋75 | －15～＋75 | －10～＋75 |
Number of tower boom sections (sections) | 2 | 2 | 2 |
Tower arm luffing angle (°) | 0～＋60 | 0～＋60 | 0～＋77 |
Flying arm luffing angle (°) | －55～＋75 | －55～＋75 | －55～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Ground clearance (m) | 0.33 | 0.33 | 0.33 |
Fuel tank capacity (L) | 100 | 100 | 100 |
Driving speed (stowed)(km/h) | 6.3 | 6.3 | 6.3 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 12 | 12 | 12 |
Engine rated power (kw/rmp) | 45/2200 | 45/2200 | 45/2200 |
Drive wheel size | 33×12-20 | 33×12-20 | 33×12-20 |
Drive steering type | 4×2×2 | 4×2×2 | 4×2×2 |
Operating Weight (kg) | 7700 | 8550 | 10000 |
| Model | GTQZ-22A | GTQZ-24A | GTQZ-30A |
| Maximum working height(m) | 24 | 26 | 32 |
| Maximum lifting height (m) | 22 | 24 | 30 |
| Maximum horizontal working radius (m) | 13.3 | 13.3 | 20.2 |
| Maximum bearing capacity(kg) | 230 | 230 | 230 |
| Turning radius of inner wheel(m) | 3 | 3 | 4.14 |
| Turning radius of outer ship(m) | 5.2 | 5.2 | 6.56 |
| Platform size (L x W x H)(m) | 2.44×0.91×1.13 | 2.44×0.91×1.13 | 2.44×0.91×1.13 |
| Collection size (L x W x H)(m) | 10.1×2.49×2.83 | 10.7×2.49×2.8 | 12.52×3.35×3.165 |
| Wheelbase (m) | 2.6 | 3 | 3.66 |
| Max Climb Capability | 0.3 | 0.3 | 0.4 |
| Turntable rotation angle (°) | 360 | 360 | 360 |
| Rotary speed of turntable(rpm) | 0～1.5 | 0～1.5 | 0～0.8 |
| Platform rotation angle (°) | 160 | 160 | 160 |
| Number of boom sections(section) | 2 | 2 | 2 |
| Boom luffing angle (°) | －10～＋75 | －10～＋75 | －10～＋75 |
| Number of tower boom sections (sections) | 2 | 2 | 2 |
| Tower arm luffing angle (°) | 0～＋77 | 0～＋77 | 0～＋77 |
| Flying arm luffing angle (°) | －55～＋75 | －55～＋75 | －55～＋75 |
| Maximum hydraulic pressure | 21 | 21 | 21 |
| Ground clearance (m) | 0.33 | 0.33 | 0.43 |
| Fuel tank capacity (L) | 100 | 100 | 151 |
| Driving speed (stowed)(km/h) | 6.3 | 6.3 | 4.4 |
| Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
| System voltage (V) | 12 | 12 | 24 |
| Engine rated power (kw/rmp) | 45/2200 | 45/2200 | 56/2200 |
| Drive wheel size | 33×12-20 | 33×12-20 | 33×12-20 |
| Drive steering type | 4×2×2 | 4×2×2 | 4×4×4 |
| Operating Weight (kg) | 11000 | 12000 | 18000 |
Model | GTQZ-38A | GTQZ-40A | GTQZ-45A |
Maximum working height(m) | 40 | 42 | 47 |
Maximum lifting height (m) | 38 | 40 | 45 |
Maximum horizontal working radius (m) | 18.1 | 21.6 | 19.2 |
Maximum bearing capacity(kg) | 230 | 230 | 230 |
Turning radius of inner wheel(m) | 4.14 | 4.13 | 4.13 |
Turning radius of outer ship(m) | 7.02 | 7.02 | 7.02 |
Platform size (L x W x H)(m) | 2.44×0.91×1.13 | 2.44×0.91×1.13 | 2.44×0.91×1.13 |
Collection size (L x W x H)(m) | 14.7×3.9×3.17 | 12.6×3.9×3.17 | 16.27×3.9×3.17 |
Wheelbase (m) | 3.96 | 3.96 | 3.96 |
Max Climb Capability | 0.4 | 0.4 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～1.0 | 0～1.0 | 0～0.8 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections (section) | 2 | 2 | 2 |
Boom luffing angle (°) | －10～＋75 | －10～＋75 | －10～＋75 |
Number of tower boom sections (sections) | 2 | 2 | 2 |
Tower arm luffing angle (°) | 0～＋77 | 0～＋77 | 0～＋77 |
Flying arm luffing angle (°) | －55～＋75 | －55～＋75 | －55～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Ground clearance (m) | 0.43 | 0.43 | 0.43 |
Fuel tank capacity (L) | 151 | 151 | 151 |
Travel speed (collection state)(km/h) | 4.4 | 4.4 | 4.4 |
Travel speed (lifting state)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 24 | 24 | 24 |
Engine rated power (kw/rmp) | 56/2200 | 56/2200 | 56/2200 |
Drive wheel size | 33×12-20 | 33×12-20 | 33×12-20 |
Drive steering type | 4×4×4 | 4×4×4 | 4×4×4 |
Weight of the whole machine(kg) | 20000 | 21000 | 26000 |
