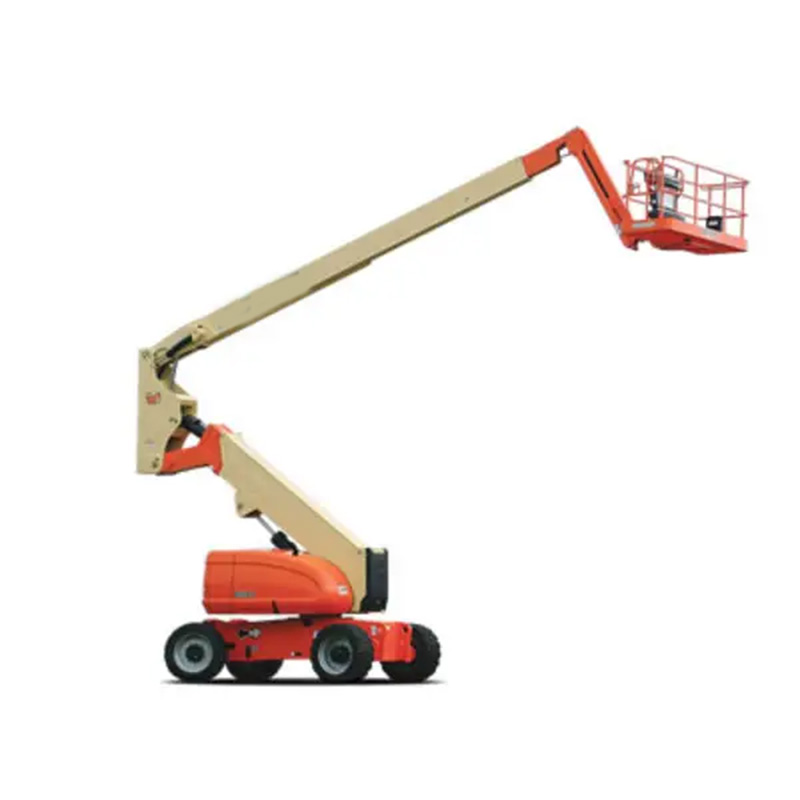

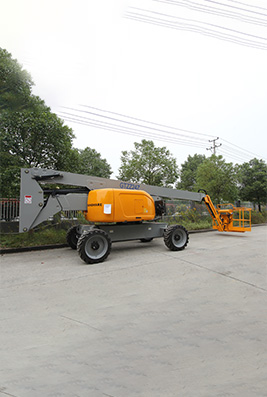

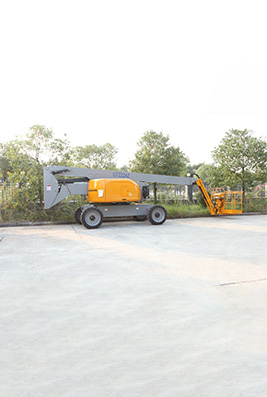

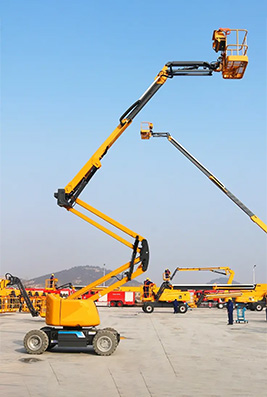

Cross-country Crankshaft Lifting Platform
GTQZ off-road curved arm aerial work platform is a new product developed by our company. The equipment uses Perkins in-line four cylinder water-cooled engine as the power source, which can adapt to the field application on rough ground and drive smoothly; Four wheel drive, braking, climbing capacity of 45%; The boom part is a linkage mechanism composed of two groups of parallel four connecting rods, with compact collection volume and large lifting stroke; The middle part is a simple boom telescopic mechanism, which increases the operating range of the platform. It is applicable to the high-level exhibition arrangement of the venue, as well as the space operation in the workshop with narrow area or space; It is especially suitable for continuous high-altitude operations in airport terminals, stations, docks, shopping malls, stadiums, residential properties, factories, mines and workshops.
Product Features:
(1) Strong climbing force and excellent traction force enable the machine to drive on rough ground.
(2) The telescopic boom is made of high-strength 8-angle alloy steel. In this way, the welding deformation of the telescopic boom can be minimized, so that the telescopic boom can be durable, and has the best rigidity and weight ratio. The main boom droop size is also minimized.
(3) Proportional control operating system.
(4) The upper and lower range of the jib is 150 degrees.
(5) The platform can rotate 100 degrees hydraulically from left to right, with platform anti-skid floor and landing sight.
Product Parameters:
Model | GTQZ-16A | GTQZ-18A | GTQZ-20A |
Maximum working height(m) | 18 | 20 | 22 |
Maximum lifting height (m) | 16 | 18 | 20 |
Maximum horizontal working radius (m) | 9.79 | 10.8 | 13.3 |
Maximum bearing capacity(kg) | 230 | 230 | 230 |
Turning radius of inner wheel(m) | 3 | 3 | 4.5 |
Turning radius of outer ship(m) | 5.2 | 5.2 | |
Platform size (L x W x H)(m) | 1.83×0.76×1.13 | 1.83×0.76×1.13 | 2.44×0.91×1.13 |
Collection size (L x W xH)(m) | 7.42×2.28×2.38 | 8.3×2.48×2.38 | 8.66×2.49×2.83 |
Wheel base (m) | 2.2 | 2.6 | 2.5 |
Max Climb Capability | 0.4 | 0.3 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～1.5 | 0～1.5 | 0～1.5 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections(section) | 2 | 2 | 2 |
Boom luffing angle (°) | －25～＋75 | －15～＋75 | －10～＋75 |
Number of tower boom sections (sections) | 2 | 2 | 2 |
Tower arm luffing angle (°) | 0～＋60 | 0～＋60 | 0～＋77 |
Flying arm luffing angle (°) | －55～＋75 | －55～＋75 | －55～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Ground clearance (m) | 0.33 | 0.33 | 0.33 |
Fuel tank capacity (L) | 100 | 100 | 100 |
Driving speed (stowed)(km/h) | 6.3 | 6.3 | 6.3 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 12 | 12 | 12 |
Engine rated power (kw/rmp) | 45/2200 | 45/2200 | 45/2200 |
Drive wheel size | 33×12-20 | 33×12-20 | 33×12-20 |
Drive steering type | 4×2×2 | 4×2×2 | 4×2×2 |
Operating Weight (kg) | 7700 | 8550 | 10000 |
Model | GTQZ-22A | GTQZ-24A | GTQZ-30A |
Maximum working height(m) | 24 | 26 | 32 |
Maximum lifting height (m) | 22 | 24 | 30 |
Maximum horizontal working radius (m) | 13.3 | 13.3 | 20.2 |
Maximum bearing capacity(kg) | 230 | 230 | 230 |
Turning radius of inner wheel(m) | 3 | 3 | 4.14 |
Turning radius of outer ship(m) | 5.2 | 5.2 | 6.56 |
Platform size (L x W x H)(m) | 2.44×0.91×1.13 | 2.44×0.91×1.13 | 2.44×0.91×1.13 |
Collection size (L x W x H)(m) | 10.1×2.49×2.83 | 10.7×2.49×2.8 | 12.52×3.35×3.165 |
Wheelbase (m) | 2.6 | 3 | 3.66 |
Max Climb Capability | 0.3 | 0.3 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～1.5 | 0～1.5 | 0～0.8 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections(section) | 2 | 2 | 2 |
Boom luffing angle (°) | －10～＋75 | －10～＋75 | －10～＋75 |
Number of tower boom sections (sections) | 2 | 2 | 2 |
Tower arm luffing angle (°) | 0～＋77 | 0～＋77 | 0～＋77 |
Flying arm luffing angle (°) | －55～＋75 | －55～＋75 | －55～＋75 |
Maximum hydraulic pressure | 21 | 21 | 21 |
Ground clearance (m) | 0.33 | 0.33 | 0.43 |
Fuel tank capacity (L) | 100 | 100 | 151 |
Driving speed (stowed)(km/h) | 6.3 | 6.3 | 4.4 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 12 | 12 | 24 |
Engine rated power (kw/rmp) | 45/2200 | 45/2200 | 56/2200 |
Drive wheel size | 33×12-20 | 33×12-20 | 33×12-20 |
Drive steering type | 4×2×2 | 4×2×2 | 4×4×4 |
Operating Weight (kg) | 11000 | 12000 | 18000 |
Model | GTQZ-38A | GTQZ-40A | GTQZ-45A |
Maximum working height(m) | 40 | 42 | 47 |
Maximum lifting height (m) | 38 | 40 | 45 |
Maximum horizontal working radius (m) | 18.1 | 21.6 | 19.2 |
Maximum bearing capacity(kg) | 230 | 230 | 230 |
Turning radius of inner wheel(m) | 4.14 | 4.13 | 4.13 |
Turning radius of outer ship(m) | 7.02 | 7.02 | 7.02 |
Platform size (L x W x H)(m) | 2.44×0.91×1.13 | 2.44×0.91×1.13 | 2.44×0.91×1.13 |
Collection size (L x W x H)(m) | 14.7×3.9×3.17 | 12.6×3.9×3.17 | 16.27×3.9×3.17 |
Wheelbase (m) | 3.96 | 3.96 | 3.96 |
Max Climb Capability | 0.4 | 0.4 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～1.0 | 0～1.0 | 0～0.8 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections (section) | 2 | 2 | 2 |
Boom luffing angle (°) | －10～＋75 | －10～＋75 | －10～＋75 |
Number of tower boom sections (sections) | 2 | 2 | 2 |
Tower arm luffing angle (°) | 0～＋77 | 0～＋77 | 0～＋77 |
Flying arm luffing angle (°) | －55～＋75 | －55～＋75 | －55～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Ground clearance (m) | 0.43 | 0.43 | 0.43 |
Fuel tank capacity (L) | 151 | 151 | 151 |
Travel speed (collection state)(km/h) | 4.4 | 4.4 | 4.4 |
Travel speed (lifting state)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 24 | 24 | 24 |
Engine rated power (kw/rmp) | 56/2200 | 56/2200 | 56/2200 |
Drive wheel size | 33×12-20 | 33×12-20 | 33×12-20 |
Drive steering type | 4×4×4 | 4×4×4 | 4×4×4 |
Weight of the whole machine(kg) | 20000 | 21000 | 26000 |
