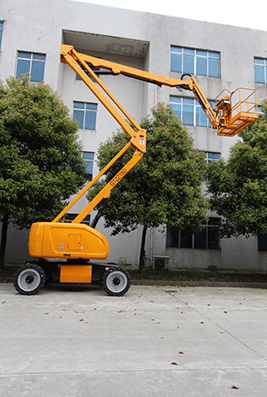

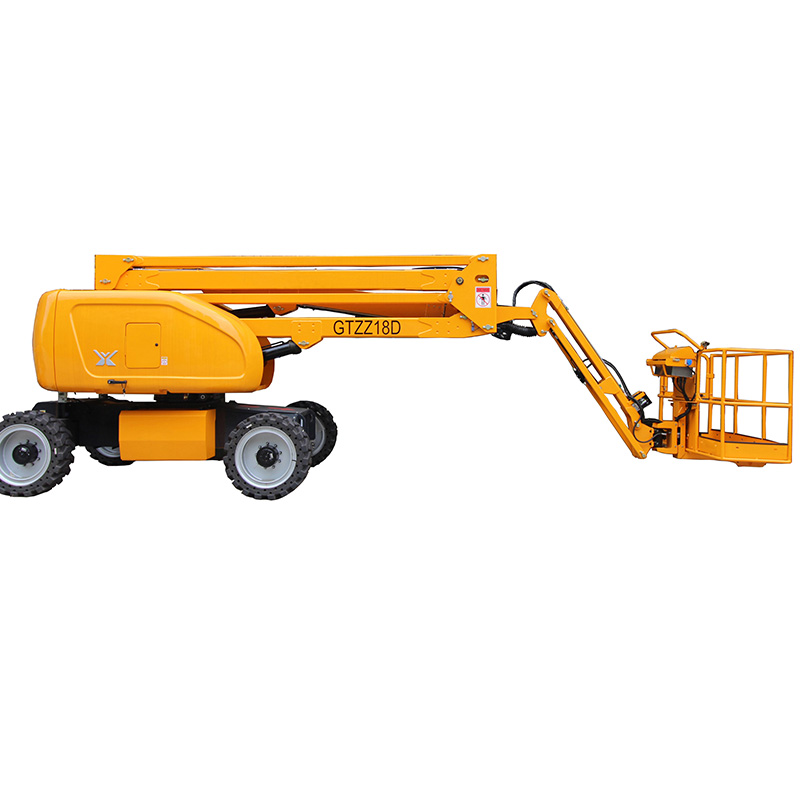

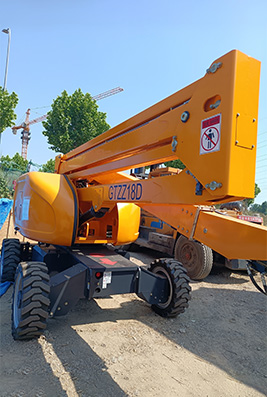

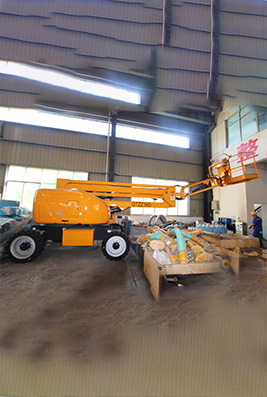

Electric Articulating Boom Lift Platform
GTQZ Self propelled Jib kind Aerial Work Platform is a new product developed by means of our company. The tools makes use of the American Trojan massive ability lead-acid battery as the strength source, which can adapt to the area software on hard floor and power smoothly; Four wheel drive,braking,hiking potential of 45%; The increase phase is a linkage mechanism composed of two organizations of parallel 4 connecting rods, with compact series extent and giant lifting stroke; The center phase is a easy growth telescopic mechanism, which will increase the working vary of the platform. It is relevant to the high-level exhibition association of the venue, as nicely as the area operation in the workshop with slender location or space; It is mainly appropriate for non-stop high-altitude operations in airport terminals, stations, docks, buying malls, stadiums, residential properties, factories, mines and workshops.
Product Features:
(1) PLC and CAN bus control. One industrial controller is installed on the under-frame, turntable and platform respectively. The protection grade of these controllers is IP65. At the same time, advanced CAN bus control is adopted, which has simple circuit and good reliability; Simple maintenance and fault diagnosis.
(2) Electronic leveling. The leveling of the working platform relies on the leveling controller to detect the angle of the platform relative to the plumb line, and the output signal controls the leveling proportional valve to achieve automatic leveling, with high leveling accuracy and good reliability.
(3) High security. The double spool hydraulic circuit prevents the hydraulic valve from sticking and causing uncontrollable accidents. The emergency power unit ensures that the vehicle can be collected in time even if the engine fails.
(4) Anti misoperation function. Prevent the engine from restarting when it is started, and protect the starter and flywheel gear ring; When the platform amplitude and height reach a certain value, the driving speed and boom motion speed will be automatically limited, even if the engine is at a high speed.
Technical Parameters:
Model | GTQZ-10D | GTQZ-12D | GTQZ-14D |
Maximum working height(m) | 12 | 14 | 16 |
Maximum lifting height (m) | 10 | 12 | 14 |
Maximum horizontal extension (m) | 5.8 | 6.5 | 7.88 |
Maximum crossing height(m) | 4.78 | 7.6 | 7.6 |
Maximum bearing capacity(kg) | 200 | 230 | 230 |
Minimum turning radius (m) | 2.16 | 4.5 | 4.5 |
Platform size (L x W x H)(m) | 1.1×0.65×1.13 | 1.53×0.76×1.13 | 1.53×0.76×1.13 |
Collection size (L x W x H)(m) | 4.35×1.5×1.99 | 5.25×1.75×2.0 | 6.24×1.75×2.0 |
Wheelbase (m) | 1.65 | 2 | 2 |
Tail sweep (m) | 0 | 0 | 0 |
Hydraulic oil tank capacity(L) | 40 | 70 | 70 |
Gradeability (%) | 0.25 | 0.3 | 0.3 |
Rotary table rotation angle (°) | 355 | 360 | 360 |
Platform rotation angle (°) | 120 | 180 | 180 |
Ground clearance (m) | 0.15 | 0.2 | 0.2 |
Drive motor (kw) | 6.5×2 | 6.5×2 | 6.5×2 |
Driving speed (stowed)(km/h) | 3 | 5 | 6.3 |
Driving speed (lifting status)(km/h) | 0.8 | 0.8 | 1.1 |
Control voltage (V) | 12 | 24 | 24 |
Battery (V/Ah) | 48/320 | 48/420 | 48/420 |
Charger (V/A) | 48/40 | 48/50 | 48/50 |
Drive wheel size | 250-15 | 250-15 | 250-15 |
Operating Weight (kg) | 5200 | 6500 | 6780 |
Model | GTQZ-16D | GTQZ-18D | GTQZ-20D |
Maximum working height(m) | 18 | 20 | 22 |
Maximum lifting height (m) | 16 | 18 | 20 |
Maximum horizontalextension (m) | 10 | 10.8 | 10.88 |
Maximum crossing height(m) | 7.6 | 8.5 | 8.5 |
Maximum bearing capacity(kg) | 230 | 230 | 230 |
Minimum turning radius (m) | 4.5 | 4.5 | 4.5 |
Platform size (L x W x H)(m) | 1.53×0.76×1.13 | 1.83×0.76×1.13 | 1.83×0.76×1.13 |
Collection size (L x W x H)(m) | 7.9×2.28×2.0 | 8.1×2.48×2.38 | 8.1×2.48×2.38 |
Wheelbase (m) | 2 | 2.6 | 2.6 |
Tail sweep (m) | 0 | 0 | 0 |
Hydraulic oil tank capacity(L) | 70 | 140 | 140 |
Gradeability (%) | 0.3 | 0.25 | 0.25 |
Rotary table rotation angle (°) | 360 | 360 | 360 |
Platform rotation angle (°) | 180 | 160 | 160 |
Ground clearance (m) | 0.2 | 0.425 | 0.425 |
Drive motor (kw) | 6.5×2 | 6.5×2 | 6.5×2 |
Driving speed (stowed)(km/h) | 5 | 5 | 5 |
Driving speed (lifting status)(km/h) | 0.8 | 1.1 | 1.1 |
Control voltage (V) | 24 | 24 | 24 |
Battery (V/Ah) | 48/420 | 48/420 | 48/420 |
Charger (V/A) | 48/50 | 48/50 | 48/50 |
Drive wheel size | 250-15 | 250-15 | 250-15 |
Operating Weight (kg) | 7110 | 8550 | 9860 |
