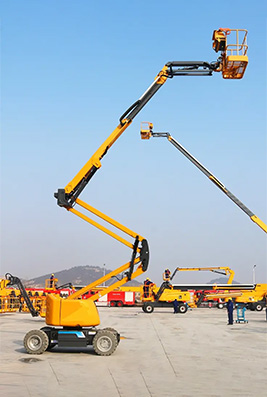

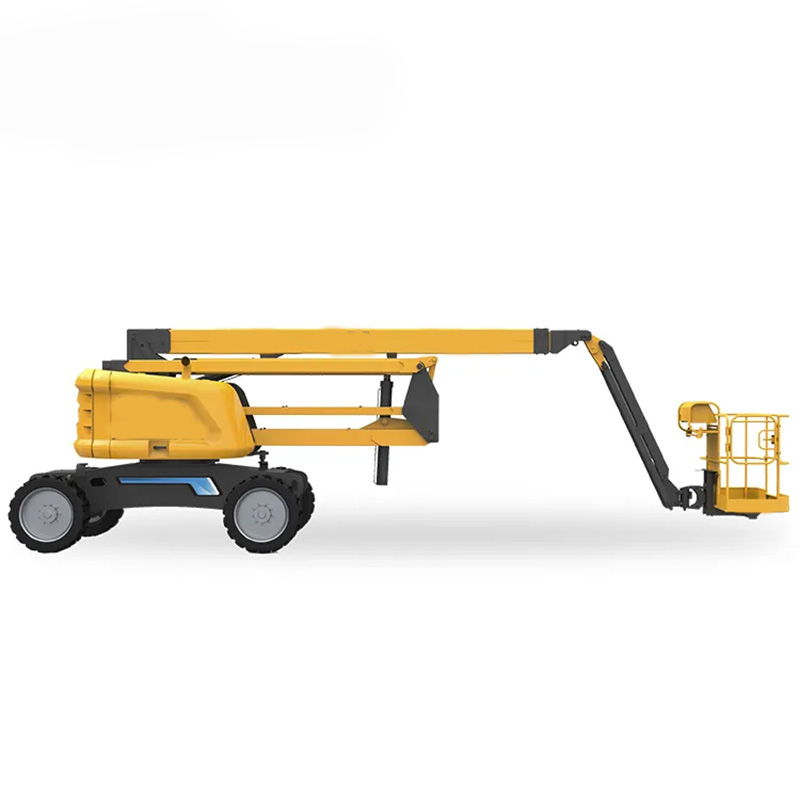

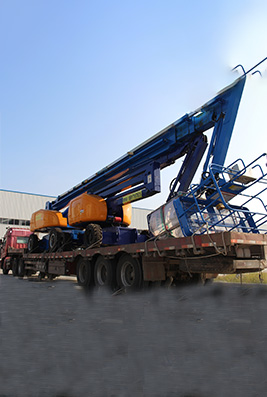

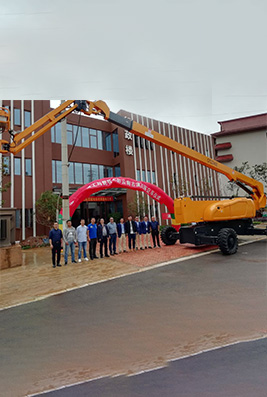

GTQZ Off-road Curved Arm Aerial Work Platform
GTQZ off-road curved arm aerial work platform is a new product developed by means of our company. The gear makes use of Perkins in-line 4 cylinder water-cooled engine as the energy source, which can adapt to the area software on difficult floor and force smoothly; Four wheel drive, braking, mountaineering potential of 45%; The growth section is a linkage mechanism composed of two businesses of parallel 4 connecting rods, with compact series quantity and giant lifting stroke; The center section is a easy increase telescopic mechanism, which will increase the running vary of the platform. It is relevant to the high-level exhibition association of the venue, as nicely as the house operation in the workshop with slim vicinity or space; It is mainly appropriate for non-stop high-altitude operations in airport terminals, stations,docks,purchasing malls, stadiums, residential properties, factories, mines and workshops.
Product Features:
(1) Strong hiking pressure and splendid traction pressure allow the computer to power on tough ground.
(2) The telescopic growth is made of high-strength 8-angle alloy steel. In this way, the welding deformation of the telescopic growth can be minimized, so that the telescopic growth can be durable, and has the high-quality pressure and weight ratio. The principal growth slump measurement is additionally minimized.
(3) Proportional manipulate running system.
(4) The top and decrease vary of the jib is a hundred and fifty degrees.
(5) The platform can rotate a hundred levels hydraulically from left to right, with platform anti-skid ground and touchdown sight.
Product Parameters:
Model | GTQZ-16A | GTQZ-18A | GTQZ-20A |
Maximum working height(m) | 18 | 20 | 22 |
Maximum lifting height (m) | 16 | 18 | 20 |
Maximum horizontal working radius (m) | 9.79 | 10.8 | 13.3 |
Maximum bearing capacity(kg) | 230 | 230 | 230 |
Turning radius of inner wheel(m) | 3 | 3 | 4.5 |
Turning radius of outer ship(m) | 5.2 | 5.2 | |
Platform size (L x W x H)(m) | 1.83×0.76×1.13 | 1.83×0.76×1.13 | 2.44×0.91×1.13 |
Collection size (L x W xH)(m) | 7.42×2.28×2.38 | 8.3×2.48×2.38 | 8.66×2.49×2.83 |
Wheel base (m) | 2.2 | 2.6 | 2.5 |
Max Climb Capability | 0.4 | 0.3 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～1.5 | 0～1.5 | 0～1.5 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections(section) | 2 | 2 | 2 |
Boom luffing angle (°) | －25～＋75 | －15～＋75 | －10～＋75 |
Number of tower boom sections (sections) | 2 | 2 | 2 |
Tower arm luffing angle (°) | 0～＋60 | 0～＋60 | 0～＋77 |
Flying arm luffing angle (°) | －55～＋75 | －55～＋75 | －55～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Ground clearance (m) | 0.33 | 0.33 | 0.33 |
Fuel tank capacity (L) | 100 | 100 | 100 |
Driving speed (stowed)(km/h) | 6.3 | 6.3 | 6.3 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 12 | 12 | 12 |
Engine rated power (kw/rmp) | 45/2200 | 45/2200 | 45/2200 |
Drive wheel size | 33×12-20 | 33×12-20 | 33×12-20 |
Drive steering type | 4×2×2 | 4×2×2 | 4×2×2 |
Operating Weight (kg) | 7700 | 8550 | 10000 |
Model | GTQZ-22A | GTQZ-24A | GTQZ-30A |
Maximum working height(m) | 24 | 26 | 32 |
Maximum lifting height (m) | 22 | 24 | 30 |
Maximum horizontal working radius (m) | 13.3 | 13.3 | 20.2 |
Maximum bearing capacity(kg) | 230 | 230 | 230 |
Turning radius of inner wheel(m) | 3 | 3 | 4.14 |
Turning radius of outer ship(m) | 5.2 | 5.2 | 6.56 |
Platform size (L x W x H)(m) | 2.44×0.91×1.13 | 2.44×0.91×1.13 | 2.44×0.91×1.13 |
Collection size (L x W x H)(m) | 10.1×2.49×2.83 | 10.7×2.49×2.8 | 12.52×3.35×3.165 |
Wheelbase (m) | 2.6 | 3 | 3.66 |
Max Climb Capability | 0.3 | 0.3 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～1.5 | 0～1.5 | 0～0.8 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections(section) | 2 | 2 | 2 |
Boom luffing angle (°) | －10～＋75 | －10～＋75 | －10～＋75 |
Number of tower boom sections (sections) | 2 | 2 | 2 |
Tower arm luffing angle (°) | 0～＋77 | 0～＋77 | 0～＋77 |
Flying arm luffing angle (°) | －55～＋75 | －55～＋75 | －55～＋75 |
Maximum hydraulic pressure | 21 | 21 | 21 |
Ground clearance (m) | 0.33 | 0.33 | 0.43 |
Fuel tank capacity (L) | 100 | 100 | 151 |
Driving speed (stowed)(km/h) | 6.3 | 6.3 | 4.4 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 12 | 12 | 24 |
Engine rated power (kw/rmp) | 45/2200 | 45/2200 | 56/2200 |
Drive wheel size | 33×12-20 | 33×12-20 | 33×12-20 |
Drive steering type | 4×2×2 | 4×2×2 | 4×4×4 |
Operating Weight (kg) | 11000 | 12000 | 18000 |
Model | GTQZ-38A | GTQZ-40A | GTQZ-45A |
Maximum working height(m) | 40 | 42 | 47 |
Maximum lifting height (m) | 38 | 40 | 45 |
Maximum horizontal working radius (m) | 18.1 | 21.6 | 19.2 |
Maximum bearing capacity(kg) | 230 | 230 | 230 |
Turning radius of inner wheel(m) | 4.14 | 4.13 | 4.13 |
Turning radius of outer ship(m) | 7.02 | 7.02 | 7.02 |
Platform size (L x W x H)(m) | 2.44×0.91×1.13 | 2.44×0.91×1.13 | 2.44×0.91×1.13 |
Collection size (L x W x H)(m) | 14.7×3.9×3.17 | 12.6×3.9×3.17 | 16.27×3.9×3.17 |
Wheelbase (m) | 3.96 | 3.96 | 3.96 |
Max Climb Capability | 0.4 | 0.4 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～1.0 | 0～1.0 | 0～0.8 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections (section) | 2 | 2 | 2 |
Boom luffing angle (°) | －10～＋75 | －10～＋75 | －10～＋75 |
Number of tower boom sections (sections) | 2 | 2 | 2 |
Tower arm luffing angle (°) | 0～＋77 | 0～＋77 | 0～＋77 |
Flying arm luffing angle (°) | －55～＋75 | －55～＋75 | －55～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Ground clearance (m) | 0.43 | 0.43 | 0.43 |
Fuel tank capacity (L) | 151 | 151 | 151 |
Travel speed (collection state)(km/h) | 4.4 | 4.4 | 4.4 |
Travel speed (lifting state)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 24 | 24 | 24 |
Engine rated power (kw/rmp) | 56/2200 | 56/2200 | 56/2200 |
Drive wheel size | 33×12-20 | 33×12-20 | 33×12-20 |
Drive steering type | 4×4×4 | 4×4×4 | 4×4×4 |
Weight of the whole machine(kg) | 20000 | 21000 | 26000 |
