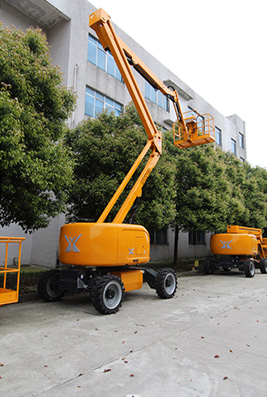

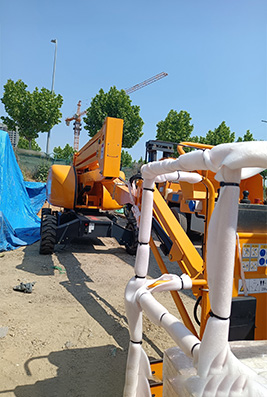

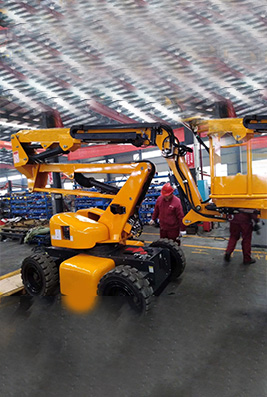

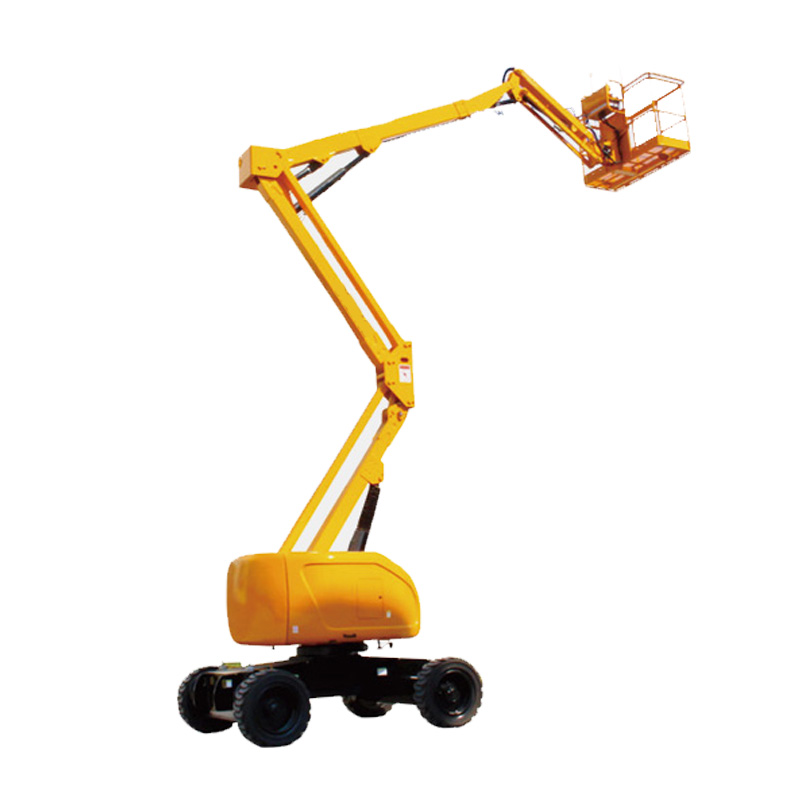

GTQZ Self Propelled Jib Type Aerial Work Platform
GTQZ self propelled curved arm aerial work platform is used for up and down control and electric lifting. This aerial lifting platform is small, flexible, convenient and fast. You can use a lifting platform instead of scaffolding to reach the height you need and solve your problems. At the same time, it can save your expense and valuable time. This series of elevators are widely used for lifting operations in municipal, electric power, street lamps, highways, docks, advertisements, gardens, residential property, factories, mining enterprises, workshops and other industries.
Product Features:
(1) Large hydraulic cylinder capacity, continuous hydraulic oil circulation, and good hydraulic system temperature.
(2) Program action function: only when the tower boom luffing reaches the maximum angle, can the tower boom telescopic boom extend; Only when the telescopic boom of the tower boom is fully retracted can the tower boom luffing down to prevent forward and backward tipping and ensure the stability of the whole vehicle.
(3) A patented weighing device. The patented weighing device of our company is adopted, which can accurately weigh the workload of the workbench. The weighing device is not affected by the position of the load on the platform, and the normal operation of the platform is prevented from being affected by misjudgment.
Technical Parameters:
Model | GTQZ-10D | GTQZ-12D | GTQZ-14D |
Maximum working height(m) | 12 | 14 | 16 |
Maximum lifting height (m) | 10 | 12 | 14 |
Maximum horizontal extension (m) | 5.8 | 6.5 | 7.88 |
Maximum crossing height(m) | 4.78 | 7.6 | 7.6 |
Maximum bearing capacity(kg) | 200 | 230 | 230 |
Minimum turning radius (m) | 2.16 | 4.5 | 4.5 |
Platform size (L x W x H)(m) | 1.1×0.65×1.13 | 1.53×0.76×1.13 | 1.53×0.76×1.13 |
Collection size (L x W x H)(m) | 4.35×1.5×1.99 | 5.25×1.75×2.0 | 6.24×1.75×2.0 |
Wheelbase (m) | 1.65 | 2 | 2 |
Tail sweep (m) | 0 | 0 | 0 |
Hydraulic oil tank capacity(L) | 40 | 70 | 70 |
Gradeability (%) | 0.25 | 0.3 | 0.3 |
Rotary table rotation angle (°) | 355 | 360 | 360 |
Platform rotation angle (°) | 120 | 180 | 180 |
Ground clearance (m) | 0.15 | 0.2 | 0.2 |
Drive motor (kw) | 6.5×2 | 6.5×2 | 6.5×2 |
Driving speed (stowed)(km/h) | 3 | 5 | 6.3 |
Driving speed (lifting status)(km/h) | 0.8 | 0.8 | 1.1 |
Control voltage (V) | 12 | 24 | 24 |
Battery (V/Ah) | 48/320 | 48/420 | 48/420 |
Charger (V/A) | 48/40 | 48/50 | 48/50 |
Drive wheel size | 250-15 | 250-15 | 250-15 |
Operating Weight (kg) | 5200 | 6500 | 6780 |
Model | GTQZ-16D | GTQZ-18D | GTQZ-20D |
Maximum working height(m) | 18 | 20 | 22 |
Maximum lifting height (m) | 16 | 18 | 20 |
Maximum horizontalextension (m) | 10 | 10.8 | 10.88 |
Maximum crossing height(m) | 7.6 | 8.5 | 8.5 |
Maximum bearing capacity(kg) | 230 | 230 | 230 |
Minimum turning radius (m) | 4.5 | 4.5 | 4.5 |
Platform size (L x W x H)(m) | 1.53×0.76×1.13 | 1.83×0.76×1.13 | 1.83×0.76×1.13 |
Collection size (L x W x H)(m) | 7.9×2.28×2.0 | 8.1×2.48×2.38 | 8.1×2.48×2.38 |
Wheelbase (m) | 2 | 2.6 | 2.6 |
Tail sweep (m) | 0 | 0 | 0 |
Hydraulic oil tank capacity(L) | 70 | 140 | 140 |
Gradeability (%) | 0.3 | 0.25 | 0.25 |
Rotary table rotation angle (°) | 360 | 360 | 360 |
Platform rotation angle (°) | 180 | 160 | 160 |
Ground clearance (m) | 0.2 | 0.425 | 0.425 |
Drive motor (kw) | 6.5×2 | 6.5×2 | 6.5×2 |
Driving speed (stowed)(km/h) | 5 | 5 | 5 |
Driving speed (lifting status)(km/h) | 0.8 | 1.1 | 1.1 |
Control voltage (V) | 24 | 24 | 24 |
Battery (V/Ah) | 48/420 | 48/420 | 48/420 |
Charger (V/A) | 48/50 | 48/50 | 48/50 |
Drive wheel size | 250-15 | 250-15 | 250-15 |
Operating Weight (kg) | 7110 | 8550 | 9860 |
