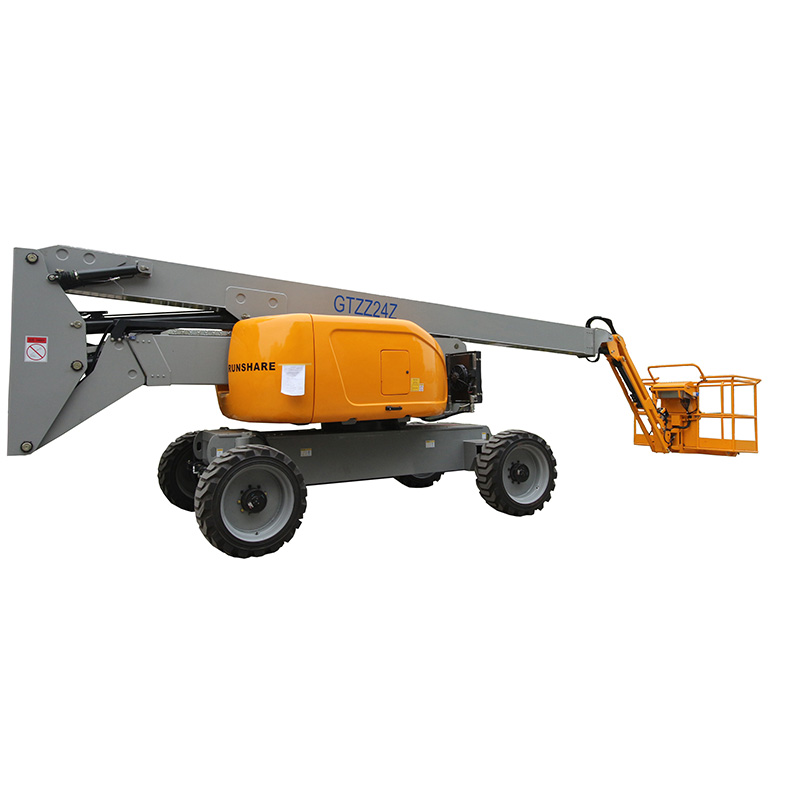

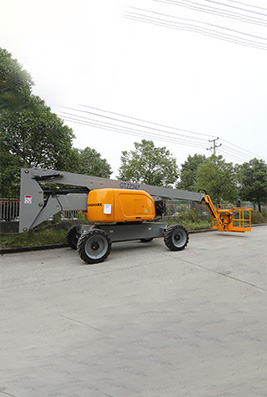

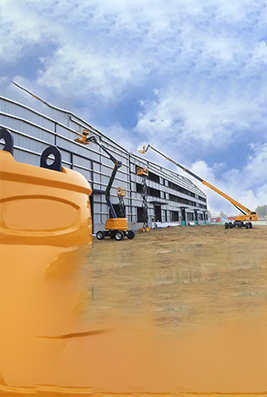

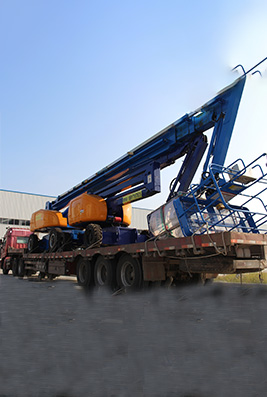

Off Road Curved Arm Aerial Work Platform
GTQZ off-road curved arm aerial work platform is a new product developed with the aid of our company. The gear makes use of Perkins in-line 4 cylinder water-cooled engine as the strength source, which can adapt to the discipline software on difficult floor and force smoothly; Four wheel drive, braking, hiking capability of 45%; The increase phase is a linkage mechanism composed of two businesses of parallel 4 connecting rods, with compact series quantity and massive lifting stroke; The center phase is a easy growth telescopic mechanism, which will increase the working vary of the platform. It is relevant to the high-level exhibition association of the venue, as nicely as the house operation in the workshop with slender region or space; It is mainly appropriate for non-stop high-altitude operations in airport terminals, stations, docks, buying malls, stadiums, residential properties, factories, mines and workshops.
Product Features:
(1) PLC and CAN bus control. One industrial controller is installed on the underframe, turntable and platform respectively. The protection grade of these controllers is IP65. At the same time, advanced CAN bus control is adopted, which has simple circuit and good reliability; Simple maintenance and fault diagnosis.
(2) Electronic leveling. The leveling of the working platform relies on the leveling controller to detect the angle of the platform relative to the plumb line, and the output signal controls the leveling proportional valve to achieve automatic leveling, with high leveling accuracy and good reliability.
(3) High security. The double spool hydraulic circuit prevents the hydraulic valve from sticking and causing uncontrollable accidents. The emergency power unit ensures that the vehicle can be collected in time even if the engine fails.
Anti misoperation function. Prevent the engine from restarting when it is started, and protect the starter and flywheel gear ring; When the platform amplitude and height reach a certain value, the driving speed and boom motion speed will be automatically limited, even if the engine is at a high speed.
Product Parameters:
Model | GTQZ-16A | GTQZ-18A | GTQZ-20A |
Maximum working height(m) | 18 | 20 | 22 |
Maximum lifting height (m) | 16 | 18 | 20 |
Maximum horizontal working radius (m) | 9.79 | 10.8 | 13.3 |
Maximum bearing capacity(kg) | 230 | 230 | 230 |
Turning radius of inner wheel(m) | 3 | 3 | 4.5 |
Turning radius of outer ship(m) | 5.2 | 5.2 | |
Platform size (L x W x H)(m) | 1.83×0.76×1.13 | 1.83×0.76×1.13 | 2.44×0.91×1.13 |
Collection size (L x W xH)(m) | 7.42×2.28×2.38 | 8.3×2.48×2.38 | 8.66×2.49×2.83 |
Wheel base (m) | 2.2 | 2.6 | 2.5 |
Max Climb Capability | 0.4 | 0.3 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～1.5 | 0～1.5 | 0～1.5 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections(section) | 2 | 2 | 2 |
Boom luffing angle (°) | －25～＋75 | －15～＋75 | －10～＋75 |
Number of tower boom sections (sections) | 2 | 2 | 2 |
Tower arm luffing angle (°) | 0～＋60 | 0～＋60 | 0～＋77 |
Flying arm luffing angle (°) | －55～＋75 | －55～＋75 | －55～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Ground clearance (m) | 0.33 | 0.33 | 0.33 |
Fuel tank capacity (L) | 100 | 100 | 100 |
Driving speed (stowed)(km/h) | 6.3 | 6.3 | 6.3 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 12 | 12 | 12 |
Engine rated power (kw/rmp) | 45/2200 | 45/2200 | 45/2200 |
Drive wheel size | 33×12-20 | 33×12-20 | 33×12-20 |
Drive steering type | 4×2×2 | 4×2×2 | 4×2×2 |
Operating Weight (kg) | 7700 | 8550 | 10000 |
Model | GTQZ-22A | GTQZ-24A | GTQZ-30A |
Maximum working height(m) | 24 | 26 | 32 |
Maximum lifting height (m) | 22 | 24 | 30 |
Maximum horizontal working radius (m) | 13.3 | 13.3 | 20.2 |
Maximum bearing capacity(kg) | 230 | 230 | 230 |
Turning radius of inner wheel(m) | 3 | 3 | 4.14 |
Turning radius of outer ship(m) | 5.2 | 5.2 | 6.56 |
Platform size (L x W x H)(m) | 2.44×0.91×1.13 | 2.44×0.91×1.13 | 2.44×0.91×1.13 |
Collection size (L x W x H)(m) | 10.1×2.49×2.83 | 10.7×2.49×2.8 | 12.52×3.35×3.165 |
Wheelbase (m) | 2.6 | 3 | 3.66 |
Max Climb Capability | 0.3 | 0.3 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～1.5 | 0～1.5 | 0～0.8 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections(section) | 2 | 2 | 2 |
Boom luffing angle (°) | －10～＋75 | －10～＋75 | －10～＋75 |
Number of tower boom sections (sections) | 2 | 2 | 2 |
Tower arm luffing angle (°) | 0～＋77 | 0～＋77 | 0～＋77 |
Flying arm luffing angle (°) | －55～＋75 | －55～＋75 | －55～＋75 |
Maximum hydraulic pressure | 21 | 21 | 21 |
Ground clearance (m) | 0.33 | 0.33 | 0.43 |
Fuel tank capacity (L) | 100 | 100 | 151 |
Driving speed (stowed)(km/h) | 6.3 | 6.3 | 4.4 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 12 | 12 | 24 |
Engine rated power (kw/rmp) | 45/2200 | 45/2200 | 56/2200 |
Drive wheel size | 33×12-20 | 33×12-20 | 33×12-20 |
Drive steering type | 4×2×2 | 4×2×2 | 4×4×4 |
Operating Weight (kg) | 11000 | 12000 | 18000 |
Model | GTQZ-38A | GTQZ-40A | GTQZ-45A |
Maximum working height(m) | 40 | 42 | 47 |
Maximum lifting height (m) | 38 | 40 | 45 |
Maximum horizontal working radius (m) | 18.1 | 21.6 | 19.2 |
Maximum bearing capacity(kg) | 230 | 230 | 230 |
Turning radius of inner wheel(m) | 4.14 | 4.13 | 4.13 |
Turning radius of outer ship(m) | 7.02 | 7.02 | 7.02 |
Platform size (L x W x H)(m) | 2.44×0.91×1.13 | 2.44×0.91×1.13 | 2.44×0.91×1.13 |
Collection size (L x W x H)(m) | 14.7×3.9×3.17 | 12.6×3.9×3.17 | 16.27×3.9×3.17 |
Wheelbase (m) | 3.96 | 3.96 | 3.96 |
Max Climb Capability | 0.4 | 0.4 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～1.0 | 0～1.0 | 0～0.8 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections (section) | 2 | 2 | 2 |
Boom luffing angle (°) | －10～＋75 | －10～＋75 | －10～＋75 |
Number of tower boom sections (sections) | 2 | 2 | 2 |
Tower arm luffing angle (°) | 0～＋77 | 0～＋77 | 0～＋77 |
Flying arm luffing angle (°) | －55～＋75 | －55～＋75 | －55～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Ground clearance (m) | 0.43 | 0.43 | 0.43 |
Fuel tank capacity (L) | 151 | 151 | 151 |
Travel speed (collection state)(km/h) | 4.4 | 4.4 | 4.4 |
Travel speed (lifting state)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 24 | 24 | 24 |
Engine rated power (kw/rmp) | 56/2200 | 56/2200 | 56/2200 |
Drive wheel size | 33×12-20 | 33×12-20 | 33×12-20 |
Drive steering type | 4×4×4 | 4×4×4 | 4×4×4 |
Weight of the whole machine(kg) | 20000 | 21000 | 26000 |
