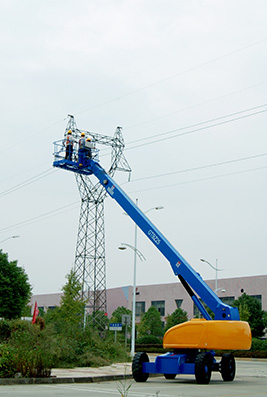

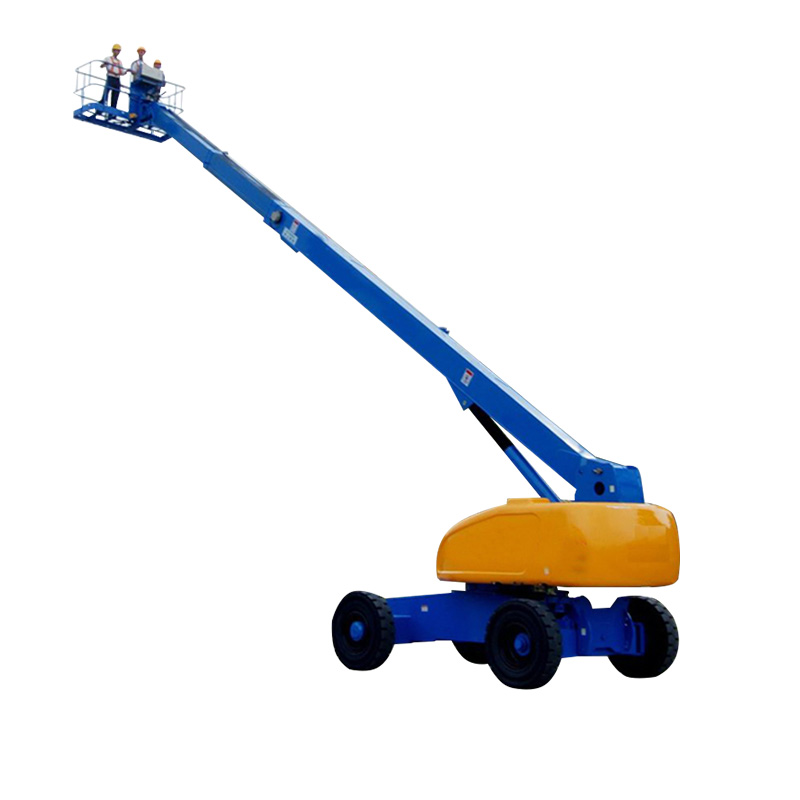

Self-propelled Straight Arm Aerial Working Platform
GTBZ type self propelled straight arm aerial working platform is used for up and down control and electric lifting. This aerial lifting platform is small, flexible, convenient and fast. You can use a lifting platform instead of a scaffold to reach the height you need and solve your problems. At the same time, it can save your expenxe and valuable time. This series of elevators are widely used for lifting operations in municipal, electric power, street lamps, highways, docks, advertisements, gardens, residential property, factories, mining enterprises, workshops and other industries.
Product Features:
Large bearing capacity. The whole machine structure is designed by finite element analysis; The telescopic boom and other key parts are made of high-strength steel, and the stability of the whole machine is analyzed by means of dynamic simulation; At the same time, the digital double sensor detection loop is used to automatically detect and precisely control the amplitude, load and height of the operation, so that the platform can give full play to its effectiveness and creatively increase the carrying capacity to 480kg, which is stronger than the foreign products of the same model; For example, the bearing capacity of the S-80 and S-100 of Guinness is 272kg and 340kg respectively.
Technical Parameters:
Model | GTBZ-23 | GTBZ-25 | GTBZ-27 |
Maximum working height(m) | 25 | 27.2 | 28.7 |
Maximum lifting height (m) | 23 | 25.2 | 26.7 |
Maximum horizontal working radius (m) | 20.8 | 21.9 | 23.4 |
Maximum bearing capacity(kg) | 480/260 | 480/260 | 480/330 |
Turning radius of inner wheel(m) | 3 | 3.59 | 3.59 |
Turning radius of outer ship(m) | 5.2 | 5.95 | 6.25 |
Platform size (L x W x H)(m) | 1.83×0.76×1.13 | 1.83×0.76×1.13 | 2.44×0.91×1.13 |
Collection size (L x W x H)(m) | 11.08×2.49×2.7 | 11.36×2.79×2.8 | 8.66×2.49×2.83 |
Wheelbase (m) | 2.8 | 3 | 3 |
Max Climb Capability | 0.3 | 0.3 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～1.0 | 0～1.0 | 0～1.0 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections(section) | 3 | 3 | 3 |
Boom luffing angle (°) | －10～＋75 | －12～＋75 | －12～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Maximum pressure of traveling system (MPa) | 25 | 25 | 25 |
Ground clearance (m) | 0.44 | 0.43 | 0.43 |
Fuel tank capacity (L) | 151 | 151 | 151 |
Driving speed (stowed)(km/h) | 6.3 | 5.3 | 5.3 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 12 | 24 | 24 |
Rated power of engine (kw/rmp) | 56/2200 | 56/2200 | 60/2200 |
Drive wheel size | 45219 | 45280 | 45280 |
Drive steering type | 4×2×2 | 4×2×2 | 4×2×2 |
Operating Weight (kg) | 13540 | 15500 | 16140 |
Model | GTBZ-30 | GTBZ-32 | GTBZ-36 |
Maximum working height(m) | 32.5 | 34 | 38.7 |
Maximum lifting height (m) | 30.5 | 32 | 36.7 |
Maximum horizontal working radius (m) | 22.9 | 22.9 | 20.5 |
Maximum bearing capacity(kg) | 480/340 | 480/340 | 480/340 |
Turning radius of inner wheel(m) | 4.14 | 4.14 | 3.13 |
Turning radius of outer ship(m) | 6.56 | 6.56 | 6.75 |
Platform size (L x W x H)(m) | 2.44×0.91×1.13 | 2.44×0.91×1.13 | 2.44×0.91×1.13 |
Collection size (L x W x H)(m) | 13×2.49×3.08 | 13×2.49×3.12 | 13×2.49×3.18 |
Wheelbase (m) | 3.66 | 3.66 | 3.9 |
Max Climb Capability | 0.4 | 0.4 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～0.8 | 0～0.8 | 0～0.8 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections(section) | 3 | 3 | 3 |
Boom luffing angle (°) | －12～＋75 | －12～＋75 | －12～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Maximum pressure of traveling system (MPa) | 25 | 25 | 25 |
Ground clearance (m) | 0.43 | 0.43 | 0.43 |
Fuel tank capacity (L) | 151 | 151 | 151 |
Driving speed (stowed)(km/h) | 4.4 | 4.4 | 4.4 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 24 | 24 | 24 |
Rated power of engine (kw/rmp) | 60/2200 | 60/2200 | 60/2200 |
Drive wheel size | 45219 | 45280 | 45280 |
Drive steering type | 4×4×4 | 4×4×4 | 4×4×4 |
Operating Weight (kg) | 18500 | 18660 | 20000 |
Model | GTBZ-38 | GTBZ-42 | GTBZ-46 |
Maximum working height(m) | 40.4 | 44 | 48 |
Maximum lifting height (m) | 38.4 | 42 | 46 |
Maximum horizontal working radius (m) | 22.9 | 23 | 23.4 |
Maximum bearing capacity(kg) | 480/230 | 480/230 | 480/230 |
Turning radius of inner wheel(m) | 3.13 | 3.13 | 4.13 |
Turning radius of outer ship(m) | 6.75 | 6.75 | 7.02 |
Platform size (L x W x H)(m) | 2.44×0.91×1.13 | 2.44×0.91×1.13 | 2.44×0.91×1.13 |
Collection size (L x W x H)(m) | 14.1×2.49×3.22 | 13.65×2.49×3.28 | 13.26×2.8×3.36 |
Wheelbase (m) | 3.9 | 3.9 | 4.2 |
Max Climb Capability | 0.4 | 0.4 | 0.3 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～0.8 | 0～0.8 | 0～0.3 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections(section) | 4 | 4 | 4 |
Boom luffing angle (°) | －12～＋75 | －12～＋75 | －12～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Maximum pressure of traveling system (MPa) | 25 | 25 | 25 |
Ground clearance (m) | 0.43 | 0.43 | 0.43 |
Fuel tank capacity (L) | 151 | 151 | 151 |
Driving speed (stowed)(km/h） | 4.4 | 4.4 | 4.4 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 24 | 24 | 24 |
Rated power of engine(kw/rmp) | 60/2200 | 60/2200 | 60/2200 |
Drive wheel size | 45280 | 45280 | 385x65-22.5 |
Drive steering type | 4×4×4 | 4×4×4 | 4×4×4 |
Operating Weight (kg) | 20900 | 21900 | 24900 |
| Model | GTBZ-23 | GTBZ-25 | GTBZ-27 |
| Maximum working height(m) | 25 | 27.2 | 28.7 |
| Maximum lifting height (m) | 23 | 25.2 | 26.7 |
| Maximum horizontal working radius (m) | 20.8 | 21.9 | 23.4 |
| Maximum bearing capacity(kg) | 480/260 | 480/260 | 480/330 |
| Turning radius of inner wheel(m) | 3 | 3.59 | 3.59 |
| Turning radius of outer ship(m) | 5.2 | 5.95 | 6.25 |
| Platform size (L x W x H)(m) | 1.83×0.76×1.13 | 1.83×0.76×1.13 | 2.44×0.91×1.13 |
| Collection size (L x W x H)(m) | 11.08×2.49×2.7 | 11.36×2.79×2.8 | 8.66×2.49×2.83 |
| Wheelbase (m) | 2.8 | 3 | 3 |
| Max Climb Capability | 0.3 | 0.3 | 0.4 |
| Turntable rotation angle (°) | 360 | 360 | 360 |
| Rotary speed of turntable(rpm) | 0～1.0 | 0～1.0 | 0～1.0 |
| Platform rotation angle (°) | 160 | 160 | 160 |
| Number of boom sections(section) | 3 | 3 | 3 |
| Boom luffing angle (°) | －10～＋75 | －12～＋75 | －12～＋75 |
| Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
| Maximum pressure of | 25 | 25 | 25 |
| traveling system (MPa) | |||
| Ground clearance (m) | 0.44 | 0.43 | 0.43 |
| Fuel tank capacity (L) | 151 | 151 | 151 |
| Driving speed (stowed)(km/h) | 6.3 | 5.3 | 5.3 |
| Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
| System voltage (V) | 12 | 24 | 24 |
| E n g i n e r a t e d p o w e r (kw/rmp) | 56/2200 | 56/2200 | 60/2200 |
| Drive wheel size | 45219 | 45280 | 45280 |
| Drive steering type | 4×2×2 | 4×2×2 | 4×2×2 |
| Operating Weight (kg) | 13540 | 15500 | 16140 |
