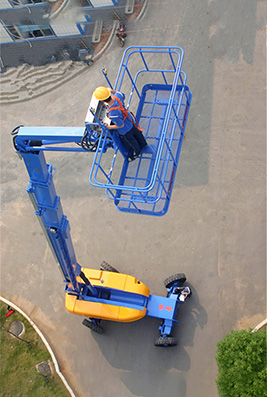

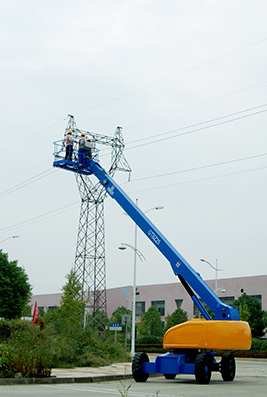

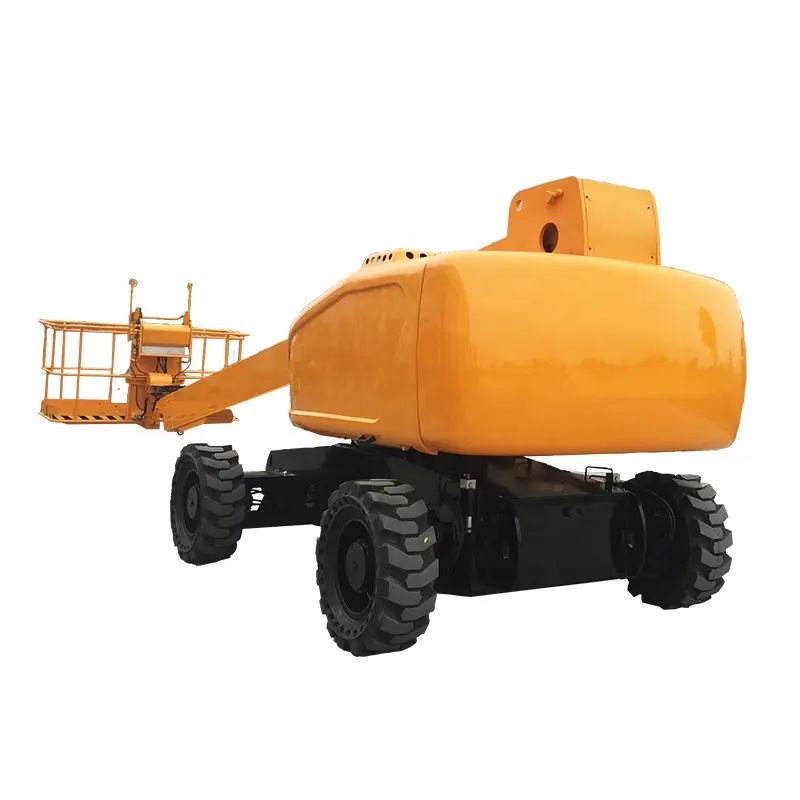

Straight Arm Aerial Work Platform
GTBZ kind of self-propelled straight-arm aerial working platform is used for up and down manipulation and electric lifting. This aerial lifting platform is small, flexible, handy and fast. You can use a lifting platform as a substitute for a scaffold to attain the top you want and clear up your problems. At the identical time, it can store your expensive and precious time. This collection of elevators is broadly used for lifting operations in municipal, electric-powered power, road lamps, highways, docks, advertisements, gardens, residential property, factories, mining enterprises, workshops and different industries.
Product Features:
(1) Electronic leveling
The leveling of the working platform relies on the leveling controller to detect the angle of the platform relative to the plumb line, and the output signal controls the leveling proportional valve to achieve automatic leveling, with high leveling accuracy and good reliability.
(2) High security. Dual sensor and dual electrical circuit functions are set; The emergency power unit ensures that the vehicle can be collected in time even if the engine fails.
(3) Anti-misoperation function. Prevent the engine from restarting when it is started, and protect the starter and flywheel gear ring; When the platform amplitude and height reach a certain value, the driving speed and boom motion speed will be automatically limited, even if the engine is at a high speed.
Technical Parameters:
Model | GTBZ-23 | GTBZ-25 | GTBZ-27 |
Maximum working height(m) | 25 | 27.2 | 28.7 |
Maximum lifting height (m) | 23 | 25.2 | 26.7 |
Maximum horizontal working radius (m) | 20.8 | 21.9 | 23.4 |
Maximum bearing capacity(kg) | 480/260 | 480/260 | 480/330 |
Turning radius of inner wheel(m) | 3 | 3.59 | 3.59 |
Turning radius of outer ship(m) | 5.2 | 5.95 | 6.25 |
Platform size (L x W x H)(m) | 1.83×0.76×1.13 | 1.83×0.76×1.13 | 2.44×0.91×1.13 |
Collection size (L x W x H)(m) | 11.08×2.49×2.7 | 11.36×2.79×2.8 | 8.66×2.49×2.83 |
Wheelbase (m) | 2.8 | 3 | 3 |
Max Climb Capability | 0.3 | 0.3 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～1.0 | 0～1.0 | 0～1.0 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections(section) | 3 | 3 | 3 |
Boom luffing angle (°) | －10～＋75 | －12～＋75 | －12～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Maximum pressure of traveling system (MPa) | 25 | 25 | 25 |
Ground clearance (m) | 0.44 | 0.43 | 0.43 |
Fuel tank capacity (L) | 151 | 151 | 151 |
Driving speed (stowed)(km/h) | 6.3 | 5.3 | 5.3 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 12 | 24 | 24 |
Rated power of engine (kw/rmp) | 56/2200 | 56/2200 | 60/2200 |
Drive wheel size | 45219 | 45280 | 45280 |
Drive steering type | 4×2×2 | 4×2×2 | 4×2×2 |
Operating Weight (kg) | 13540 | 15500 | 16140 |
Model | GTBZ-30 | GTBZ-32 | GTBZ-36 |
Maximum working height(m) | 32.5 | 34 | 38.7 |
Maximum lifting height (m) | 30.5 | 32 | 36.7 |
Maximum horizontal working radius (m) | 22.9 | 22.9 | 20.5 |
Maximum bearing capacity(kg) | 480/340 | 480/340 | 480/340 |
Turning radius of inner wheel(m) | 4.14 | 4.14 | 3.13 |
Turning radius of outer ship(m) | 6.56 | 6.56 | 6.75 |
Platform size (L x W x H)(m) | 2.44×0.91×1.13 | 2.44×0.91×1.13 | 2.44×0.91×1.13 |
Collection size (L x W x H)(m) | 13×2.49×3.08 | 13×2.49×3.12 | 13×2.49×3.18 |
Wheelbase (m) | 3.66 | 3.66 | 3.9 |
Max Climb Capability | 0.4 | 0.4 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～0.8 | 0～0.8 | 0～0.8 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections(section) | 3 | 3 | 3 |
Boom luffing angle (°) | －12～＋75 | －12～＋75 | －12～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Maximum pressure of traveling system (MPa) | 25 | 25 | 25 |
Ground clearance (m) | 0.43 | 0.43 | 0.43 |
Fuel tank capacity (L) | 151 | 151 | 151 |
Driving speed (stowed)(km/h) | 4.4 | 4.4 | 4.4 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 24 | 24 | 24 |
Rated power of engine (kw/rmp) | 60/2200 | 60/2200 | 60/2200 |
Drive wheel size | 45219 | 45280 | 45280 |
Drive steering type | 4×4×4 | 4×4×4 | 4×4×4 |
Operating Weight (kg) | 18500 | 18660 | 20000 |
Model | GTBZ-38 | GTBZ-42 | GTBZ-46 |
Maximum working height(m) | 40.4 | 44 | 48 |
Maximum lifting height (m) | 38.4 | 42 | 46 |
Maximum horizontal working radius (m) | 22.9 | 23 | 23.4 |
Maximum bearing capacity(kg) | 480/230 | 480/230 | 480/230 |
Turning radius of inner wheel(m) | 3.13 | 3.13 | 4.13 |
Turning radius of outer ship(m) | 6.75 | 6.75 | 7.02 |
Platform size (L x W x H)(m) | 2.44×0.91×1.13 | 2.44×0.91×1.13 | 2.44×0.91×1.13 |
Collection size (L x W x H)(m) | 14.1×2.49×3.22 | 13.65×2.49×3.28 | 13.26×2.8×3.36 |
Wheelbase (m) | 3.9 | 3.9 | 4.2 |
Max Climb Capability | 0.4 | 0.4 | 0.3 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～0.8 | 0～0.8 | 0～0.3 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections(section) | 4 | 4 | 4 |
Boom luffing angle (°) | －12～＋75 | －12～＋75 | －12～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Maximum pressure of traveling system (MPa) | 25 | 25 | 25 |
Ground clearance (m) | 0.43 | 0.43 | 0.43 |
Fuel tank capacity (L) | 151 | 151 | 151 |
Driving speed (stowed)(km/h） | 4.4 | 4.4 | 4.4 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 24 | 24 | 24 |
Rated power of engine(kw/rmp) | 60/2200 | 60/2200 | 60/2200 |
Drive wheel size | 45280 | 45280 | 385x65-22.5 |
Drive steering type | 4×4×4 | 4×4×4 | 4×4×4 |
Operating Weight (kg) | 20900 | 21900 | 24900 |
