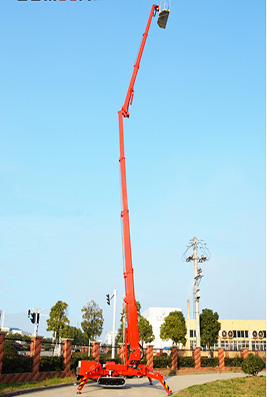

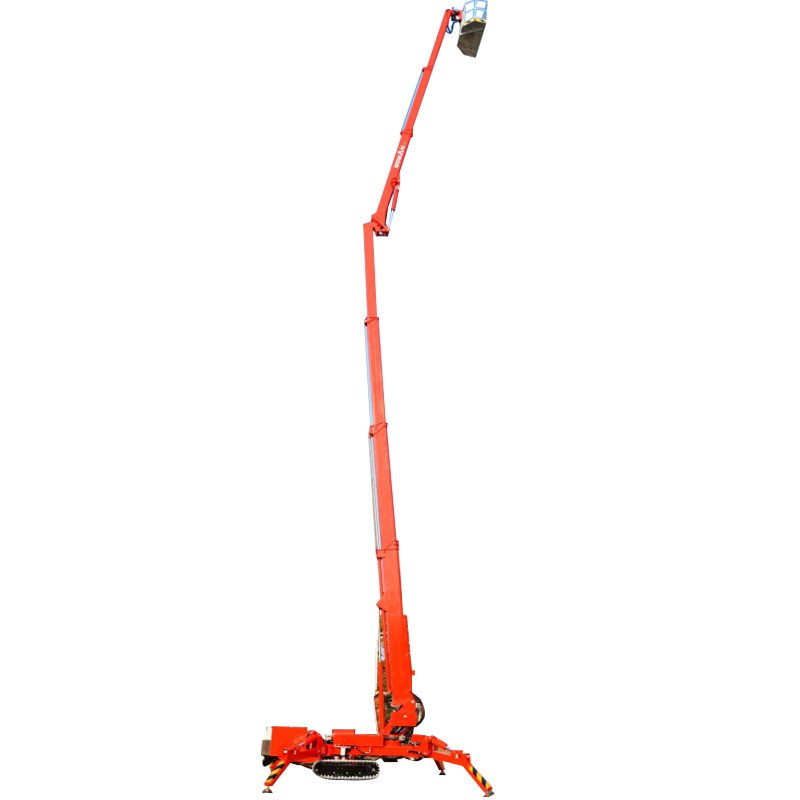

Crawler Spider Lifting Vehicle
PSS kind self-propelled curved-arm aerial working platform is a new product. The computer adopts imported maintenance-free battery as the energy source, the tools can adapt to the software of hard floor site,easy driving; crawler walking, braking, hiking potential of 36%; the growth phase is two organizations of parallel four-link linkage composed of linkage mechanism, series quantity compact, giant elevation stroke; the central phase is easy growth telescoping mechanism, growing the running vary of the platform. Suitable for the venue high-level display, additionally appropriate for the location or area slender plant house operations; especially appropriate for the airport terminal, station, dock, buying malls, stadiums, neighborhood property, factories and mines workshop and different massive vary of non-stop high-altitude operations.
Product Features:
(1) The maximum lifting angle of the big arm is 78°.
(2) With emergency stop device and overload protection device.
(3) All functions of the work platform can be completed from the work bucket.
(4) Can drive on any uneven ground, such as muddy ground.
(5) Using the engine with strong sound insulation ability, which can be used in quiet occasions.
(6) The collection size is small, only 0.78m wide and 1.98m high.
Technical Parameters:
Model | PSS150A | PSS180A | PSS230A |
Max. working height(m) | 14.9 | 17.9 | 23 |
Max. platform height(m) | 12.9 | 15.9 | 21 |
Working radius(m) | 6.4 | 7.6 | 11.2 |
Platform capacity(kg) | 200 | 200 | 200 |
Working bucket rotation | 355° | 355° | 180° |
Platform size(L*W*H)(m) | 1.2x0.7x1.1 | 1.2x0.7x 1.1 | 1.2x0.8x1.1 |
Collecting length(m) | 4.71 | 4.71 | 6.2 |
Collection width(mm) | 0.78 | 0.78 | 0.98 |
Collection height(mm) | 1.995 | 1.995 | 1.98 |
Pressure on the ground | 2.1 | 2 | 1.8 |
Pressure on the ground | 3.2 | 3.7 | 4.2 |
Total volume (kg) | 1920 | 2330 | 3010 |
Climbing capacity | 0.36 | 0.36 | 0.3 |
Working slope | 0.158 | 0.158 | 0.158 |
Travel speed (km/h) | 1.5 | 1.5 | 1.3 |
Engine | Japan Honda | Japan Honda | Japan Honda |
Power source | DieselEngine | Diesel Engine | Dieselengine |
| Model | PSS150A | PSS180A | PSS230A |
| Max. working height(m) | 14.9 | 17.9 | 23 |
| Max. platform height(m) | 12.9 | 15.9 | 21 |
| Working radius(m) | 6.4 | 7.6 | 11.2 |
| Platform capacity(kg) | 200 | 200 | 200 |
| Working bucket rotation angle | 355° | 355° | 180° |
| Platform size(L*W*H)(m) | 1.2x0.7x1.1 | 1.2x0.7x 1.1 | 1.2x0.8x1.1 |
| Collecting length(m) | 4.71 | 4.71 | 6.2 |
| Collection width(mm) | 0.78 | 0.78 | 0.98 |
| Collection height(mm) | 1.995 | 1.995 | 1.98 |
| Pressure on the ground at work (Kn/m²) | 2.1 | 2 | 1.8 |
| Pressure on the ground when traveling （Kn/m²) | 3.2 | 3.7 | 4.2 |
| Total volume (kg) | 1920 | 2330 | 3010 |
| Climbing capacity | 0.36 | 0.36 | 0.3 |
| Working slope | 0.158 | 0.158 | 0.158 |
| Travel speed (km/h) | 1.5 | 1.5 | 1.3 |
| Engine | Japan Honda | Japan Honda | Japan Honda |
| Power source | DieselEngine 220V mains power | Diesel Engine 220V mains power | Dieselengine 220V mains power |
