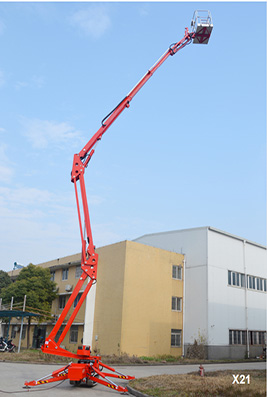

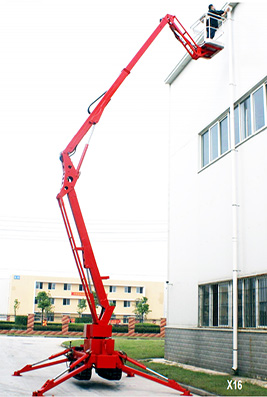

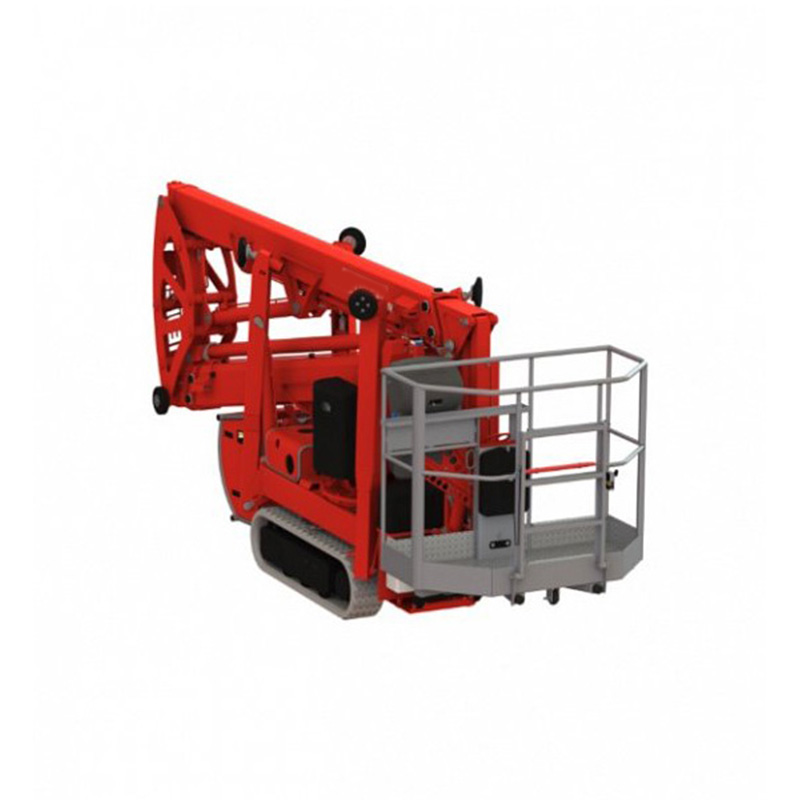

PSS Type Self-propelled Aerial Working Platform
PSS type self-propelled curved-arm aerial working platform is a new product. The machine adopts imported maintenance-free battery as the power source, the equipment can adapt to the application of rough ground site, smooth driving; crawler walking, braking, climbing capacity of 36%; the boom part is two groups of parallel four-link linkage composed of linkage mechanism, collection volume compact, large elevation stroke; the central part is simple boom telescoping mechanism, increasing the operating range of the platform. Suitable for the venue high-level display, also suitable for the area or space narrow plant space operations ;especially suitable for the airport terminal, station, dock, shopping malls, stadiums, community property, factories and mines workshop and other large range of continuous high-altitude operations.
Product Features:
(1) compact shape, beautiful appearance, small collection size, flexible and convenient movement.
(2) rubber tracks on the ground pressure is small, can drive and work on any road surface, especially indoor ground.
(3) The track height and width can be adjusted, which increases the approach angle and departure angle of the track and can drive on any uneven road surface with a climbing capacity of 30%.
(4) The work buckets can all be rotated 180° and can work around obstacles.
Technical Parameters:
Model | PSS150A | PSS180A | PSS230A |
Max. working height(m) | 14.9 | 17.9 | 23 |
Max. platform height(m) | 12.9 | 15.9 | 21 |
Working radius(m) | 6.4 | 7.6 | 11.2 |
Platform capacity(kg) | 200 | 200 | 200 |
Working bucket rotation | 355° | 355° | 180° |
Platform size(L*W*H)(m) | 1.2x0.7x1.1 | 1.2x0.7x 1.1 | 1.2x0.8x1.1 |
Collecting length(m) | 4.71 | 4.71 | 6.2 |
Collection width(mm) | 0.78 | 0.78 | 0.98 |
Collection height(mm) | 1.995 | 1.995 | 1.98 |
Pressure on the ground | 2.1 | 2 | 1.8 |
Pressure on the ground | 3.2 | 3.7 | 4.2 |
Total volume (kg) | 1920 | 2330 | 3010 |
Climbing capacity | 0.36 | 0.36 | 0.3 |
Working slope | 0.158 | 0.158 | 0.158 |
Travel speed (km/h) | 1.5 | 1.5 | 1.3 |
Engine | Japan Honda | Japan Honda | Japan Honda |
Power source | DieselEngine | Diesel Engine | Dieselengine |
| Model | PSS150A | PSS180A | PSS230A |
| Max. working height(m) | 14.9 | 17.9 | 23 |
| Max. platform height(m) | 12.9 | 15.9 | 21 |
| Working radius(m) | 6.4 | 7.6 | 11.2 |
| Platform capacity(kg) | 200 | 200 | 200 |
| Working bucket rotation angle | 355° | 355° | 180° |
| Platform size(L*W*H)(m) | 1.2x0.7x1.1 | 1.2x0.7x 1.1 | 1.2x0.8x1.1 |
| Collecting length(m) | 4.71 | 4.71 | 6.2 |
| Collection width(mm) | 0.78 | 0.78 | 0.98 |
| Collection height(mm) | 1.995 | 1.995 | 1.98 |
| Pressure on the ground at work (Kn/m²) | 2.1 | 2 | 1.8 |
| Pressure on the ground when traveling （Kn/m²) | 3.2 | 3.7 | 4.2 |
| Total volume (kg) | 1920 | 2330 | 3010 |
| Climbing capacity | 0.36 | 0.36 | 0.3 |
| Working slope | 0.158 | 0.158 | 0.158 |
| Travel speed (km/h) | 1.5 | 1.5 | 1.3 |
| Engine | Japan Honda | Japan Honda | Japan Honda |
| Power source | DieselEngine 220V mains power | Diesel Engine 220V mains power | Dieselengine 220V mains power |
