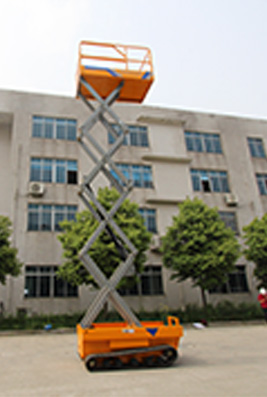

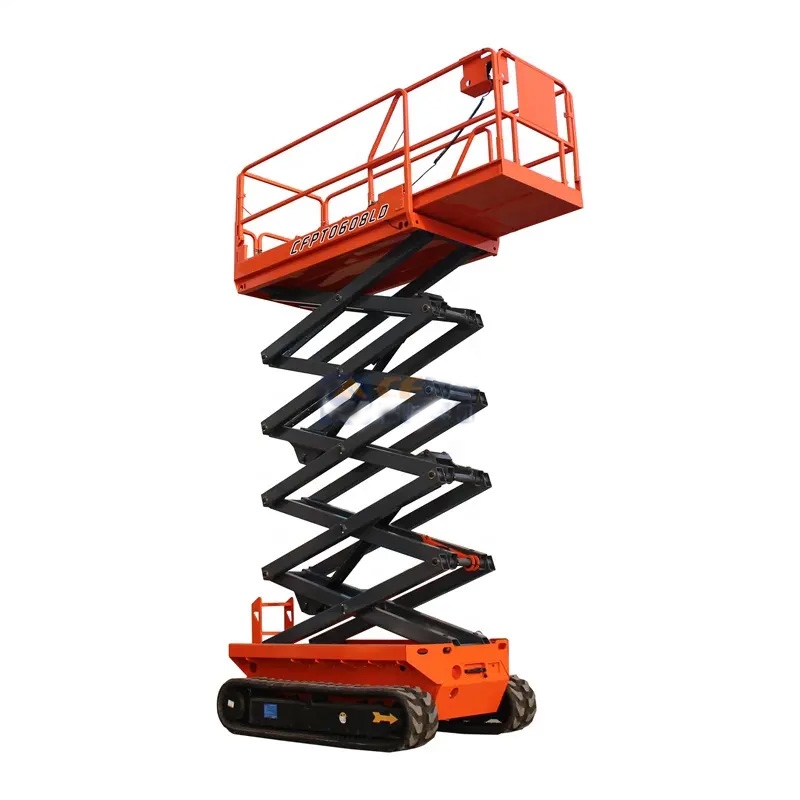

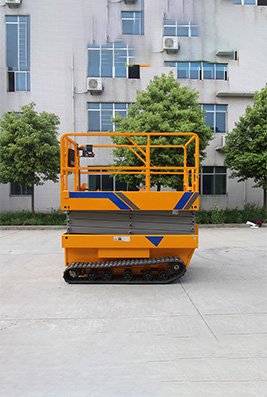

Self-propelled Scissor Crawler Type Aerial Work Platform
Self-propelled scissor aerial work platform with crawler makes many hard and risky jobs easier, such as indoor and out-of-door cleansing (ceilings, curtain walls, glass windows, eaves, canopies, chimneys, etc.) set up and upkeep of billboards, set up and protection of road lights and visitors signs, etc. Its compactness, flexibility, and comfort represent this aerial elevate platform. It can change scaffolding with a lifting platform to attain the peak you want and remedy your problems. At the identical time, it can additionally keep your charges and treasured time.
Product Features:
(1)Extension platform
The platform can be moved out, which expands the working range and can meet the special needs of some users.
(2)Overload protection
With the function of overload protection, it has compulsory protection for personnel who are not familiar with this equipment.
(3)Self-diagnostic function
With the self-diagnosis function, customers can quickly grasp the equipment's own work status in time, and better maintenance of this equipment.
(4)Green environmental protection
Because the machine adopts DC battery power, the machine can be safely and quietly suitable for indoor or outdoor work.
(5)Emergency device
The machine is set with an emergency descent system.
Technical Parameters：
Model | X08T | X10T | X12T |
Maximum working height m | 10 | 12 | 14 |
Max. platform height m | 8 | 10 | 12 |
Platform load capacity kg | 450/120 | 320/120 | 320/120 |
Length m | 2.36 | 2.4 | 2.41 |
Width m | 1.26 | 1.27 | 1.39 |
Height of collection m | 2.47 | 2.62 | 2.72 |
Height of guardrail | 1.82 | 1.96 | 2.07 |
Minimum height of platform m | 1.33 | 1.49 | 1.59 |
Platform size（L×W） m | 2.26×1.15 | 2.26×1.15 | 2.26×1.15 |
Platform horizontal extension m | 0.9 | 0.9 | 0.9 |
Ground clearance m | 0.2 | 0.2 | 0.15 |
Minimum turning radius m | 0 | 0 | 0 |
Travel speed at full retraction km/h | 2 | 2 | 1.8 |
Travel speed when lifting km/h | 0.8 | 0.8 | 0.8 |
Maximum permissible working angle | 1.5°/3° | 1.5°/3° | 1.5°/3° |
Climbing degree | 0.25 | 0.25 | 0.3 |
Lifting motor V/kw | 48/2.2 | 17624 | 17624 |
Battery V/Ah | 4×12/150 | 4×12/150 | 4×12/180 |
Charger V/A | 48/25 | 48/35 | 48/35 |
Crawler specification | 300×72 | 300×72 | 300×72 |
Total mass kg | 2200 | 2500 | 3000 |
