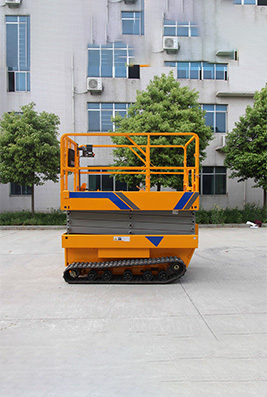

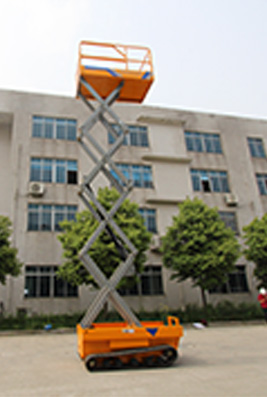

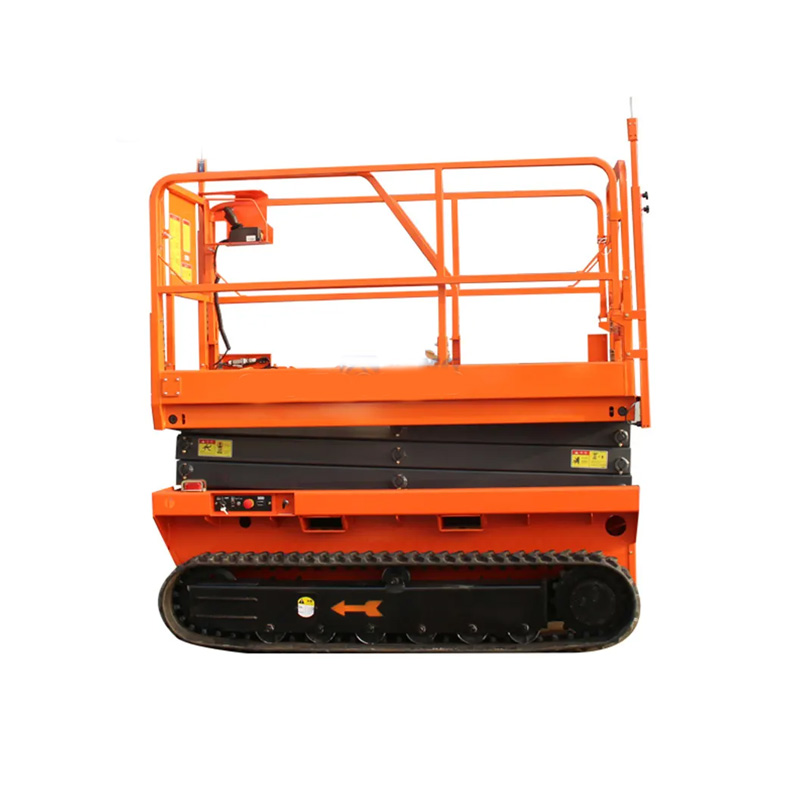

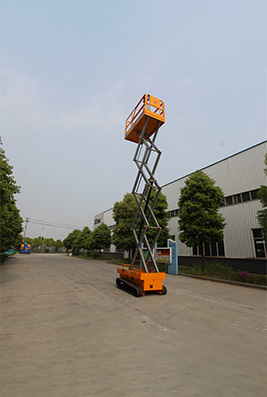

Self-propelled Fork Crawler Type Lifting Platform
Self-propelled scissor aerial work platform with crawler makes many challenging and unsafe jobs easier, such as indoor and out-of-door cleansing (ceilings, curtain walls, glass windows, eaves, canopies, chimneys, etc.) set up and renovation of billboards, set up and renovation of avenue lights and site visitors signs, etc. Its compactness, flexibility, and comfort symbolize this aerial carry platform. It can substitute scaffolding with a lifting platform to attain the top you want and resolve your problems. At the equal time, it can additionally store your fees and treasured time.
Product Features:
(1)Stepless speed change
This type of machine needs only one person to operate. All the movements are controlled by the operating handle on the working platform. The steplessly variable speed motor effectively prolongs the service life of the battery and the motor. The motor only consumes energy when working.
(2) Large-angle steering system
This type of machine adopted a large-angle steering system, making the machine excellent flexibility.
(3) Disc brake system
The machine adopts a hydraulic disc braking system. When the machine is in the stopping state, the wheels are always in the braking state. It can brake reliably when the slope is 6 degrees.
(4) Intelligent charging system
The platform is equipped with a fully automatic charger, which can automatically complete the whole process of charging and will automatically stop charging after the battery is full.
Technical Parameters：
Model | X08T | X10T | X12T |
Maximum working height m | 10 | 12 | 14 |
Max. platform height m | 8 | 10 | 12 |
Platform load capacity kg | 450/120 | 320/120 | 320/120 |
Length m | 2.36 | 2.4 | 2.41 |
Width m | 1.26 | 1.27 | 1.39 |
Height of collection m | 2.47 | 2.62 | 2.72 |
Height of guardrail | 1.82 | 1.96 | 2.07 |
Minimum height of platform m | 1.33 | 1.49 | 1.59 |
Platform size（L×W） m | 2.26×1.15 | 2.26×1.15 | 2.26×1.15 |
Platform horizontal extension m | 0.9 | 0.9 | 0.9 |
Ground clearance m | 0.2 | 0.2 | 0.15 |
Minimum turning radius m | 0 | 0 | 0 |
Travel speed at full retraction km/h | 2 | 2 | 1.8 |
Travel speed when lifting km/h | 0.8 | 0.8 | 0.8 |
Maximum permissible working angle | 1.5°/3° | 1.5°/3° | 1.5°/3° |
Climbing degree | 0.25 | 0.25 | 0.3 |
Lifting motor V/kw | 48/2.2 | 17624 | 17624 |
Battery V/Ah | 4×12/150 | 4×12/150 | 4×12/180 |
Charger V/A | 48/25 | 48/35 | 48/35 |
Crawler specification | 300×72 | 300×72 | 300×72 |
Total mass kg | 2200 | 2500 | 3000 |
