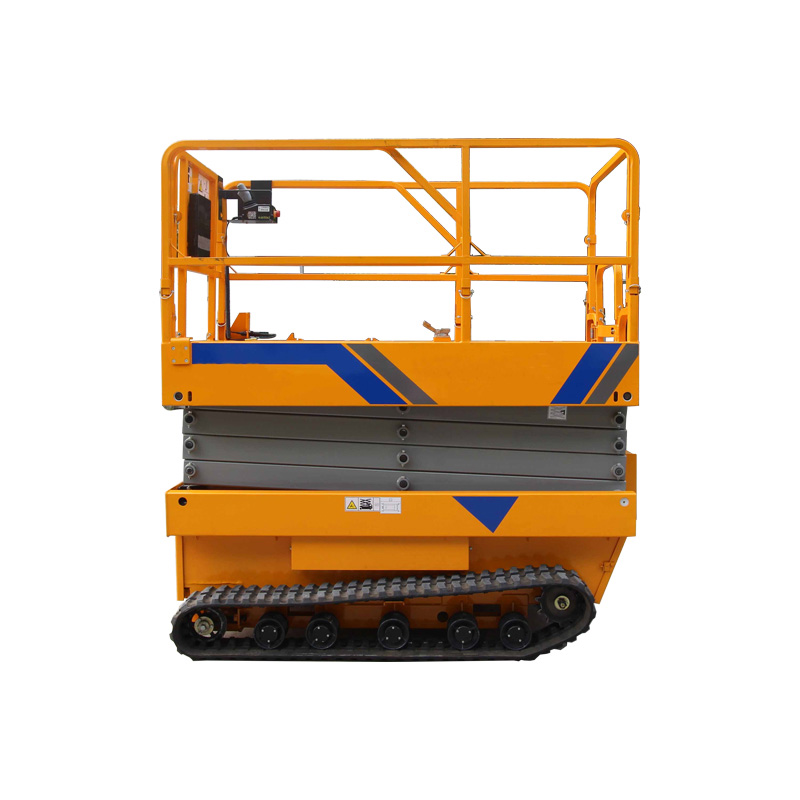

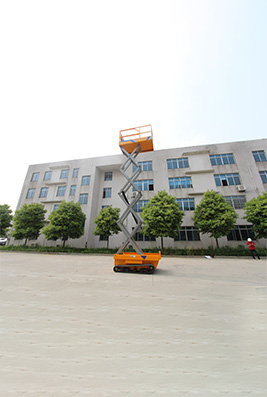

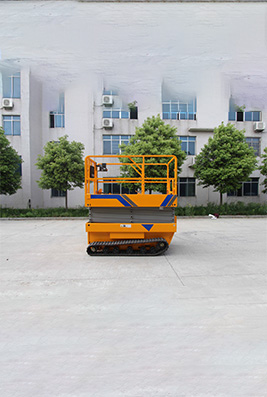

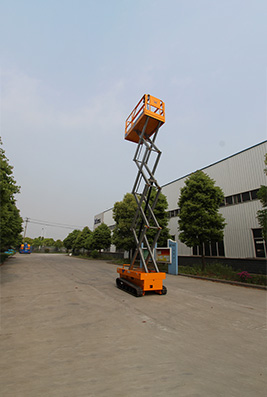

Self-propelled Fork Crawler Type Aerial Work Platform
Self-propelled scissor aerial work platform with crawler makes many difficult and dangerous jobs easier, such as indoor and outdoor cleaning (ceilings, curtain walls, glass windows, eaves, canopies, chimneys, etc.) installation and maintenance of billboards, installation and maintenance of street lights and traffic signs, etc. Its compactness, flexibility and convenience characterize this aerial lift platform. It can replace scaffolding with a lifting platform to reach the height you need and solve your problems. At the same time, it can also save you costs and valuable time.
Product Features:
(1)Safety certification
Comply with the EU EN280 standard and obtain CE certification.
(2) Aerial work can walk
Self-propelled scissors aerial work platform with crawler has the function of automatic walking. It can be in different working conditions, fast, or slow walking. Only one person in the aerial work can operate the machine to continuously complete the lifting, forward, backward, turning and other actions. Compared with the traditional hydraulic platform it greatly improves the efficiency and reduces the number of operators and labor intensity. It is especially suitable for airport terminals, stations, docks, shopping malls, stadiums, community properties, factories, mines and workshops and other larger continuous work at height.
Technical Parameters：
Model | X08T | X10T | X12T |
Maximum working height m | 10 | 12 | 14 |
Max. platform height m | 8 | 10 | 12 |
Platform load capacity kg | 450/120 | 320/120 | 320/120 |
Length m | 2.36 | 2.4 | 2.41 |
Width m | 1.26 | 1.27 | 1.39 |
Height of collection m | 2.47 | 2.62 | 2.72 |
Height of guardrail | 1.82 | 1.96 | 2.07 |
Minimum height of platform m | 1.33 | 1.49 | 1.59 |
Platform size（L×W） m | 2.26×1.15 | 2.26×1.15 | 2.26×1.15 |
Platform horizontal extension m | 0.9 | 0.9 | 0.9 |
Ground clearance m | 0.2 | 0.2 | 0.15 |
Minimum turning radius m | 0 | 0 | 0 |
Travel speed at full retraction km/h | 2 | 2 | 1.8 |
Travel speed when lifting km/h | 0.8 | 0.8 | 0.8 |
Maximum permissible working angle | 1.5°/3° | 1.5°/3° | 1.5°/3° |
Climbing degree | 0.25 | 0.25 | 0.3 |
Lifting motor V/kw | 48/2.2 | 17624 | 17624 |
Battery V/Ah | 4×12/150 | 4×12/150 | 4×12/180 |
Charger V/A | 48/25 | 48/35 | 48/35 |
Crawler specification | 300×72 | 300×72 | 300×72 |
Total mass kg | 2200 | 2500 | 3000 |
