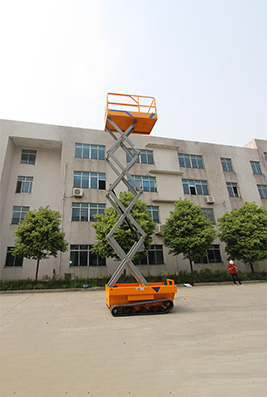

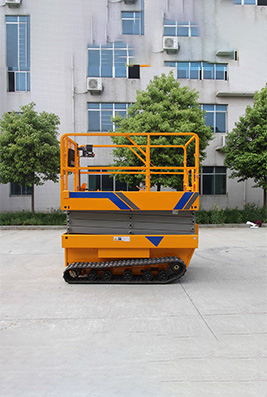

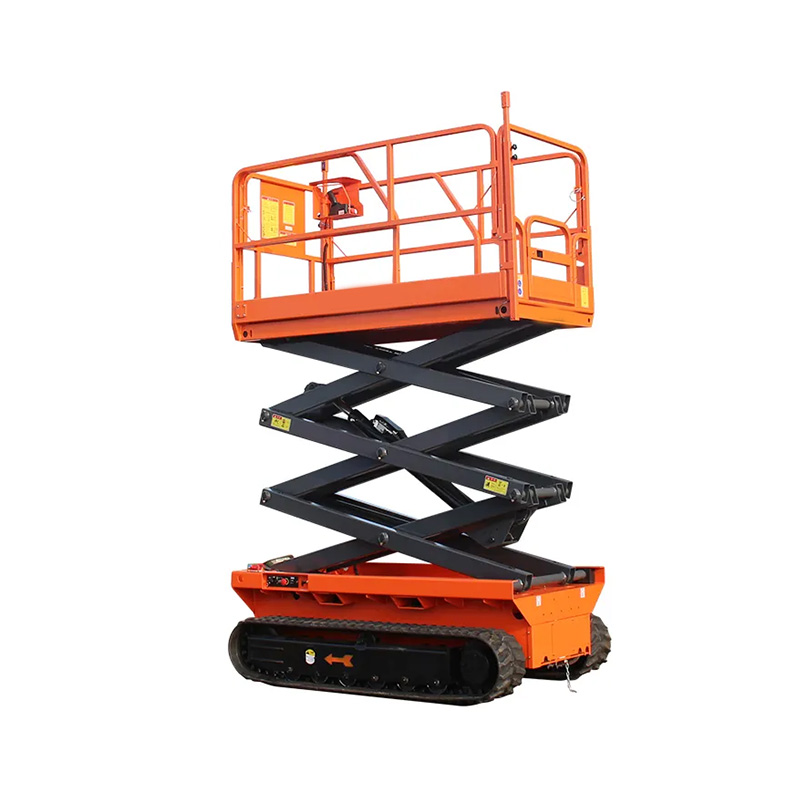

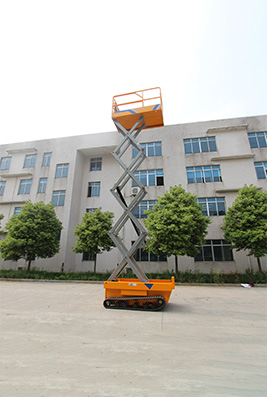

Self-propelled Scissor Aerial Work Platform With Crawler
Self-propelled scissor aerial work platform with crawler makes many tough and unsafe jobs easier, such as indoor and out-of-door cleansing (ceilings, curtain walls, glass windows, eaves, canopies, chimneys, etc.) set up and protection of billboards, set up and protection of road lights and visitors signs, etc. Its compactness, flexibility and comfort symbolize this aerial carry platform. It can substitute scaffolding with a lifting platform to attain the top you want and remedy your problems. At the equal time, it can additionally store your fees and treasured time.
Product Features:
(1)Safety protection
The machine is installed with a horizontal alarm meter. When the whole vehicle tilts more than 3 degrees in all directions, the machine automatically enters the protection system and only allows the machine to have to descend action to a safe state before normal use. The aerial working platform is equipped with a safety plate device in the lower part of the bottom truck. As soon as the platform is raised, the safety plates on both sides will be opened in working condition to make the distance from the ground small to avoid tipping accidents caused by the uneven ground when walking at height. This type of aerial working platform is equipped with an oil pipe explosion-proof system at the oil cylinder.
(2)Self-diagnostic feature
With the self-diagnosis function, clients can rapidly hold close the equipment's very own work popularity in time, higher upkeep of this equipment.
(3)Green environmental safety
Because the computing device adopts DC battery power, the desktop can be safely and quietly appropriate for indoor or doors work.
(4)Emergency gadget
The computer is set with an emergency descent system.
Product Parameters:
Model | X08T | X10T | X12T |
Maximum working height m | 10 | 12 | 14 |
Max. platform height m | 8 | 10 | 12 |
Platform load capacity kg | 450/120 | 320/120 | 320/120 |
Length m | 2.36 | 2.4 | 2.41 |
Width m | 1.26 | 1.27 | 1.39 |
Height of collection m | 2.47 | 2.62 | 2.72 |
Height of guardrail | 1.82 | 1.96 | 2.07 |
Minimum height of platform m | 1.33 | 1.49 | 1.59 |
Platform size（L×W） m | 2.26×1.15 | 2.26×1.15 | 2.26×1.15 |
Platform horizontal extension m | 0.9 | 0.9 | 0.9 |
Ground clearance m | 0.2 | 0.2 | 0.15 |
Minimum turning radius m | 0 | 0 | 0 |
Travel speed at full retraction km/h | 2 | 2 | 1.8 |
Travel speed when lifting km/h | 0.8 | 0.8 | 0.8 |
Maximum permissible working angle | 1.5°/3° | 1.5°/3° | 1.5°/3° |
Climbing degree | 0.25 | 0.25 | 0.3 |
Lifting motor V/kw | 48/2.2 | 17624 | 17624 |
Battery V/Ah | 4×12/150 | 4×12/150 | 4×12/180 |
Charger V/A | 48/25 | 48/35 | 48/35 |
Crawler specification | 300×72 | 300×72 | 300×72 |
Total mass kg | 2200 | 2500 | 3000 |
| Model | X08T | X10T | X12T |
| Maximum working height m | 10 | 12 | 14 |
| Max. platform height m | 8 | 10 | 12 |
| Platform load capacity kg | 450/120 | 320/120 | 320/120 |
| Length m | 2.36 | 2.4 | 2.41 |
| Width m | 1.26 | 1.27 | 1.39 |
| Height of collection m | 2.47 | 2.62 | 2.72 |
| Height of guardrail after folding m | 1.82 | 1.96 | 2.07 |
| Minimum height of platform m | 1.33 | 1.49 | 1.59 |
| Platform size（L×W） m | 2.26×1.15 | 2.26×1.15 | 2.26×1.15 |
| Platform horizontal extension m | 0.9 | 0.9 | 0.9 |
| Ground clearance m | 0.2 | 0.2 | 0.15 |
| Minimum turning radius m | 0 | 0 | 0 |
| Travel speed at full retraction km/h | 2 | 2 | 1.8 |
| Travel speed when lifting km/h | 0.8 | 0.8 | 0.8 |
| Maximum permissible working angle | 1.5°/3° | 1.5°/3° | 1.5°/3° |
| Climbing degree | 0.25 | 0.25 | 0.3 |
| Lifting motor V/kw | 48/2.2 | 17624 | 17624 |
| Battery V/Ah | 4×12/150 | 4×12/150 | 4×12/180 |
| Charger V/A | 48/25 | 48/35 | 48/35 |
| Crawler specification | 300×72 | 300×72 | 300×72 |
| Total mass kg | 2200 | 2500 | 3000 |
