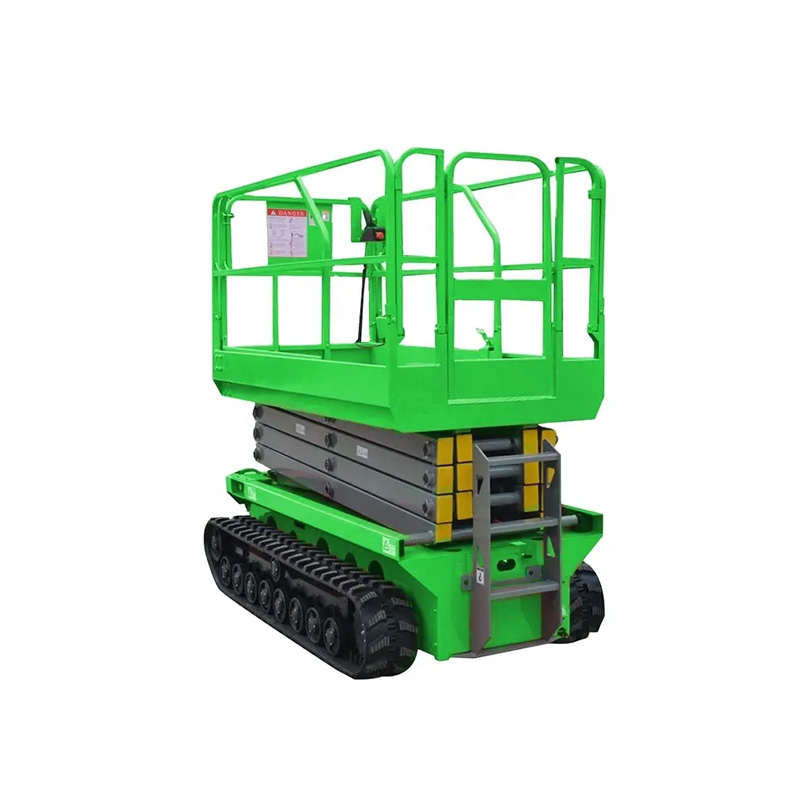

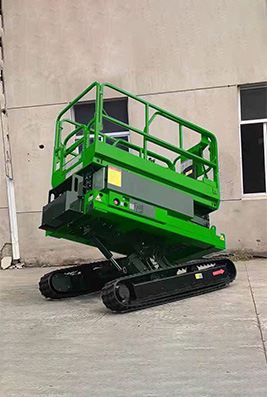

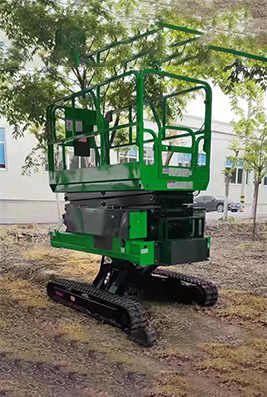

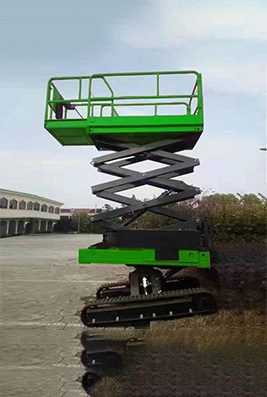

Track-type Automatic Leveling Scissor Lifting Platform
Track-type self-leveling scissor aerial work platform makes many hard and hazardous jobs easier, such as indoor and out-of-door cleansing (ceilings, curtain walls, glass windows, eaves, canopies, chimneys, etc.) set up and upkeep of billboards, set up and upkeep of road lights and site visitors signs, etc. Its compactness, flexibility, and comfort symbolize this aerial carry platform. It can exchange scaffolding with a lifting platform to attain the peak you want and clear up your problems. At the identical time, it can additionally shop you fees and precious time.
Product Features:
(1) Large attitude guidance gadget
This kind of desktop is adopted a giant perspective steerage system, making the computing device wonderful flexibility.
(2) Disc brake system
The laptop adopts a hydraulic disc braking system. When the desktop is in the stopping state, the wheels are continually in the braking state. It can brake reliably when the slope is 6 degrees.
(3) Intelligent charging machine
The platform is outfitted with an utterly computerized charger, which can robotically whole the entire system of charging and will mechanically cease charging after the battery is full.
(4) Extension platform
The platform can be moved out, which expands the working vary and can meet the distinct desires of some users.
Product Parameters:
Model | Z10CA | Z12CA | Z14CA |
Rated load mass | 250kg | 250kg | 250kg |
Max. Platform occupancy | 2 people | ||
Max. Platform height | 8.3m | 10m | 12m |
Max. Working height | 10.3m | 12m | 14m |
Max. platform extension length | 900mm | ||
Length | 2530mm | ||
Width | 1370mm | ||
Width | 1770mm | ||
Height | 2835mm | 2965mm | 3095mm |
Height | 2432mm | 2582mm | 2712mm |
Platform dimensions | 2280×1136×1260mm | ||
Min. turning radius | 2.65m | ||
Minimum ground clearance (low) | 70mm | ||
Wheelbase | 1800mm | ||
Weight | 3398kg | 3698kg | 3998kg |
Working platform raises speed | 51s | 58s | 63s |
Working platform descending speed | 39s | 45s | 51s |
High driving speed | 2-3km/h | ||
Low driving speed | 0.8-1.2km/h | ||
Max. Working angle | 0.36 | ||
Battery | 8 × 6V(200Ah) | ||
Charge | 30A | ||
Tilt warning angle | ±17° Left and right sides | ||
| Model | Z10CA | Z12CA | Z14CA |
| Rated load mass | 250kg | 250kg | 250kg |
| Max. Platform occupancy | 2 people | ||
| Max. Platform height | 8.3m | 10m | 12m |
| Max. Working height | 10.3m | 12m | 14m |
| Max. platform extension length | 900mm | ||
| Length | 2530mm | ||
| Width | 1370mm | ||
| Width | 1770mm | ||
| Height | 2835mm | 2965mm | 3095mm |
| Height | 2432mm | 2582mm | 2712mm |
| Platform dimensions | 2280×1136×1260mm | ||
| Min. turning radius | 2.65m | ||
| Minimum ground clearance (low) | 70mm | ||
| Wheelbase | 1800mm | ||
| Weight | 3398kg | 3698kg | 3998kg |
| Working platform raise speed | 51s | 58s | 63s |
| Working platform descending speed | 39s | 45s | 51s |
| High driving speed | 2-3km/h | ||
| Low driving speed | 0.8-1.2km/h | ||
| Max. Working angle | 0.36 | ||
| Battery | 8 × 6V(200Ah) | ||
| Charge | 30A | ||
| Tilt warning angle | ±17° Left and right sides ±15°/-20°Front and rear | ||
