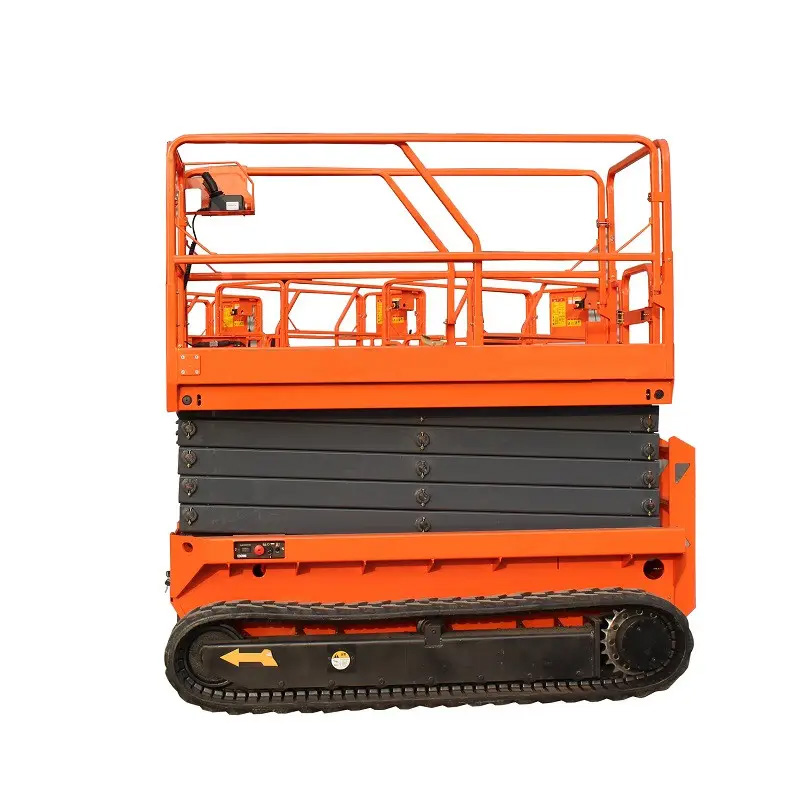

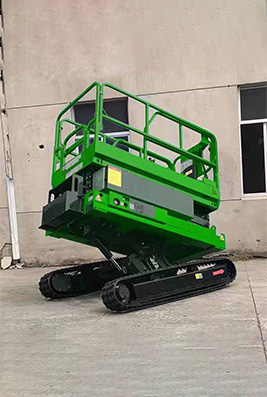

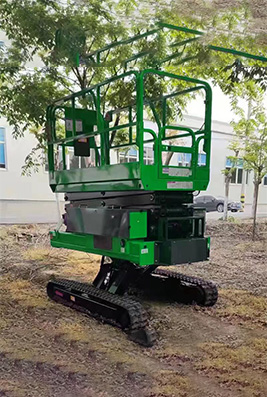

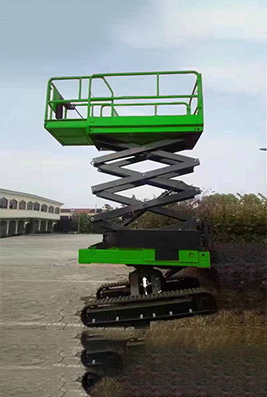

Track-type Automatic Leveling Scissor Aerial Work Platform
Track-type self-leveling scissor aerial work platform makes many hard and hazardous jobs easier, such as indoor and outside cleansing (ceilings, curtain walls, glass windows, eaves, canopies, chimneys, etc.) set up and upkeep of billboards, set up and upkeep of avenue lights and visitors signs, etc. Its compactness, flexibility, and comfort represent this aerial raise platform. It can substitute scaffolding with a lifting platform to attain the peak you want and clear up your problems. At the equal time, it can additionally shop your charges and treasured time.
Product Features:
(1) Overload safety
With the feature of overload protection, it has obligatory safety for personnel who are no longer acquainted with this equipment.
(2) Self-diagnostic characteristic
With self-diagnosis function, clients can rapidly hold close the equipment's personal work fame in time, higher protection of this equipment.
(3) Green environmental safety
Because the computer adopts DC battery power, the computer can be safely and quietly appropriate for indoor or doors work.
(4) Emergency system
The computer is set with an emergency descent system.
Product Parameters:
Model | Z10CA | Z12CA | Z14CA |
Rated load mass | 250kg | 250kg | 250kg |
Max. Platform occupancy | 2 people | ||
Max. Platform height | 8.3m | 10m | 12m |
Max. Working height | 10.3m | 12m | 14m |
Max. platform extension length | 900mm | ||
Length | 2530mm | ||
Width | 1370mm | ||
Width | 1770mm | ||
Height | 2835mm | 2965mm | 3095mm |
Height | 2432mm | 2582mm | 2712mm |
Platform dimensions | 2280×1136×1260mm | ||
Min. turning radius | 2.65m | ||
Minimum ground clearance (low) | 70mm | ||
Wheelbase | 1800mm | ||
Weight | 3398kg | 3698kg | 3998kg |
Working platform raises speed | 51s | 58s | 63s |
Working platform descending speed | 39s | 45s | 51s |
High driving speed | 2-3km/h | ||
Low driving speed | 0.8-1.2km/h | ||
Max. Working angle | 0.36 | ||
Battery | 8 × 6V(200Ah) | ||
Charge | 30A | ||
Tilt warning angle | ±17° Left and right sides | ||
| Model | Z10CA | Z12CA | Z14CA |
| Rated load mass | 250kg | 250kg | 250kg |
| Max. Platform occupancy | 2 people | ||
| Max. Platform height | 8.3m | 10m | 12m |
| Max. Working height | 10.3m | 12m | 14m |
| Max. platform extension length | 900mm | ||
| Length | 2530mm | ||
| Width | 1370mm | ||
| Width | 1770mm | ||
| Height | 2835mm | 2965mm | 3095mm |
| Height | 2432mm | 2582mm | 2712mm |
| Platform dimensions | 2280×1136×1260mm | ||
| Min. turning radius | 2.65m | ||
| Minimum ground clearance (low) | 70mm | ||
| Wheelbase | 1800mm | ||
| Weight | 3398kg | 3698kg | 3998kg |
| Working platform raise speed | 51s | 58s | 63s |
| Working platform descending speed | 39s | 45s | 51s |
| High driving speed | 2-3km/h | ||
| Low driving speed | 0.8-1.2km/h | ||
| Max. Working angle | 0.36 | ||
| Battery | 8 × 6V(200Ah) | ||
| Charge | 30A | ||
| Tilt warning angle | ±17° Left and right sides ±15°/-20°Front and rear | ||
