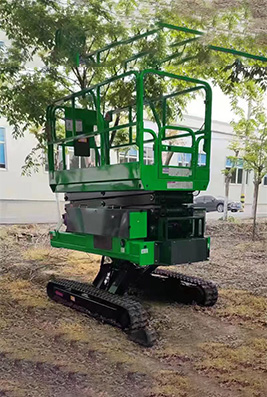

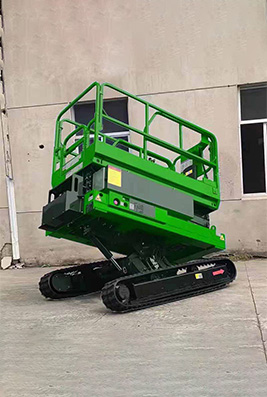

Track-type Self-leveling Scissor Aerial Work Platform
Track-type self-leveling scissor aerial work platform makes many tough and hazardous jobs easier, such as indoor and out-of-door cleansing (ceilings, curtain walls, glass windows, eaves, canopies, chimneys, etc.) set up and preservation of billboards, set up and protection of road lights and visitors signs, etc. Its compactness, flexibility, and comfort represent this aerial raise platform. It can change scaffolding with a lifting platform to attain the peak you want and resolve your problems. At an equal time, it can additionally retail your charges and treasured time.
Product Features:
(1) Safety Safety
The computer is established with a horizontal alarm meter. When the total car tilts extra than three tiers in all directions, the desktop mechanically enters the safety gadget and solely approves the computer to have descending motion to a secure nation earlier than ordinary use. The aerial working platform is outfitted with a protection plate system in the decrease section of the backside truck. As quickly as the platform is raised, the security plates on each facet will be opened in a working situation to make the distance from the floor small to keep away from tipping accidents induced via uneven floor when on foot at height. This kind of aerial working platform is geared up with an oil pipe explosion-proof device at the oil cylinder.
(2) Stepless pace trade
This kind of desktop wants solely one man or woman to operate. All the moves are managed by way of running deals on the working platform. The steplessly variable velocity motor successfully prolongs the carrier existence of the battery and the motor. The motor solely consumes the strength when working.
Product Parameters:
Model | Z10CA | Z12CA | Z14CA |
Rated load mass | 250kg | 250kg | 250kg |
Max. Platform occupancy | 2 people | ||
Max. Platform height | 8.3m | 10m | 12m |
Max. Working height | 10.3m | 12m | 14m |
Max. platform extension length | 900mm | ||
Length | 2530mm | ||
Width | 1370mm | ||
Width | 1770mm | ||
Height | 2835mm | 2965mm | 3095mm |
Height | 2432mm | 2582mm | 2712mm |
Platform dimensions | 2280×1136×1260mm | ||
Min. turning radius | 2.65m | ||
Minimum ground clearance (low) | 70mm | ||
Wheelbase | 1800mm | ||
Weight | 3398kg | 3698kg | 3998kg |
Working platform raises speed | 51s | 58s | 63s |
Working platform descending speed | 39s | 45s | 51s |
High driving speed | 2-3km/h | ||
Low driving speed | 0.8-1.2km/h | ||
Max. Working angle | 0.36 | ||
Battery | 8 × 6V(200Ah) | ||
Charge | 30A | ||
Tilt warning angle | ±17° Left and right sides | ||
| Model | Z10CA | Z12CA | Z14CA |
| Rated load mass | 250kg | 250kg | 250kg |
| Max. Platform occupancy | 2 people | ||
| Max. Platform height | 8.3m | 10m | 12m |
| Max. Working height | 10.3m | 12m | 14m |
| Max. platform extension length | 900mm | ||
| Length | 2530mm | ||
| Width | 1370mm | ||
| Width | 1770mm | ||
| Height | 2835mm | 2965mm | 3095mm |
| Height | 2432mm | 2582mm | 2712mm |
| Platform dimensions | 2280×1136×1260mm | ||
| Min. turning radius | 2.65m | ||
| Minimum ground clearance (low) | 70mm | ||
| Wheelbase | 1800mm | ||
| Weight | 3398kg | 3698kg | 3998kg |
| Working platform raise speed | 51s | 58s | 63s |
| Working platform descending speed | 39s | 45s | 51s |
| High driving speed | 2-3km/h | ||
| Low driving speed | 0.8-1.2km/h | ||
| Max. Working angle | 0.36 | ||
| Battery | 8 × 6V(200Ah) | ||
| Charge | 30A | ||
| Tilt warning angle | ±17° Left and right sides ±15°/-20°Front and rear | ||
