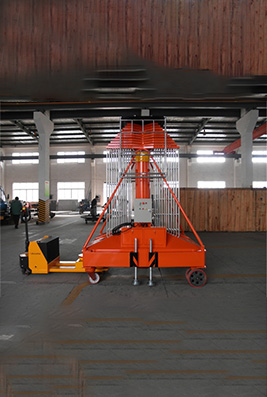

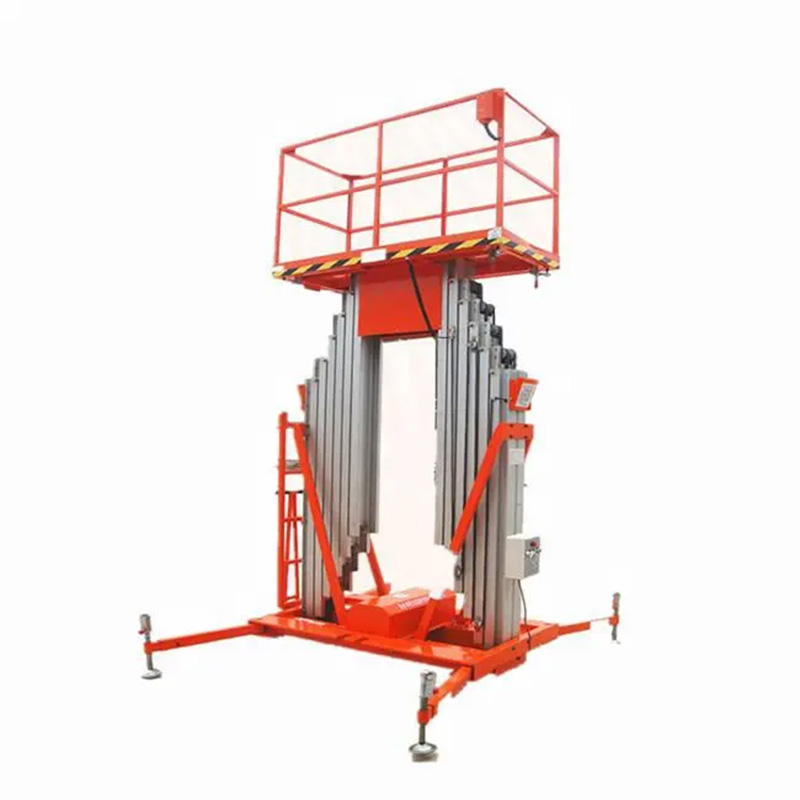

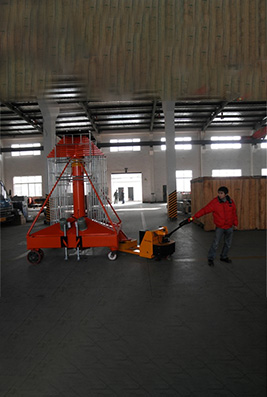

Double Ladder Sleeve Cylinder Type Aerial Work Platform
Jacketed aerial work platform: additionally acknowledged as a jacketed lifting platform, it is a multi-purpose aerial work machine. Its feature is to ship the platform with operators and tools to the unique peak for specific engineering tools for aerial work. This tool is extensively used in industrial and mining workshops, tall halls, warehouses, stations, squares, and high-altitude operations.
The total laptop of the double physique anti-rotation sleeve cylinder kind aerial work platform is composed of a platform, telescopic oil cylinder, single ladder or double ladder anti-rotation mechanism, chassis oil tank, outrigger, strolling wheel, etc. The platform is without delay jacked by means of the telescopic oil cylinder. When the motor is started, the motor drives the tools to pump to provide oil. The oil is enter into the oil cylinder via the one-way valve and the electromagnetic channel, and the telescopic oil cylinder rises area with the aid of a section. When the platform rises to the most height, the gadget strain additionally reaches the rated working pressure. At this time, there is an overflow valve to unload, and the oil stress is maintained at a steady working pressure. After the shutdown, the one-way valve continues the pressure, and the platform stays at the most working position, The platform can remain at any function under the most peak in accordance with the working peak on-site.
Technical Parameters:
Model | GTTY—16B | GTTY—18B | GTTY—20B | GTTY—22B |
Working height(m) | 18 | 20 | 22 | 24 |
Platform height(m) | 16 | 18 | 20 | 22 |
Load capacity(kg) | 200 | 200 | 150 | 150 |
Collection length(m) | 1.68 | 1.78 | 1.85 | 1.97 |
Collection Width(m) | 1.35 | 1.47 | 1.56 | 1.65 |
Collection height(m) | 2.36 | 2.6 | 2.65 | 2.75 |
Platform length(m) | 0.8 | 0.8 | 0.8 | 0.8 |
Platform width(m) | 0.8 | 0.8 | 0.8 | 0.8 |
Height of guardrail(m) | 1 | 1 | 1 | 1 |
Wind resistance (level) | 5 | 5 | 5 | 5 |
Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v | 220/12v |
Motor power (kw) | 1.5 | 1.5 | 1.1x2 | 1.1x2 |
Walking mode | Electric auxiliary traction | Electric auxiliary traction | Electric auxiliary traction | Electric auxiliary traction |
System oil pressure | 12Mpa | 12Mpa | 12Mpa | 12Mpa |
Rise/fall speed (m/s) | 0.02/0.05 | 0.02/0.05 | 0.02/0.05 | 0.02/0.05 |
Operating Weight (kg) | 1350 | 1430 | 1650 | 1700 |
Model | GTTY—24B | GTTY—26B | GTTY—28B | GTTY—30B |
Working height(m) | 26 | 28 | 30 | 32 |
Platform height(m) | 24 | 26 | 28 | 30 |
Load capacity(kg) | 150 | 150 | 120 | 120 |
Collection length(m) | 1.97 | 2.05 | 2.2 | 2.25 |
Collection Width(m) | 1.65 | 1.75 | 1.8 | 1.9 |
Collection height(m) | 2.82 | 3.05 | 3.05 | 3.35 |
Platform length(m) | 0.8 | 0.8 | 0.8 | 0.8 |
Platform width(m) | 0.8 | 0.8 | 0.8 | 0.8 |
Height of guardrail(m) | 1 | 1 | 1 | 1 |
Wind resistance (level) | 4 | 4 | 4 | 4 |
Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v | 220/12v |
Motor power (kw) | 1.1x2 | 1.1x2 | 1.1x2 | 1.1x2 |
Walking mode | Electric auxiliary traction | Electric auxiliary traction | Electric auxiliary traction | Electric auxiliary traction |
System oil pressure | 12Mpa | 12Mpa | 12Mpa | 12Mpa |
Rise/fall speed (m/s) | 0.02/0.05 | 0.02/0.05 | 0.02/0.05 | 0.02/0.05 |
Operating Weight (kg) | 2200 | 2450 | 2500 | 2800 |
