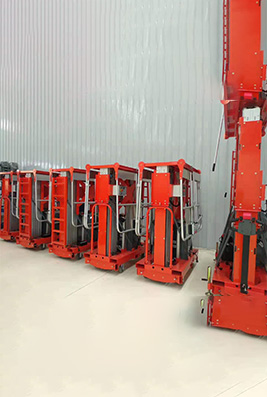

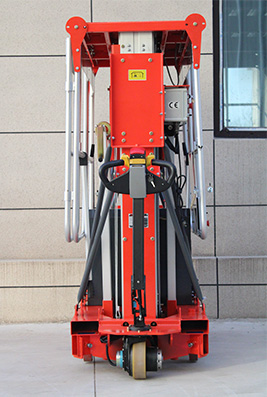

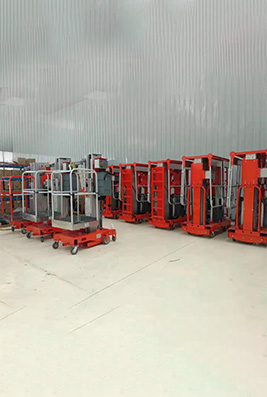

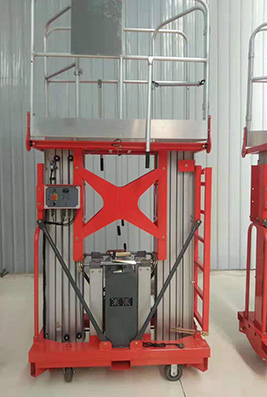

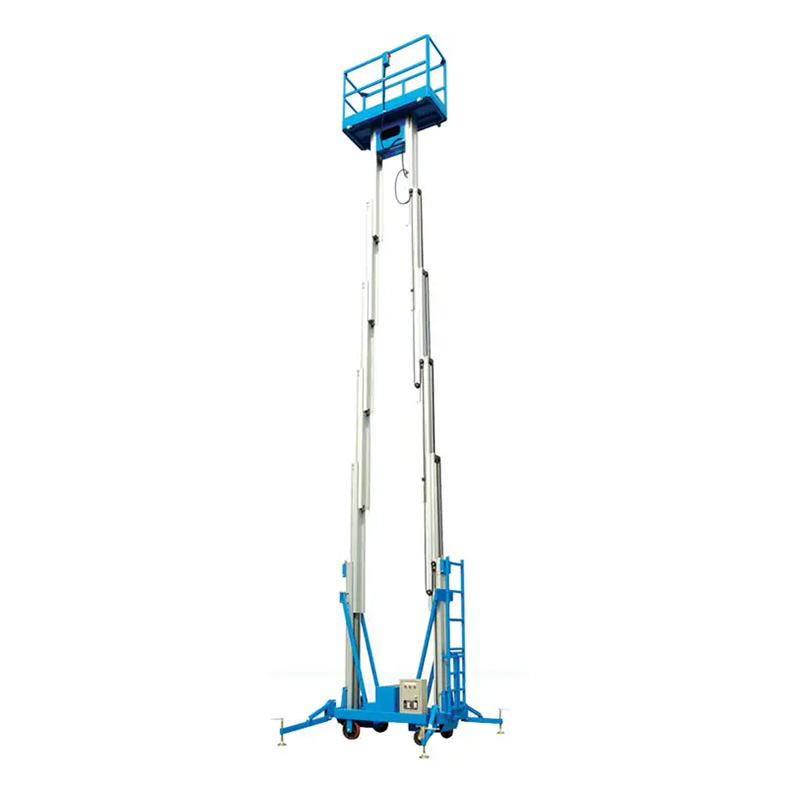

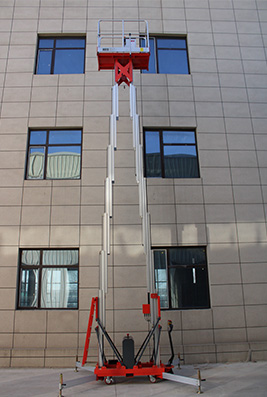

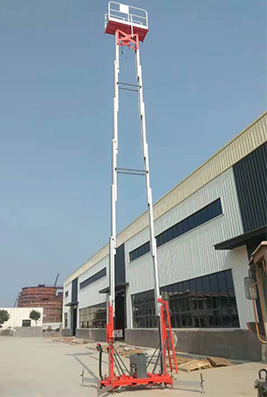

Double Mast Aluminum Alloy Lifting Machine
The rate of the twin mast aluminum alloy lifting platform collection is 50% more cost-effective than that of the growth kind lifting platform. In addition to the low price, the flexibility of the twin raise platform sequence in slender passages allows it to whole many duties that can't be carried out by means of the growth kind lifting platform. It can be operated by using one or two persons. The broad platform offers an adequate area for operators to work and area tools. It has the most inflexible lifting mast system, which is characterized by: a high-strength aluminum alloy mast, interlocking system, retractable mast and high-strength lifting chain with a security issue higher than 10:1, and a metal wire protection safety machine that can be used to beautify power and reliability and facilitate maintenance. Its welded high-strength metal base is appropriate for harsh working environments.
Product Application:
The twin mast aluminum alloy lifting platform has a stunning appearance, is small in size, lightweight, bendy and handy operation; It up and down two units of managed lifting systems, secure lifting, secure and is reliable. It is relevant to the repair, renovation and cleaning of buying malls, hotels, restaurants, indoor decoration, exhibitions, area mild lines, pipelines, doorways and windows, as properly as area operations in workshops with slim areas or spaces. It is the best-lifting computer and is welcomed by the majority of users.
Product Features:
Double mast aluminum alloy lifting platform The double mast aluminum alloy lifting platform is a special product of our company. It is pushed by means of electro-hydraulic transmission, secure and reliable. The most working top can attain 18 meters, and the most load is about 200 kg. It is a new kind of product that desires to enter the format of regular passenger lifts. It has the traits of compact size, safety, firmness, and ease of use. Its high-quality and overall performance exceeds JC5099-1998, JG/T5103-1998 doors, CE and different security requirements in all aspects.
Technical Parameters:
Model | GTWY2-6 | GTWY2-8 | GTWY2-10 |
Working height（m） | 8 | 10 | 12 |
Platform height（m） | 6 | 8 | 10 |
Load capacity(kg) | 250 | 250 | 250 |
Collection length（m） | 1.45 | 1.45 | 1.45 |
Collection Width（m） | 0.81 | 0.81 | 0.81 |
Collection height（m） | 1.99 | 1.99 | 1.99 |
Platform length（m） | 1.45 | 1.45 | 1.45 |
Platform width（m） | 0.7 | 0.7 | 0.7 |
Height of guardrail（m） | 1 | 1 | 1 |
Outrigger expansion size（m） | 2.45x1.75 | 2.45x1.75 | 2.45x2.1 |
Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
Motor power (kw) | 1.5/2.2kw | 1.5/2.2kw | 1.5/2.2kw |
Walking mode | Manpower implementation | Manpower implementation | Manpower implementation |
Maximum allowable wind speed during operation | 12.5m/s | 12.5m/s | 12.5m/s |
System oil pressure | 12Mpa | 12Mpa | 12Mpa |
Rise/fall speed (m/s) | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
Operating Weight (kg) | 610/660 | 645/695 | 715/765 |
Model | GTWY2-12 | GTWY2-14 | GTWY2-16 |
Working height（m） | 12 | 16 | 18 |
Platform height（m） | 10 | 14 | 16 |
Load capacity(kg) | 200 | 200 | 150 |
Collection length(m) | 1.45 | 1.88 | 1.88 |
Collection Width（m） | 0.81 | 0.81 | 0.81 |
Collection height（m） | 1.99 | 2.68 | 2.68 |
Platform length（m） | 1.45 | 1.8 | 1.8 |
Platform width（m） | 0.7 | 0.7 | 0.7 |
Height of guardrail（m） | 1 | 1 | 1 |
Outrigger expansion size（m） | 2.45x2.1 | 2.7x2.8 | 2.7x2.8 |
Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
Motor power (kw) | 1.5/2.2kw | 1.5/2.2kw | 1.5/2.2kw |
Walking mode | Manpower implementation | Manpower implementation | Manpower implementation |
Maximum allowable wind speed during operation | 12.5m/s | 12.5m/s | 12.5m/s |
System oil pressure | 12Mpa | 12Mpa | 12Mpa |
Rise/fall speed (m/s)） | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
Operating Weight (kg) | 750/800 | 892/942 | 996/1046 |
