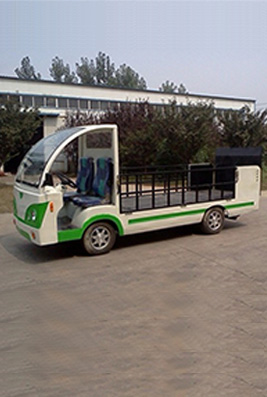

Electric Transfer Vehicle
EVB sequence electric-powered trolley is a transport and managing car appropriate for many industries such as aerospace, metallurgy, equipment manufacturing, petrochemical, meals processing and electric-powered strength production. The new patented product designed via our agency is designed in accordance with ergonomics, the auto-mobile physique adopts a longitudinal DC motor, the most working modern-day is three instances of rated current, the most output torque is 4.5 instances of rated torque so that the car has foremost acceleration overall performance and hiking ability.
In addition, the car management device adopts the American Curtis high-frequency pace controller, which makes the vehicle without a doubt realize Stepless variable pace exchange and particular driving. The superior shape of the manipulating unit ensures that the automobile has low strength consumption, lengthy lifestyles and very little maintenance, as a result making the automobile have an excessive economy. The shape is compact, stable and reliable. The front and rear axles are geared up with a shock absorber that reduces the driver's pain when used on tough roads.
Application:
The electric-powered truck is broadly used in many industries such as aerospace, metallurgy, equipment manufacturing, petrochemical, meals processing and electric-powered energy production. Our business enterprise can be modified or personalized in accordance with client necessities on the groundwork of this sequence of models.
Product Features:
(1) Good adaptability to street surfaces and robust anti-bumping ability.
(2) Easy and comfy handling.
(3) Low strength consumption, low noise, excessive economy.
(4) Beautiful appearance, compact structure, strong and reliable.
Technical Parameters:
Electric control | High with controller |
Battery | Battery 6 volt 180A (8 pieces) |
Motor | 48-volt brush DC series excitation 3kW motor |
Charger | Electric intelligent DC charger |
Charging time | 6-8 hours (discharge rate of 80%) |
Seat | High-grade leather fabric seat |
Body | SPCC steel plate, ABS engineering plastic molding parts |
Instrument panel | Electronic instrument panel |
Rearview Mirror | One manual type outside rearview mirror on each side |
Lights | Headlights, front and rear turn signals, combined rear tail lights |
Signal | Electric horn and reverse buzzer |
Frame spraying | Microcar chassis optimization. Phosphate treatment, electrostatic |
Paint | The whole car adopts advanced acid washing and phosphating electrostatic spraying process. |
Drive train | Infinitely variable speed control system |
Steering System | Worm gear type steering machine |
Transmission | Shaft drive |
Shaft drive | Integral differential rear axle, |
Rear Axle | Oil brake drum brake |
Tires | 650-10 |
Rated occupancy | 2 people |
Dimension L*W*H | 3500*1400*1300 |
Dimension of cargo box L*W*H | 2200*1400*280 |
Overall load | 2T |
Overall weight | 800KG |
Wheelbase | 2.2M |
Minimum ground clearance | 0.18M |
Braking distance | ≤2M |
Charging input voltage | 220V |
Maximum driving speed | 30KM/H |
Range (full load) | 80KM |
Max. climbing degree (full load) | 0.25 |
Min. turning radius | 4.5 M |
