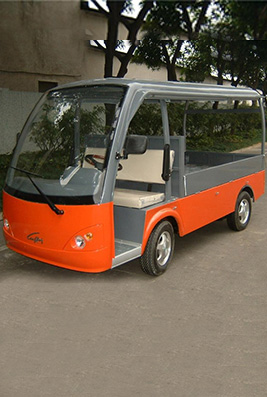

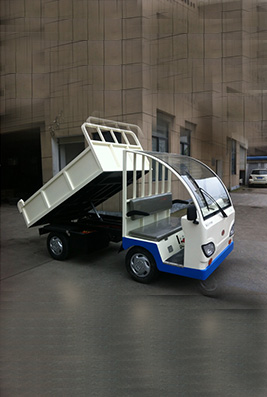

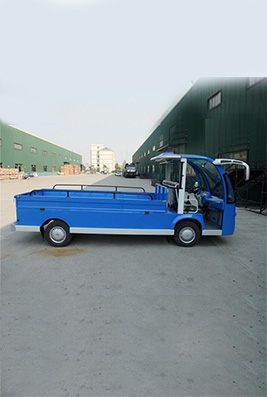

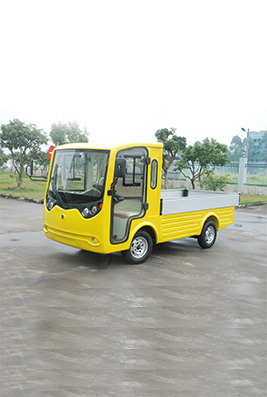

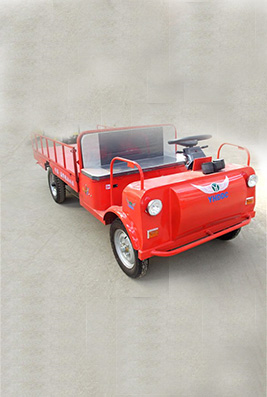

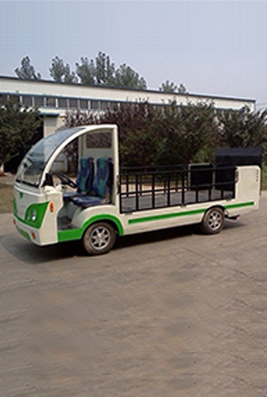

EVB Series Electric Trolley
EVB series electric trolley is a transport and handling vehicle suitable for many industries such as aerospace, metallurgy, machinery manufacturing, petrochemical, food processing and electric power production. The new patented product designed by our company is designed according to ergonomics, the vehicle body adopts longitudinal DC motor, the maximum working current is 3 times of rated current, the maximum output torque is 4.5 times of rated torque, so that the vehicle has superior acceleration performance and climbing ability. In addition, the vehicle control system adopts the American Curtis high-frequency speed controller, which makes the car truly realize Stepless variable speed change and precise driving. The advanced structure of the control unit ensures that the vehicle has low energy consumption, long life and very little maintenance, thus making the vehicle have high economy. The structure is compact, solid and reliable. The front and rear axles are equipped with a shock absorber that reduces the driver's discomfort when driving on rough roads.
Application:
The electric truck is widely used in many industries such as aerospace, metallurgy, machinery manufacturing, petrochemical, food processing and electric power production. Our company can be modified or customized according to customer requirements on the basis of this series of models.
Product Features:
(1) Good adaptability to road surfaces and strong anti-bumping ability.
(2) Easy and comfortable handling.
(3) Low energy consumption, low noise, high economy.
(4) Beautiful appearance, compact structure, solid and reliable.
Technical Parameters:
Electric control | High with controller |
Battery | Battery 6 volt 180A (8 pieces) |
Motor | 48-volt brush DC series excitation 3kW motor |
Charger | Electric intelligent DC charger |
Charging time | 6-8 hours (discharge rate of 80%) |
Seat | High-grade leather fabric seat |
Body | SPCC steel plate, ABS engineering plastic molding parts |
Instrument panel | Electronic instrument panel |
Rearview Mirror | One manual type outside rearview mirror on each side |
Lights | Headlights, front and rear turn signals, combined rear tail lights |
Signal | Electric horn and reverse buzzer |
Frame spraying | Microcar chassis optimization. Phosphate treatment, electrostatic |
Paint | The whole car adopts advanced acid washing and phosphating electrostatic spraying process. |
Drive train | Infinitely variable speed control system |
Steering System | Worm gear type steering machine |
Transmission | Shaft drive |
Shaft drive | Integral differential rear axle, |
Rear Axle | Oil brake drum brake |
Tires | 650-10 |
Rated occupancy | 2 people |
Dimension L*W*H | 3500*1400*1300 |
Dimension of cargo box L*W*H | 2200*1400*280 |
Overall load | 2T |
Overall weight | 800KG |
Wheelbase | 2.2M |
Minimum ground clearance | 0.18M |
Braking distance | ≤2M |
Charging input voltage | 220V |
Maximum driving speed | 30KM/H |
Range (full load) | 80KM |
Max. climbing degree (full load) | 0.25 |
Min. turning radius | 4.5 M |
