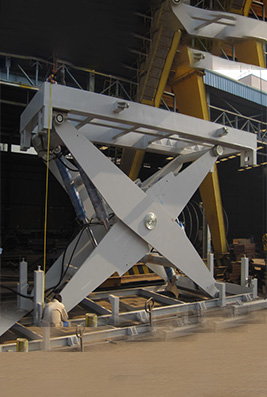

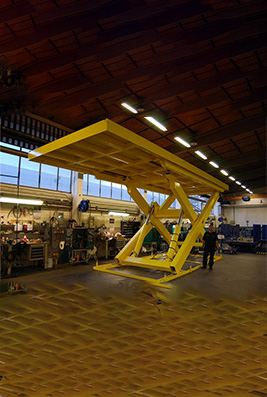

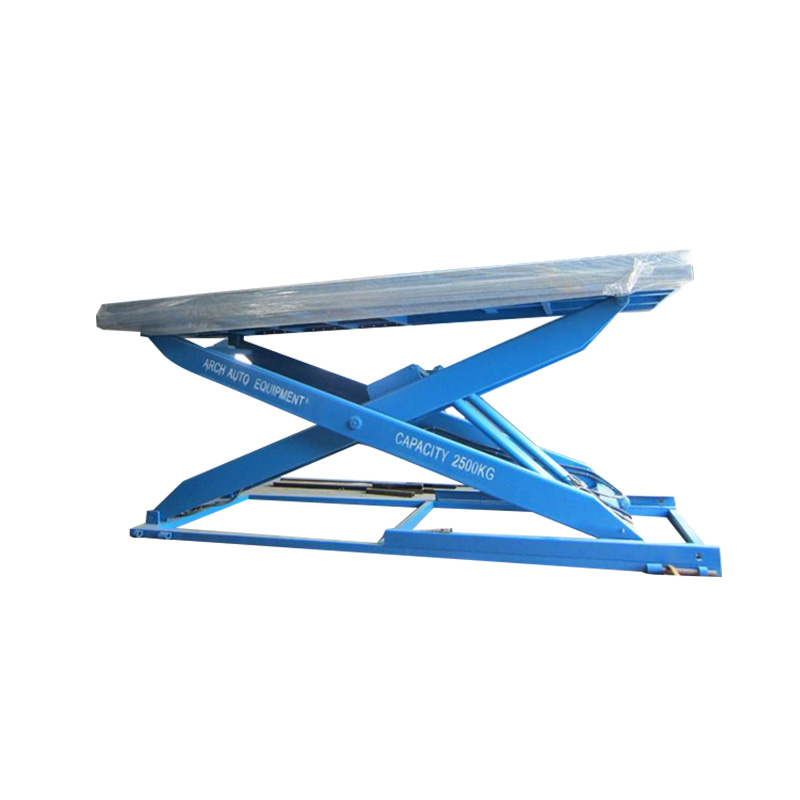

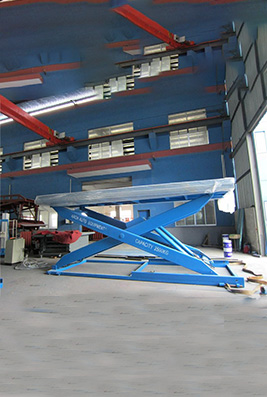

Fixed Scissor Lift Platform
Fixed scissor elevate platform, additionally regarded as scissor elevate platform, belongs to the constant carry platform.It is normally in accordance to the consumer necessities plan and manufacture, most mounted in the pit, stacked fall nation and the floor level, handy for taking walks does no longer impede traffic. Table dimension is designed in accordance to the proper necessities of customers.Load tonnage: 1-100 tons, lifting height: 1-20 meters.
Application:
Fixed scissor carry platform for up and down control, electric powered lifting, so that the aerial work is safer and greater efficient. Equipment is broadly used in manufacturing lines, warehouses, purchasing malls, parking lots, households and different industries. According to the use of requirements, can be configured with ancillary devices, any combination, such as: constant elevate protection guards, electrical manipulate mode, the shape of the working platform, electricity form, etc.
Product Parameters:
Model | SJG1.0-4 | SJG1.0-6 | SJG1.0-8 |
Platform net lifting height (m) | 4 | 6 | 8 |
Height of equipment itself (m) | 0.55 | 0.7 | 0.85 |
Load capacity (kg) | 1000 | 1000 | 1000 |
Collection length (m) | 2.5 | 2.5 | 2.5 |
Collection width (m) | 2 | 2 | 2 |
Collection height (m) | 0.55 | 0.7 | 0.85 |
Table length (m) | 2.5 | 2.5 | 2.5 |
Table width (m) | 2 | 2 | 2 |
Guardrail height (m) | 1 | 1 | 1 |
Voltage (V) AC/DC | 380/12 | 380/12 | 380/12 |
Motor power (kW) | 3 | 3 | 3 |
Ascending / descending | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
Weight of the whole machine (kg) | 800 | 1100 | 1400 |
| Model | SJG1.0-4 | SJG1.0-6 | SJG1.0-8 |
| Platform net lifting height (m) | 4 | 6 | 8 |
| Height of equipment itself (m) | 0.55 | 0.7 | 0.85 |
| Load capacity (kg) | 1000 | 1000 | 1000 |
| Collection length (m) | 2.5 | 2.5 | 2.5 |
| Collection width (m) | 2 | 2 | 2 |
| Collection height (m) | 0.55 | 0.7 | 0.85 |
| Table length (m) | 2.5 | 2.5 | 2.5 |
| Table width (m) | 2 | 2 | 2 |
| Guardrail height (m) | 1 | 1 | 1 |
| Voltage (V) AC/DC | 380/12 | 380/12 | 380/12 |
| Motor power (kW) | 3 | 3 | 3 |
| Ascending / descending speed m/ s | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
| Weight of the whole machine (kg) | 800 | 1100 | 1400 |
