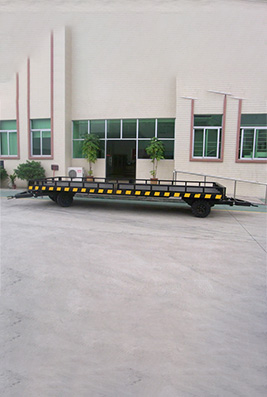

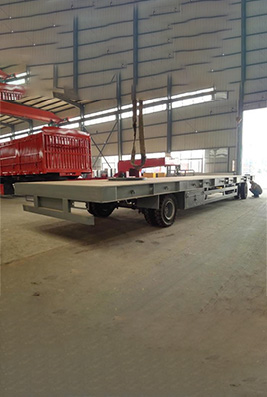

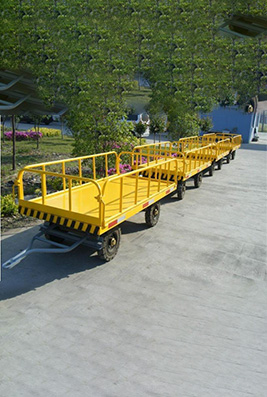

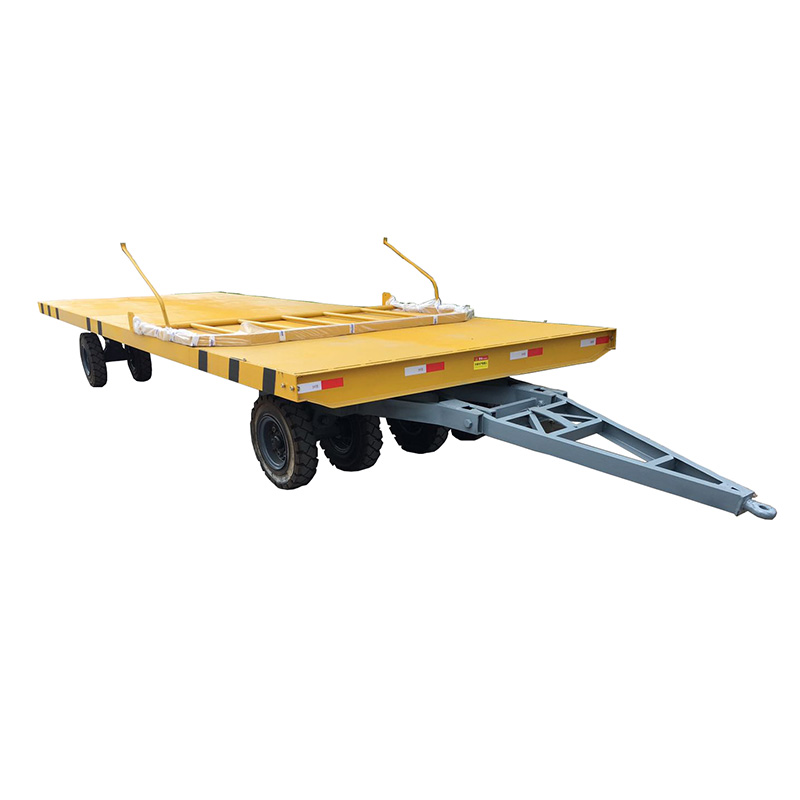

Handle Equipment Flatbed Trailer
Flatbed trailer is a kind of transportation and handling equipment used with tractor and forklift. It has the advantages of low loading platform, large loading area, flexible and stable turntable, easy to dismantle and install the support rail, small turning radius, safety and reliability, etc. Our company has its own intellectual property rights and utility model technology, and can design and manufacture all kinds of flatbed trailers according to the actual needs of customers.
Product Features:
Flatbed trailers generally use pneumatic or solid tires, with low board height, large loading capacity, no risk of tire breakage or blowout, safe, simple and durable. It is a kind of short-distance transportation and handling equipment with tractor, forklift, etc., optional small radius double bridge steering; Our own intellectual property rights, new practical technology, front and rear axle linkage turning mechanism for flatbed trailers. This flatbed trailer is mainly used in small field turning, turning radius is 60% smaller than the traditional car, high cost performance, is the ideal equipment for storage logistics, factory warehouse places.
Product Parameters:
Unit | PT-1.0 | PT—5.0 | PT—10 | PT—15 | PT—20 | PT—30 | |
Table size | m | 2.0*1.5 | 3.0*1.5 | 4.0*2.0 | 5.0*2.2 | 6.0*2.5 | 7.0*3.0 |
Overall Dimension | m | 2.9*1.5*0.4 | 3.9*1.5*0.5 | 4.9*2.0*0.7 | 5.9*2.2*0.8 | 6.9*2.5*0.9 | 7.9*3.0*1.0 |
Rated load | kg | 1000 | 5000 | 10000 | 15000 | 20000 | 30000 |
Equipment height | m | 0.4 | 0.5 | 0.7 | 0.8 | 0.9 | 1 |
Overall machine mass | kg | 2350 | 2500 | 2650 | 2800 | 3000 | 3200 |
Wheelbase | m | 1.2 | 1.2 | 1.6 | 1.8 | 2 | 2.5 |
Wheelbase | m | 1.5 | 2.4 | 3.3 | 4.2 | 5.1 | 6 |
Turning radius | m | 2 | 3 | 4 | 5 | 6 | 7 |
Swivel angle | degree | 180 | |||||
Ground clearance of hook | m | 0.1 | |||||
| Unit Model Item | PT-1.0 | PT—5.0 | PT—10 | PT—15 | PT—20 | PT—30 | |
| Table size | m | 2.0*1.5 | 3.0*1.5 | 4.0*2.0 | 5.0*2.2 | 6.0*2.5 | 7.0*3.0 |
| Overall Dimension | m | 2.9*1.5*0.4 | 3.9*1.5*0.5 | 4.9*2.0*0.7 | 5.9*2.2*0.8 | 6.9*2.5*0.9 | 7.9*3.0*1.0 |
| Rated load | kg | 1000 | 5000 | 10000 | 15000 | 20000 | 30000 |
| Equipment height | m | 0.4 | 0.5 | 0.7 | 0.8 | 0.9 | 1 |
| Overall machine mass | kg | 2350 | 2500 | 2650 | 2800 | 3000 | 3200 |
| Wheelbase | m | 1.2 | 1.2 | 1.6 | 1.8 | 2 | 2.5 |
| Wheelbase | m | 1.5 | 2.4 | 3.3 | 4.2 | 5.1 | 6 |
| Turning radius | m | 2 | 3 | 4 | 5 | 6 | 7 |
| Swivel angle | degree | 180 | |||||
| Ground clearance of hook | m | 0.1 | |||||
