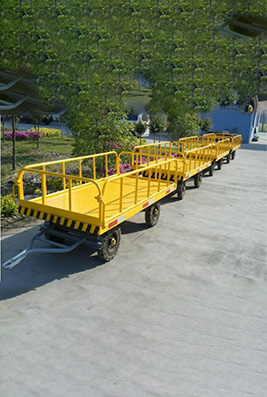

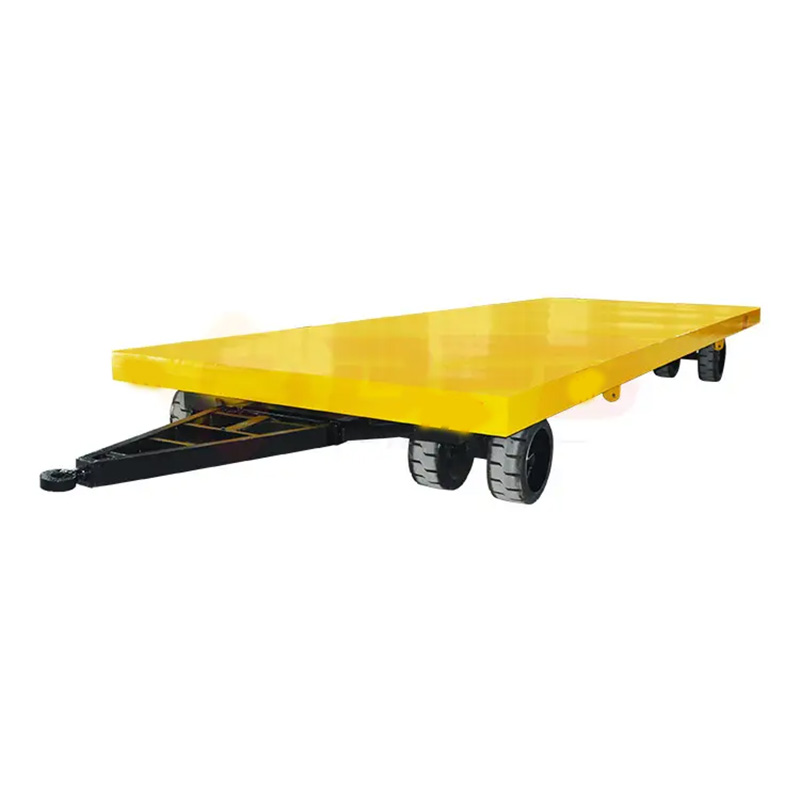

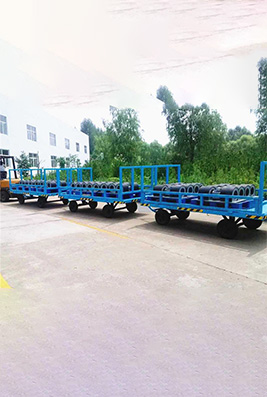

Transport Machine Flatbed Trailer
Flatbed trailer is a sort of transportation and coping with tools used with tractor and forklift. It has the blessings of low loading platform, giant loading area, bendy and steady turntable, convenient to dismantle and deploy the help rail, small turning radius, security and reliability, etc. Our corporation has its very own mental property rights and utility mannequin technology, and can sketch and manufacture all types of flatbed trailers in accordance to the authentic wishes of customers.
Product Features:

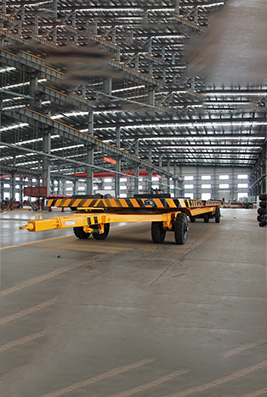

Flatbed trailers commonly use pneumatic or strong tires, with low board height, giant loading capacity, no hazard of tire breakage or blowout, safe, easy and durable. It is a type of short-distance transportation and dealing with tools with tractor, forklift, etc., non-compulsory small radius double bridge steering; Our very own mental property rights, new sensible technology, the front and rear axle linkage turning mechanism for flatbed trailers. This flatbed trailer is in general used in small discipline turning, turning radius is 60% smaller than the normal car,excessive value performance, is the perfect tools for storage logistics, manufacturing unit warehouse places.
Product Parameters:
Unit | PT-1.0 | PT—5.0 | PT—10 | PT—15 | PT—20 | PT—30 | |
Table size | m | 2.0*1.5 | 3.0*1.5 | 4.0*2.0 | 5.0*2.2 | 6.0*2.5 | 7.0*3.0 |
Overall Dimension | m | 2.9*1.5*0.4 | 3.9*1.5*0.5 | 4.9*2.0*0.7 | 5.9*2.2*0.8 | 6.9*2.5*0.9 | 7.9*3.0*1.0 |
Rated load | kg | 1000 | 5000 | 10000 | 15000 | 20000 | 30000 |
Equipment height | m | 0.4 | 0.5 | 0.7 | 0.8 | 0.9 | 1 |
Overall machine mass | kg | 2350 | 2500 | 2650 | 2800 | 3000 | 3200 |
Wheelbase | m | 1.2 | 1.2 | 1.6 | 1.8 | 2 | 2.5 |
Wheelbase | m | 1.5 | 2.4 | 3.3 | 4.2 | 5.1 | 6 |
Turning radius | m | 2 | 3 | 4 | 5 | 6 | 7 |
Swivel angle | degree | 180 | |||||
Ground clearance of hook | m | 0.1 | |||||
