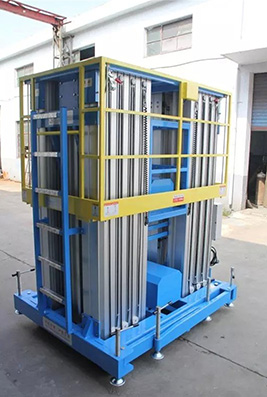

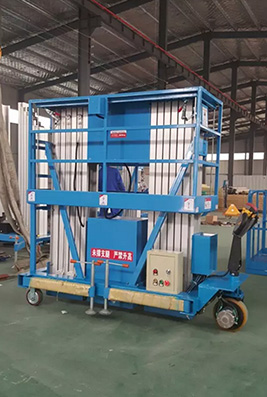

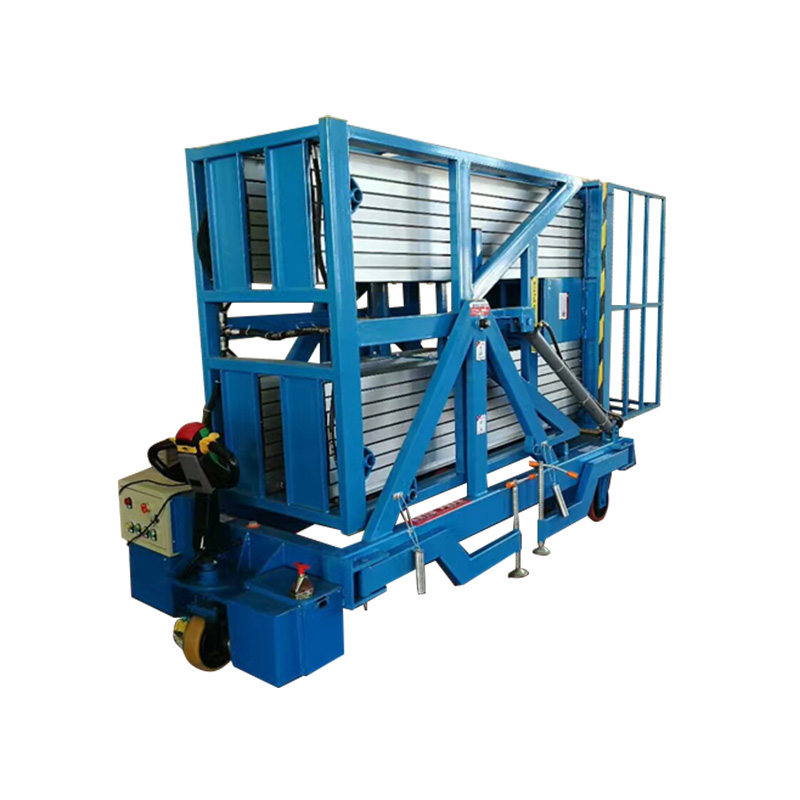

Four-mast Aluminum Alloy Lifting Platform
The four-mast aluminum alloy lifting platform collection has the most inflexible lifting mast system, which features: a high-strength aluminum alloy mast, interlocking system, retractable column and high-strength lifting double chain with a security thing of 10:1, and a metal wire protection safety machine on hand to toughen the energy and reliability of overall performance and its welded high-strength metal base is appropriate for harsh working environment.
Application:
Four mast aluminum alloy lifting platform ,with lovely appearance, small size, mild weight, flexible and handy operation; up and down two units of manage lifting system, lifting smoothly, secure and reliable. Suitable for buying malls, hotels, restaurants, indoor decoration,exhibtion,area mild line, pipeline, doorways and home windows repair, protection and cleaning,appropriate for vicinity or area slender workshop area operations ,is the perfect lifting machinery, welcomed by way of the majority of users.
Product Features:
Four mast lift, appropriate for aerial work that different lifts can now not reach, the most working peak of up to 20 meters, the most load of about 200KG, clean operation, protected and sturdy, outfitted with a hydraulic flip body for popular get right of entry to door access.
Technical Parameters:
Model | GTWY4-14S | GTWY4-15S | GTWY4-16S | GTWY4-18S |
Working height（m） | 16 | 17 | 18 | 20 |
Platform height（m） | 14 | 15 | 16 | 18 |
Load capacity(kg) | 200 | 200 | 200 | 200 |
Collection length(m) | 2.1 | 2.1 | 2.1 | 2.1 |
Collection Width（m） | 1.2 | 1.2 | 1.2 | 1.2 |
Collection height（m） | 2.32 | 2.52 | 2.67 | 2.85 |
Platform length（m） | 1.6 | 1.6 | 1.6 | 1.6 |
Platform width（m） | 0.8 | 0.8 | 0.8 | 0.8 |
Height of guardrail（m） | 1 | 1 | 1 | 1 |
Outrigger expansion size（m） | 2.40x2.0 | 2.70x2.40 | 2.95x2.70 | 3.10x2.90 |
Voltage (v) AC/DC | 220v | 220v | 220v | 220v |
Motor power (kw) | 2.2kw | 2.2kw | 2.2kw | 2.2kw |
Walking mode | Manpower implementation | Manpower implementation | Manpower implementation | Manpower implementation |
Maximum allowable wind speed during operation | 12.5m/s | 12.5m/s | 12.5m/s | 12.5m/s |
System oil pressure | 12Mpa | 12Mpa | 12Mpa | 12Mpa |
Rise/fall speed (m/s)） | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
Operating Weight (kg) | 1250 | 1350 | 1450 | 1550 |
