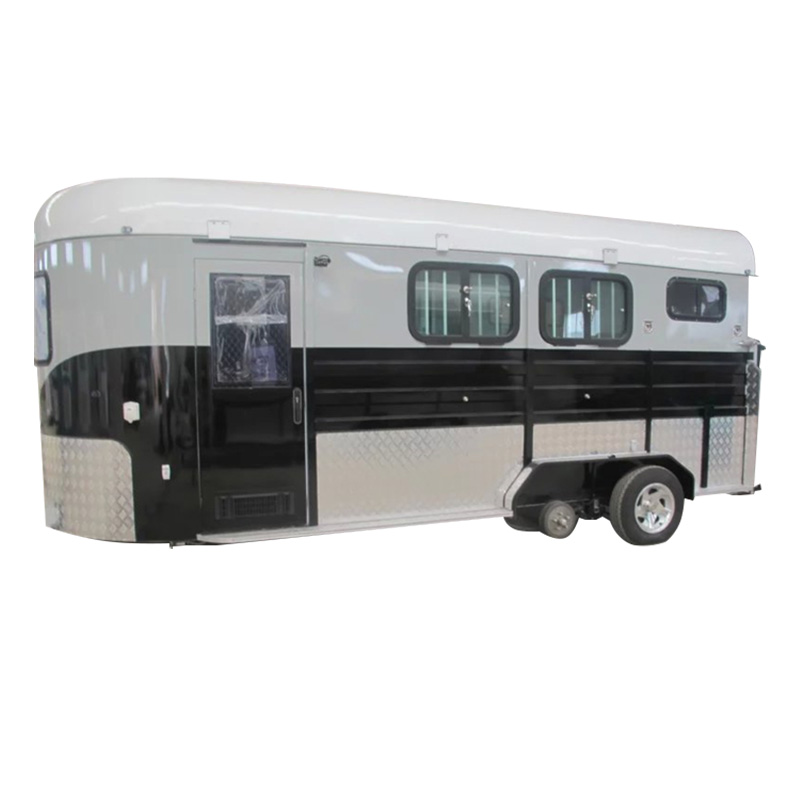

Two-horse Tilt Load Horse Trailer

Jinan Fei Li Xi Machinery Equipment Co., Ltd, is an expert manufacturing enterprise with ten years' ride in horse trailer production. In the manufacturing manner of the horse carriage, our employer strictly abides by Australian enterprise standards. Now the major merchandise is horse carriages, gooseneck carriages, journey carriages, canine trailers, speedy meals carriages, etc.; in addition, we can increase personalized in accordance to the exceptional necessities of customers. (Can be designed and made in accordance with consumer requirements)

Contact Now E-Mail Telephone WhatsApp
Product Details

Technical Parameters:
Number of transported horses:2 horses External dimensions: 4970*2230*2590mm Body size: 4120*1980*2230mm
Internal dimensions: 4095*1930*2155mm Total most load: 2400KG
Model: 2HAL-D, 2-horse tilt load horse trailer luxurious models
Body: galvanized metal plate welded shape + galvanized metal pipe skeleton
Roof: 4mm gel coat fiberglass
Floor: 18 mm water-proof plywood + 9 mm thick non-slip gorgeous rubber sheet Side wall: plywood + 6mm thick amazing rubber sheet
Brake: electromagnetic drum brake, rear axle with brake Connector: 50 mm with handbrake
Rated horse load: two horses
Electrical plug: 7-prong flat plug or 7-prong spherical plug
Wheels: 195/70R15C, four + 1 spare tire, iron rims with 5 or 6 holes Suspension system: 6 spring metal plates, four sets
Axle: two 50*50 strong rectangular axles
Rear flap door: plywood + new anti-slip rubber sheet, 1600*1220mm Aluminum trim panel: the front encompasses and wheel cover
Side door: 1 1650*600mm Side toolbox: 1
Guardrail: galvanized plastic spraying plus top-notch PVC smooth padding tailgate guardrail
Spring tethering hook: two interiors for the car, two backyards for the car
Window: 1 The front window of aluminum alloy with plastic spraying, four facet home windows of aluminum alloy with plastic spraying
Body weight: 1250kgs Maximum load weight: 1800kgs
Horse safety area: 2500*700mm

Two-horse Tilt Load Horse Trailer Two-horse Tilt Load Horse Trailer Two-horse Tilt Load Horse Trailer
