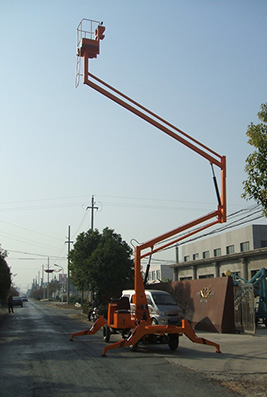

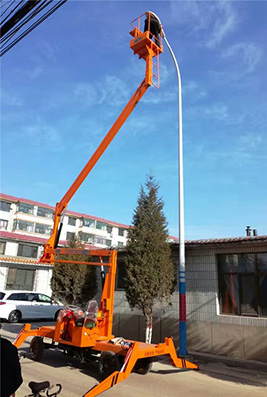

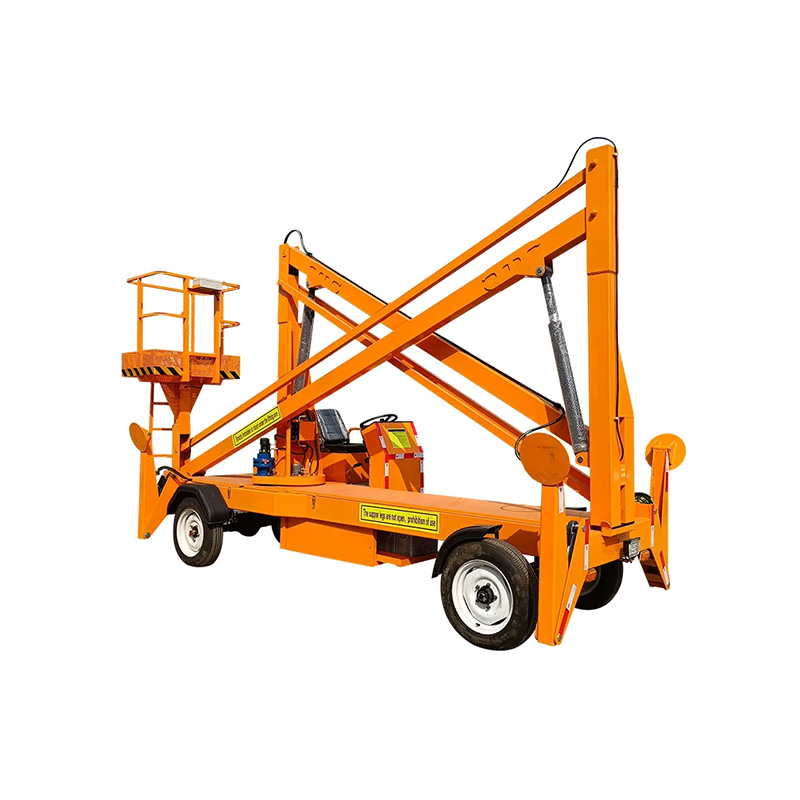

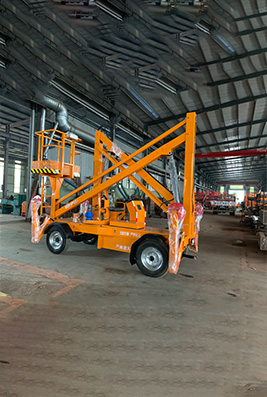

Self-propelled Curved-arm Lifting Platform
The self-propelled curved-arm lifting platform, additionally regarded as the folding-arm lifting platform, belongs to the boom-type lifting platform and is a vertical, scissor-elevated choice product. The computing device makes use of a diesel engine as the power, plus the battery makes use of an electric powered start, self-supporting legs, self-lifting, self-lifting 360 ° rotation operation.
Product Features:
Self-propelled curved-arm lifting platform with easy operation, handy to use, giant running surface, especially capable to hover operations, throughout a sure impediment or raise in one place, can be a giant vary of multi-point lifting operations, significantly enhancing the effectivity of work. Self-propelled curved-arm lifting systems are a vast variety of aerial work distinctive equipment. The tools are the increased structure, hydraulic lifting, and prolonged operations, with a giant running radius, the complete computing device has an excessive diploma of adaptability and is appropriate for suspension throughout operations. It is appropriate for supermarkets, hospitals, restaurants, workshop items switch, and different industries. In addition, the right desire for a range of configurations of these tools can maximize the feature of the lifting platform and reap the fine-use effect. The gear is extensively used no longer solely to make the aerial work a wider range,and radically enhance the running efficiency, in municipal, electric powered power, avenue lights, roads, docks, advertising, gardening, neighborhood property, factories and mining agencies workshops and different industries aerial work, crucial lifting equipment.
Technical Parameters:
Unit | SQP T-10 | SQPT-1 1 | SQPT-12 | SQPT-13 | SQPT-1 4 | SQPT-15 | |
Operating height | M | 10 | 11 | 12 | 13 | 14 | 15 |
Lifting height | M | 8.5 | 9.5 | 10.5 | 11.5 | 12.5 | 13.5 |
Rated load | Kg | 200 | 200 | 200 | 200 | 200 | 200 |
Power supply voltage | V | 380-220 | 12V | 12V | 12V | 12V | 12V |
Overall machine mass | Kg | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
External | M | 3000*1300*2600 | 3200*1500*2700 | 3500*1700*2800 | 3800*1900*2900 | 4800*2000*3000 | 5100*2200*31 |
Maximum working radius | M | 2.2 | 2.6 | 3 | 3.4 | 3.8 | 4.2 |
Lifting speed | M/s | 0.04-0.07 | |||||
Working pressure | Mpa | 8 | |||||
Wind resistance | ≤5 levels | ||||||
Traveling speed | Km/h | 15-20 km |
