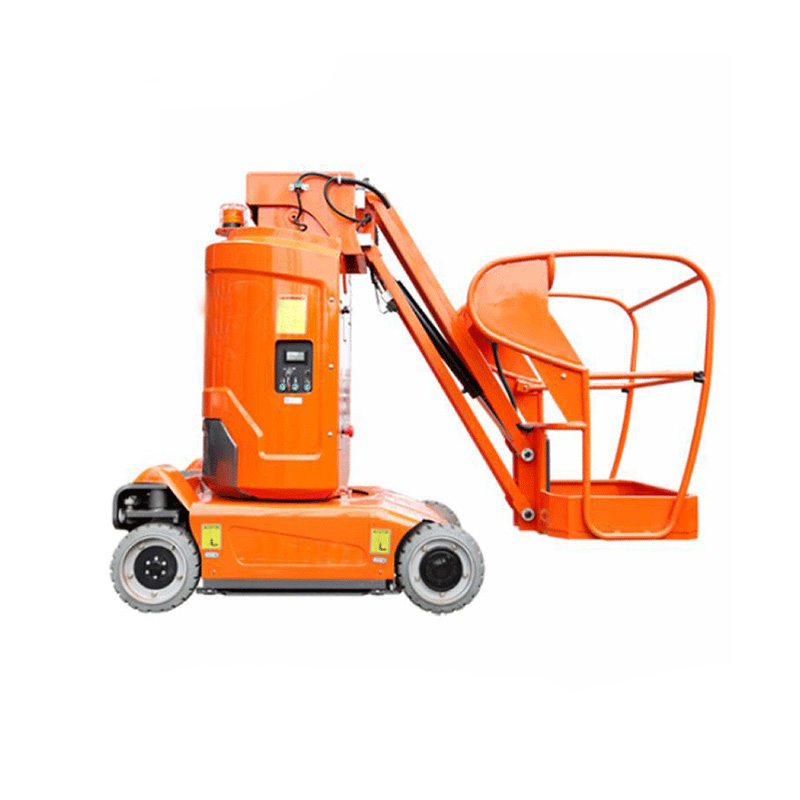

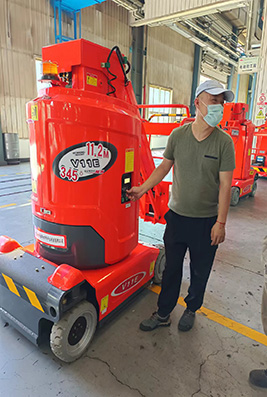

Vertical Mast Aluminum Alloy Lifting Platform
The FX series vertical mast aerial work platform makes many difficult and dangerous jobs much easier. This aerial lift platform is characterized by its compactness, flexibility and convenience. Instead of indoor scaffolding and ladders, a platform can be used to reach the height you need and solve your problems. At the same time, it can also save you costs and valuable time. It is especially suitable for continuous high-altitude operation in a larger areas such as airport terminals, stations, docks, shopping malls, stadiums, community properties and workshops.

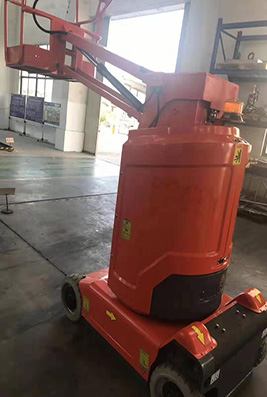

Product Features:
● - 345-degree rotary table rotation
● - Lightweight, easy to transport and shift, improve work efficiency
● - 3m horizontal extension to cover more working area
● - Touch screen for quick fault diagnosis and function setting
● - Compact tower rotation radius is smaller than the base extension, even in narrow aisles, it can run freely
● - Battery-driven, suitable for indoor work with high environmental requirements
● - Suitable for indoor building maintenance and repair of high-altitude facilities/factory facilities maintenance and equipment installation required in a small space / outdoor billboard, decorative light installation, etc.

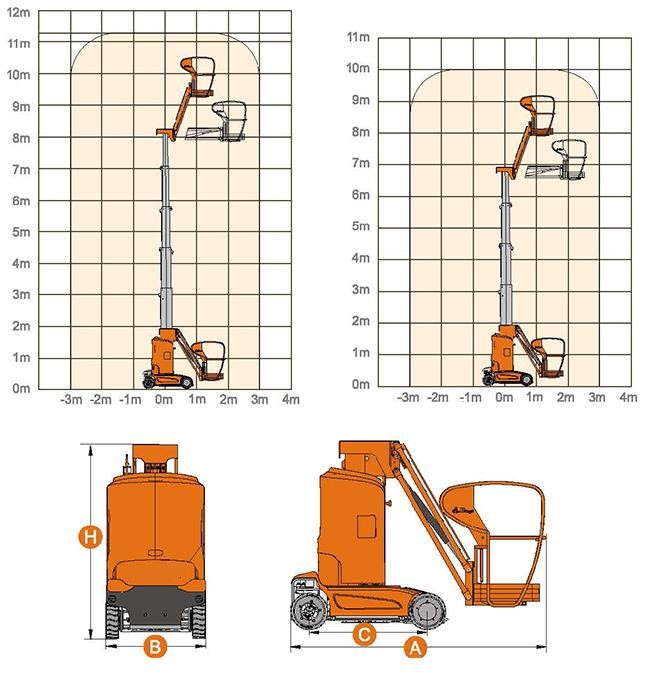

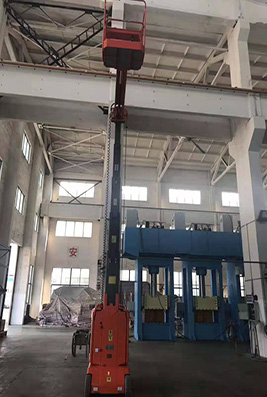

Scope of work diagram：
Technical Parameters:
Model | FX-11 | FX-10 | |
Max. working height | 11.20m | 10.00m | |
Max. platform height | 9.20m | 8.00m | |
Maximum horizontal extension | 3.00m | 3.00m | |
Maximum span height | 7.89m | 6.69m | |
Overall machine length | 2.72m | 2.72m | |
Machine width | 1.00m | 1.00m | |
Overall machine height | 1.99m | 1.99m | |
Working platform size | 0.62x0.87m | 0.62x0.87m | |
Wheelbase (m) | 1.22m | 1.22m | |
Minimum Ground Clearance | Gathered | 0.06m | 0.06m |
Raised | 0.019m | 0.019m | |
Safe working load | 200kg | 200kg | |
Maximum number of workers | 2 | 2 | |
Minimum turning radius (inner wheel) | 0.23m | 0.23m | |
Minimum turning radius (outer wheel) | 1.65m | 1.65m | |
Turntable slewing angle | 345° | 345° | |
Small arm swivel angle | +70°/-60° | +70°/-60° | |
Machine travel speed (lifting state) | 0.5km/h | 0.5km/h | |
Machine travel speed(retracted state) | 4.5km/h | 4.5km/h | |
Ascending/descending time | 95/50sec | 84/45sec | |
Maximum climbing capacity | 0.25 | 0.25 | |
Working maximum allowable angle | 2.5° | 3° | |
Tire | 381x127mm | 381x127mm | |
Drive motor | 24V/1.5kw | 24V/1.5kw | |
Lifting motor | 24V/3.0kw | 24V/3.0kw | |
Battery | 24V/240Ah | 24V/240Ah | |
Operating Weight | 2950kg | 2890kg |
| Model | FX-11 | FX-10 | |
| Max. working height | 11.20m | 10.00m | |
| Max. platform height | 9.20m | 8.00m | |
| Maximum horizontal extension | 3.00m | 3.00m | |
| Maximum span height | 7.89m | 6.69m | |
| Overall machine length | 2.72m | 2.72m | |
| Machine width | 1.00m | 1.00m | |
| Overall machine height | 1.99m | 1.99m | |
| Working platform size | 0.62x0.87m | 0.62x0.87m | |
| Wheelbase (m) | 1.22m | 1.22m | |
| Minimum Ground Clearance | Gathered | 0.06m | 0.06m |
| Raised | 0.019m | 0.019m | |
| Safe working load | 200kg | 200kg | |
| Maximum number of workers | 2 | 2 | |
| Minimum turning radius (inner wheel) | 0.23m | 0.23m | |
| Minimum turning radius (outer wheel) | 1.65m | 1.65m | |
| Turntable slewing angle | 345° | 345° | |
| Small arm swivel angle | +70°/-60° | +70°/-60° | |
| Machine travel speed (lifting state) | 0.5km/h | 0.5km/h | |
| Machine travel speed | 4.5km/h | 4.5km/h | |
| (retracted state) | |||
| Ascending/descending time | 95/50sec | 84/45sec | |
| Maximum climbing capacity | 0.25 | 0.25 | |
| Working maximum allowable angle | 2.5° | 3° | |
| Tire | 381x127mm | 381x127mm | |
| Drive motor | 24V/1.5kw | 24V/1.5kw | |
| Lifting motor | 24V/3.0kw | 24V/3.0kw | |
| Battery | 24V/240Ah | 24V/240Ah | |
| Operating Weight | 2950kg | 2890kg |
