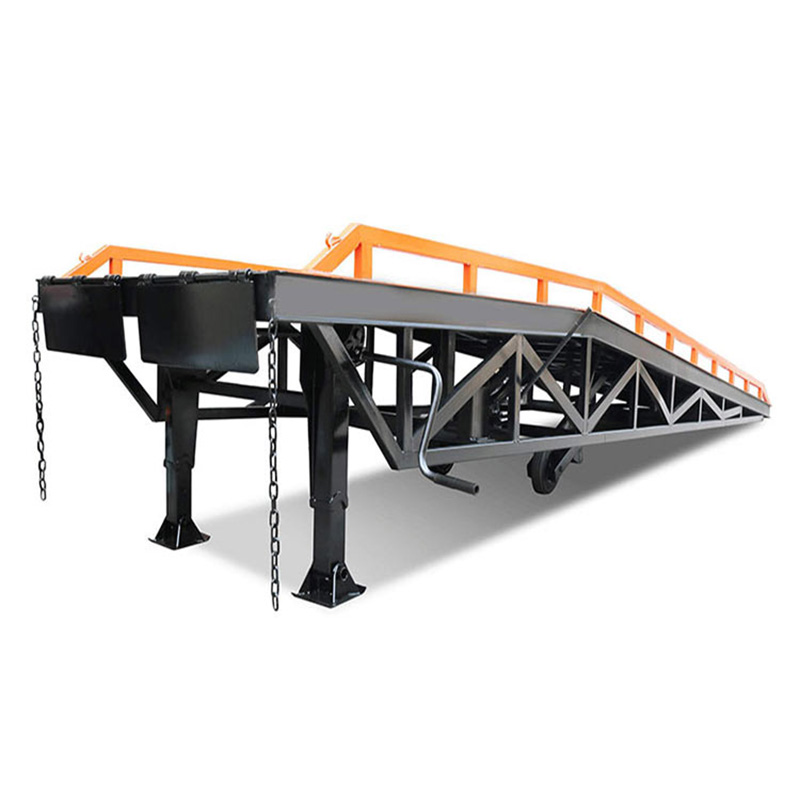

The Mobile Boarding Bridge Equipment
Hydraulic boarding bridge is divided into fixed and mobile type. The equipment is a mobile boarding bridge, using an imported hydraulic system. Its main role is to build a bridge between the platform and the transport vehicle so that the forklift can travel conveniently and achieve the purpose of loading and unloading. One end of the equipment is equal to the platform, and the other end is on the rear edge of the carriage and can automatically adjust the height according to different models and changes in the carriage during loading. The product can be specially designed according to the different needs of users in terms of shape size, load bearing, etc. It is widely used in postal, grain, station and dock, marine transportation and other industries.

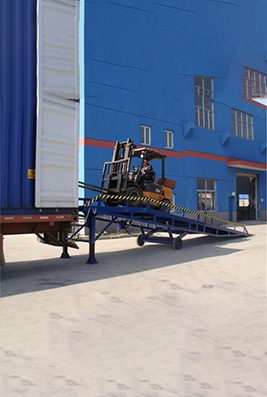

The mobile docking bridge is widely used in loading and unloading places without loading and unloading equipment and mobile loading and unloading places and is a piece of auxiliary equipment for loading and unloading goods used with a forklift. With the help of the boarding bridge equipment, the forklift can directly drive into the interior of the car for bulk loading and unloading operations. It only needs a single-person operation and no power supply to realize the safe and fast loading and unloading of goods. It can not only make you reduce labor intensity but also multiply the efficiency of loading and unloading operations, speed up the flow of logistics and obtain greater economic benefits.
Product Parameters:
NO. | Item | Origin | Specification | Note |
1 | Countertop size | 11000×2000×1000 mm | Length×width×height | |
2 | Non-slip table top | 6mm thick patterned plate | Table surface paving diamond mesh 8mm | |
3 | By load | 6T,8T,10T,12T | Self-weight:2400-3000kg | |
4 | Height adjustment | 900～1800mm | ||
5 | Minimum height | 900mm | ||
6 | Lifting speed | 1m/min | ||
7 | Main frame | Shanghai Baosteel Group | 160×80×δ8 ㎜ | High-strength manganese |
8 | Auxiliary frame | Shanghai Baosteel Group | 120×60×δ6 ㎜ | High-strength manganese |
9 | Shaft sleeve | Shanghai Baosteel Group | No.45 seamless pipe | High strength manganese |
10 | Shaft pin | Shanghai Baosteel Group | 40cr sintered steel | High-strength |
11 | Tongue plate | Shanghai Baosteel Group | 2000×400 mm (δ18 ㎜ steel plate + δ4mm pattern plate) | |
12 | Big plate cylinder | Hebei Hengyu | 2 oil cylinders, bore Ø80 | HSG45/80-295/605-2 |
13 | Tire type | Taiwan Zhengxin | 700-9 (2pcs) | Pneumatic tire |
14 | Sealing Ring | Japan NOK | Ø80, 2pcs | |
15 | Surface treatment | Lipan special magnetic | Spraying anti-rust paint, top coat, | |
16 | Protective fence | Shanghai Baosteel Group | 350mm (height) | |
17 | Power source | Anshan Lisheng | Manual hydraulic pump | |
18 | Maximum elevation | ≤130 | ||
| NO. | Item | Origin | Specification | Note |
| 1 | Countertop size | 11000×2000×1000 mm | Length×width×height | |
| 2 | Non-slip table top | 6mm thick patterned plate | Table surface paving diamond mesh 8mm | |
| 3 | By load | 6T,8T,10T,12T | Self-weight:2400-3000kg | |
| 4 | Height adjustment | 900～1800mm | ||
| 5 | Minimum height | 900mm | ||
| 6 | Lifting speed | 1m/min | ||
| 7 | Main frame | Shanghai Baosteel Group | 160×80×δ8 ㎜ | High-strength manganese steel pipe |
| 8 | Auxiliary frame | Shanghai Baosteel Group | 120×60×δ6 ㎜ | High-strength manganese steel pipe |
| 9 | Shaft sleeve | Shanghai Baosteel Group | No.45 seamless pipe | High strength manganese steel seamless pipe |
| 10 | Shaft pin | Shanghai Baosteel Group | 40cr sintered steel | High-strength bonding steel |
| 11 | Tongue plate | Shanghai Baosteel Group | 2000×400 mm (δ18 ㎜ steel plate + δ4mm pattern plate) | |
| 12 | Big plate cylinder | Hebei Hengyu | 2 oil cylinders, bore Ø80 | HSG45/80-295/605-2 |
| 13 | Tire type | Taiwan Zhengxin | 700-9 (2pcs) | Pneumatic tire |
| 14 | Sealing Ring | Japan NOK | Ø80, 2pcs | |
| 15 | Surface treatment | Lipan special magnetic paint | Spraying anti-rust paint, top coat, surface color can be painted according to customer's requirement | |
| 16 | Protective fence | Shanghai Baosteel Group | 350mm (height) | |
| 17 | Power source | Anshan Lisheng | Manual hydraulic pump | |
| 18 | Maximum elevation angle | ≤130 | ||
