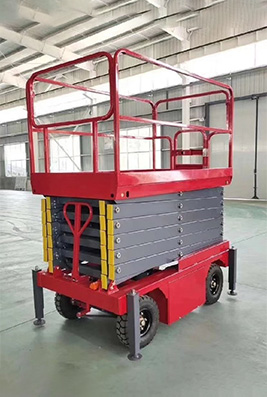

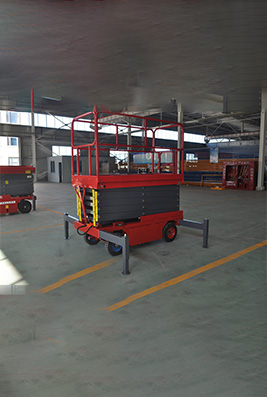

Four Wheel Mobile Lifting Machine
There are two sets of control systems (optional), one set of hand-held buttons, which can be placed at any position on the table railing and operated on one side; the other set is fixed on the electric control box and equipped with an emergency stop button to prevent sudden accidents.
Product Features:

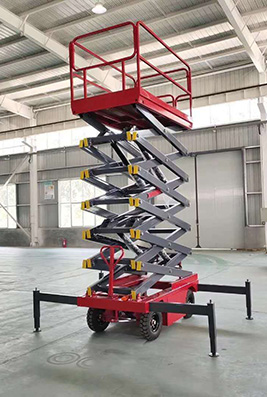

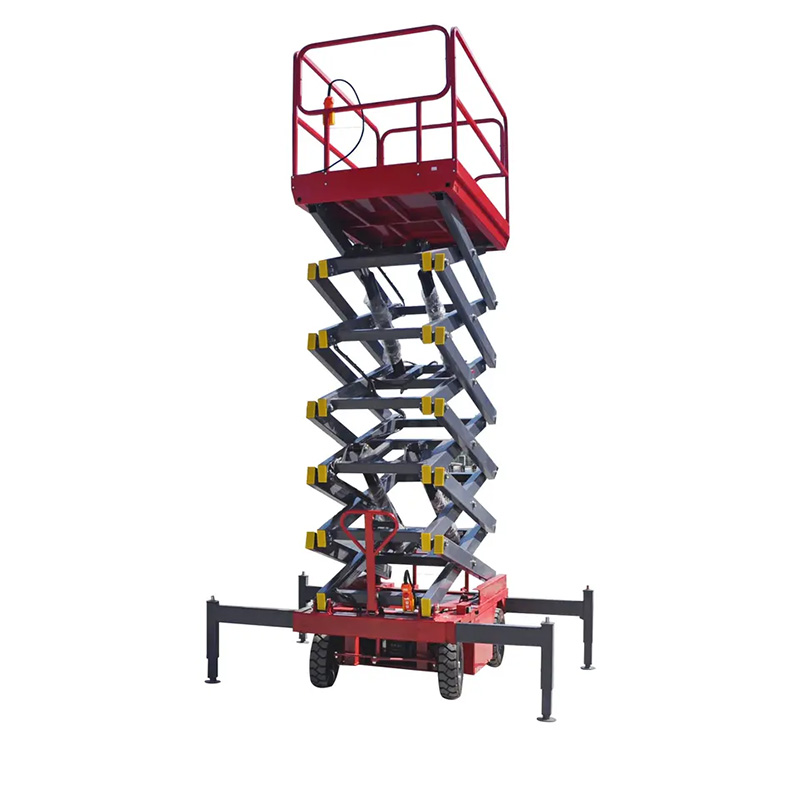

Four cell lifting platform is an extensively used one-of-a-kind gear for aerial work. The tool is a shear fork mechanical structure, with a broad working desk and excessive carrying capacity. The total desktop has excessive stability. It is appropriate for a couple of simultaneous operations. The extensive software of these tools no longer solely makes the aerial work greater large but additionally significantly improves the operational efficiency, which is imperative lifting gear in each day aerial work.
Technical Parameters:
Model | SJY0.3-6 | SJY0.3-8 | SJY0.3-10 |
Working Height (m) | 8 | 10 | 12 |
Platform Height(m) | 6 | 8 | 10 |
Horizontal Extension | 0 | 0 | 0 |
Load Capacity(kg) | 300 | 300 | 300 |
Horizontal load capacity (kg) | 0 | 0 | 0 |
Collection length (m) | 2.25 | 2.25 | 2.25 |
Collection Width(m) | 0.98 | 1.06 | 1.35 |
Collection height (m) | 1.2 | 1.38 | 1.53 |
Work Platform Size (m) | |||
Platform length (m) | 2.1 | 2.1 | 2.1 |
Platform width (m) | 0.83 | 0.93 | 1.23 |
Guardrail height (m) | 1.1 | 1.1 | 1.1 |
Dimensions of outrigger legs | 1.65x1.45 | 1.75x1.55 | 1.85x1.65 |
Voltage (V) AC/DC | 380/12 | 380/12 | 380/12 |
Motor power (kw) | 2.2 | 2.2 | 2.2 |
Ascending/descending speed (m/ s) | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
Weight of the whole machine (kg) | 800 | 950 | 1300 |
