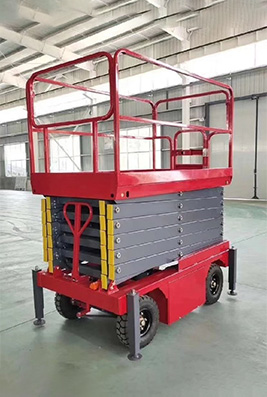

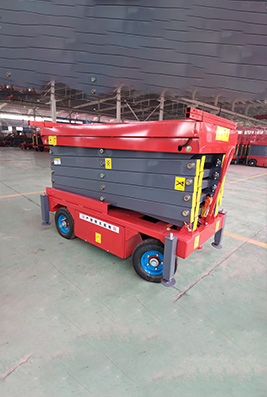

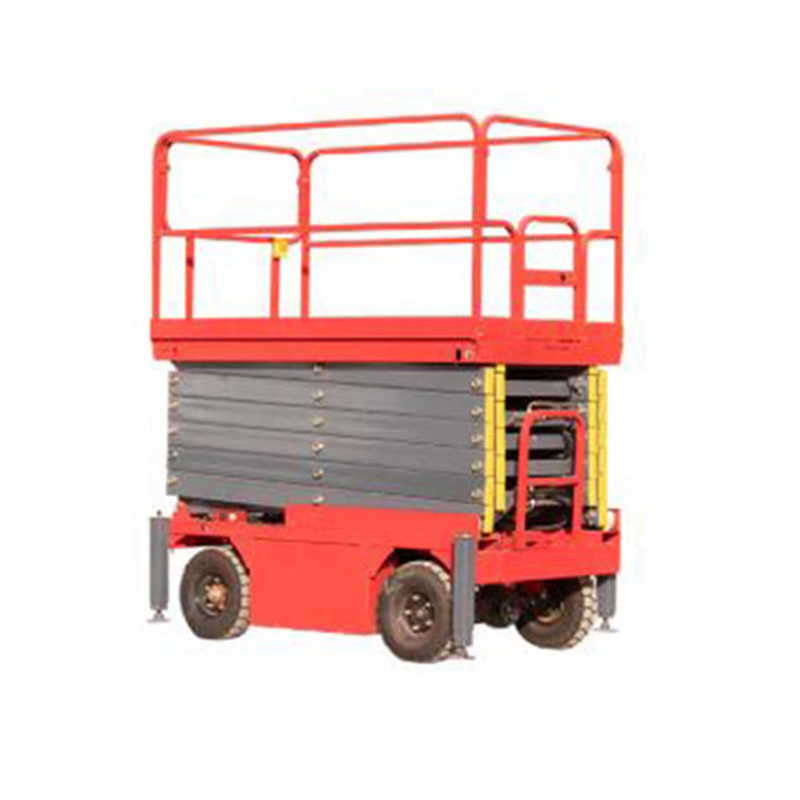

Four Wheel Mobile Aerial Work Platform
The four-wheeled mobile lifting platform can automatically or manually control the platform lift and can be used when there is no electricity, making the aerial work safer and more efficient. It not only can be applied in construction sites, factories, warehouses, grain depots, stations, hotels, airports, docks, gas stations, stadiums, electric power, elevated pipelines and other high-altitude equipment installation and maintenance, cleaning, etc. but also for lifting equipment maintenance, field power facilities maintenance, steel structure plant maintenance, etc. It is a good helper for your high-altitude work.
Product Features:
Four cellular lifting platform is an extensively used as a unique tools for aerial work. The gear is a shear fork mechanical structure, with an extensive running desk and excessive carrying capacity. The complete computer has excessive stability. It is appropriate for a couple of simultaneous operations. The vast software of these tools now not solely makes the aerial work extra large but additionally radically improves the operational efficiency, which is critical lifting gear in each day aerial work.
Technical Parameters:
Model | SJY0.3-6 | SJY0.3-8 | SJY0.3-10 |
Working Height (m) | 8 | 10 | 12 |
Platform Height(m) | 6 | 8 | 10 |
Horizontal Extension | 0 | 0 | 0 |
Load Capacity(kg) | 300 | 300 | 300 |
Horizontal load capacity (kg) | 0 | 0 | 0 |
Collection length (m) | 2.25 | 2.25 | 2.25 |
Collection Width(m) | 0.98 | 1.06 | 1.35 |
Collection height (m) | 1.2 | 1.38 | 1.53 |
Work Platform Size (m) | |||
Platform length (m) | 2.1 | 2.1 | 2.1 |
Platform width (m) | 0.83 | 0.93 | 1.23 |
Guardrail height (m) | 1.1 | 1.1 | 1.1 |
Dimensions of outrigger legs | 1.65x1.45 | 1.75x1.55 | 1.85x1.65 |
Voltage (V) AC/DC | 380/12 | 380/12 | 380/12 |
Motor power (kw) | 2.2 | 2.2 | 2.2 |
Ascending/descending speed (m/ s) | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
Weight of the whole machine (kg) | 800 | 950 | 1300 |
