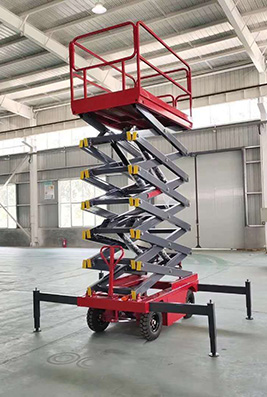

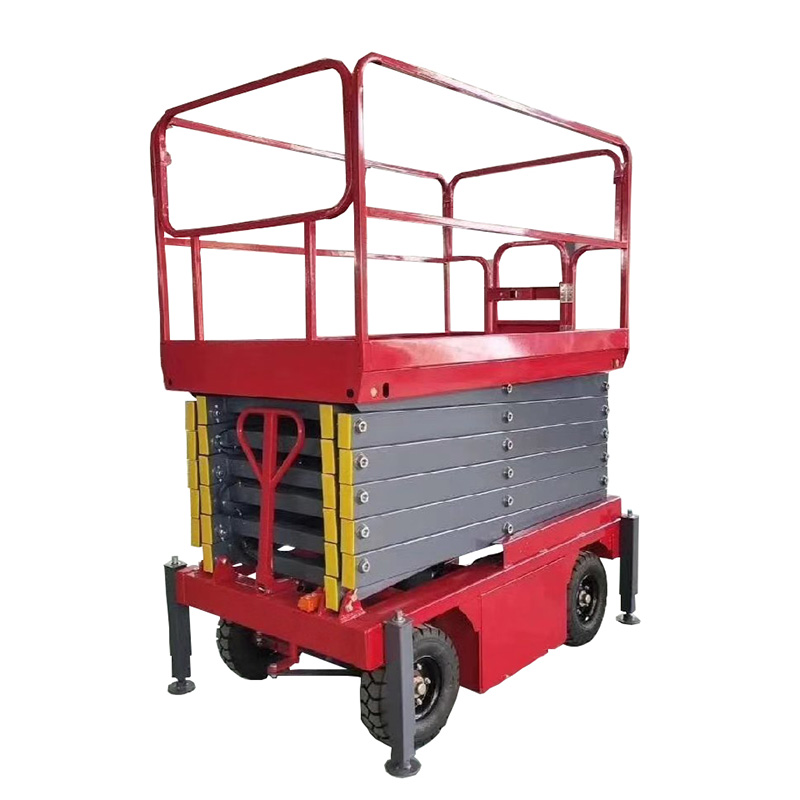

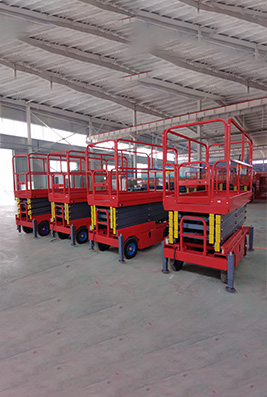

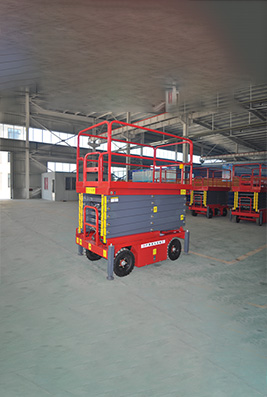

Four Wheel Mobile Lifting Platform
Four Wheel Mobile Lifting Platform can be divided into 4, 6, 8, 10, 12, 14, 16, 18, and 20 meters series products according to the lifting height. According to the bearing capacity can be divided into 300kg, 500kg, 800kg, 1000kg, 1500kg, and 2000kg. The customer can choose a 380V or 220V battery or diesel engine for lifting power according to the demand. It can also choose explosion-proof motors, and electrical appliances in some special locations.
Product Features:
Four mobile lifting platform is a widely used special equipment for aerial work. The equipment is a shear fork mechanical structure, with a wide operating table and high carrying capacity. The whole machine has high stability. It is suitable for multiple simultaneous operations. The wide application of this equipment not only makes the aerial work more extensive but also greatly improves the operational efficiency, which is essential lifting equipment in daily aerial work.
Technical Parameters:
Model | SJY0.3-6 | SJY0.3-8 | SJY0.3-10 |
Working Height (m) | 8 | 10 | 12 |
Platform Height(m) | 6 | 8 | 10 |
Horizontal Extension | 0 | 0 | 0 |
Load Capacity(kg) | 300 | 300 | 300 |
Horizontal load capacity (kg) | 0 | 0 | 0 |
Collection length (m) | 2.25 | 2.25 | 2.25 |
Collection Width(m) | 0.98 | 1.06 | 1.35 |
Collection height (m) | 1.2 | 1.38 | 1.53 |
Work Platform Size (m) | |||
Platform length (m) | 2.1 | 2.1 | 2.1 |
Platform width (m) | 0.83 | 0.93 | 1.23 |
Guardrail height (m) | 1.1 | 1.1 | 1.1 |
Dimensions of outrigger legs | 1.65x1.45 | 1.75x1.55 | 1.85x1.65 |
Voltage (V) AC/DC | 380/12 | 380/12 | 380/12 |
Motor power (kw) | 2.2 | 2.2 | 2.2 |
Ascending/descending speed (m/ s) | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
Weight of the whole machine (kg) | 800 | 950 | 1300 |
