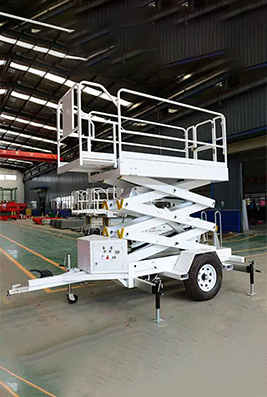

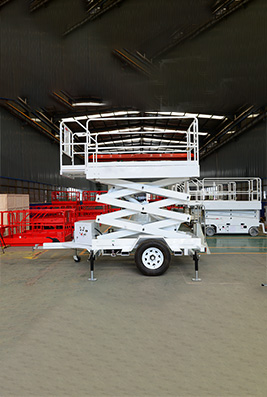

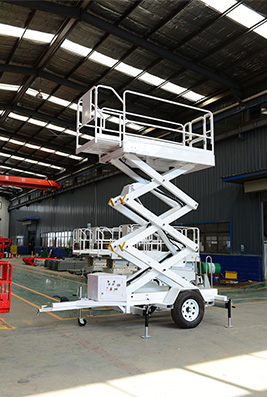

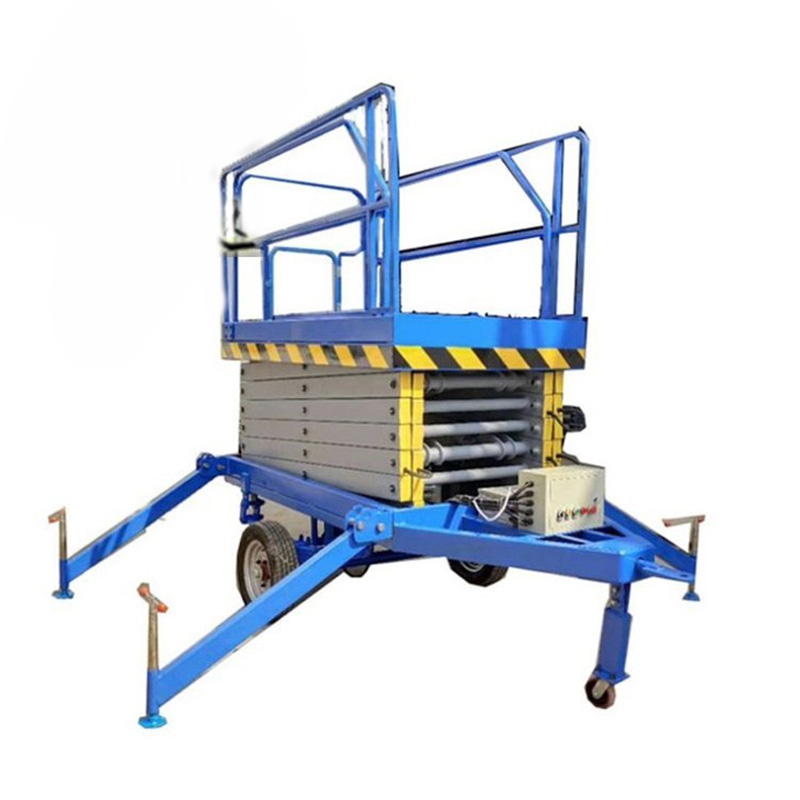

Two-wheeled Traction Mobile Lift Machine
Two-wheeled traction cellular lifting platform can robotically or manually manipulate the platform lift and can be used when there is no electricity, making the aerial work safer and greater efficient. Two-wheeled traction cell lifting platforms now not solely can be applied in building sites, factories, warehouses, grain depots, stations, hotels, airports, docks, fuel stations, stadiums, electric-powered power, multiplied pipelines and different high-altitude gear set up and maintenance, cleaning, etc., however additionally for lifting gear maintenance, subject energy services maintenance, metal shape plant maintenance, etc. It is the right helper for your high-altitude work.
Product Features:
There are two units of manage gadget (optional), one set of hand-held buttons, which can be positioned at any function on the desk railing and operated on one side; the different set is constant on the electric-powered manipulate field and geared up with an emergency end button to forestall unexpected accidents.
Product Parameters:
Model | SJQY0.3-6 | SJQY0.3-8 | SJQY0.3-10 |
Working Height (m) | 8 | 10 | 12 |
Platform Height(m) | 6 | 8 | 10 |
Horizontal Extension | 0 | 0 | 0 |
Load Capacity(kg) | 300 | 300 | 300 |
Horizontal load capacity (kg) | 0 | 0 | 0 |
Collection length (m) | 2.25 | 2.25 | 2.25 |
Collection Width(m) | 0.98 | 1.06 | 1.35 |
Collection height (m) | 1.2 | 1.38 | 1.53 |
Work Platform Size (m) | |||
Platform length (m) | 2.1 | 2.1 | 2.1 |
Platform width (m) | 0.83 | 0.93 | 1.23 |
Guardrail height (m) | 1.1 | 1.1 | 1.1 |
Dimensions of outrigger legs | 1.65x1.45 | 1.75x1.55 | 1.85x1.65 |
Voltage (V) AC/DC | 380/12 | 380/12 | 380/12 |
Motor power (kw) | 2.2 | 2.2 | 2.2 |
Ascending/descending speed (m/ s) | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
Weight of the whole machine (kg) | 800 | 950 | 1300 |
| Model | SJQY0.3-6 | SJQY0.3-8 | SJQY0.3-10 |
| Working Height (m) | 8 | 10 | 12 |
| Platform Height(m) | 6 | 8 | 10 |
| Horizontal Extension | 0 | 0 | 0 |
| Load Capacity(kg) | 300 | 300 | 300 |
| Horizontal load capacity (kg) | 0 | 0 | 0 |
| Collection length (m) | 2.25 | 2.25 | 2.25 |
| Collection Width(m) | 0.98 | 1.06 | 1.35 |
| Collection height (m) | 1.2 | 1.38 | 1.53 |
| Work Platform Size (m) | |||
| Platform length (m) | 2.1 | 2.1 | 2.1 |
| Platform width (m) | 0.83 | 0.93 | 1.23 |
| Guardrail height (m) | 1.1 | 1.1 | 1.1 |
| Dimensions of outrigger legs | 1.65x1.45 | 1.75x1.55 | 1.85x1.65 |
| Voltage (V) AC/DC | 380/12 | 380/12 | 380/12 |
| Motor power (kw) | 2.2 | 2.2 | 2.2 |
| Ascending / descending speed (m/ s) | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
| Weight of the whole machine (kg) | 800 | 950 | 1300 |
