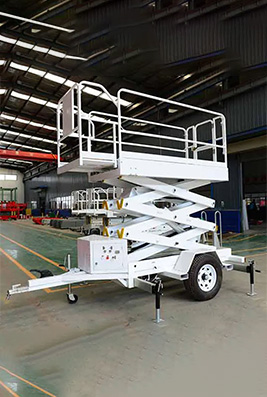

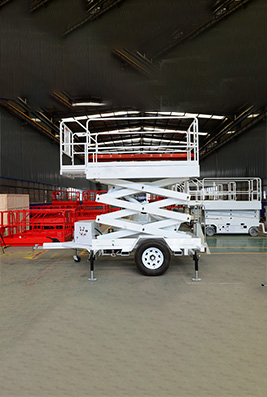

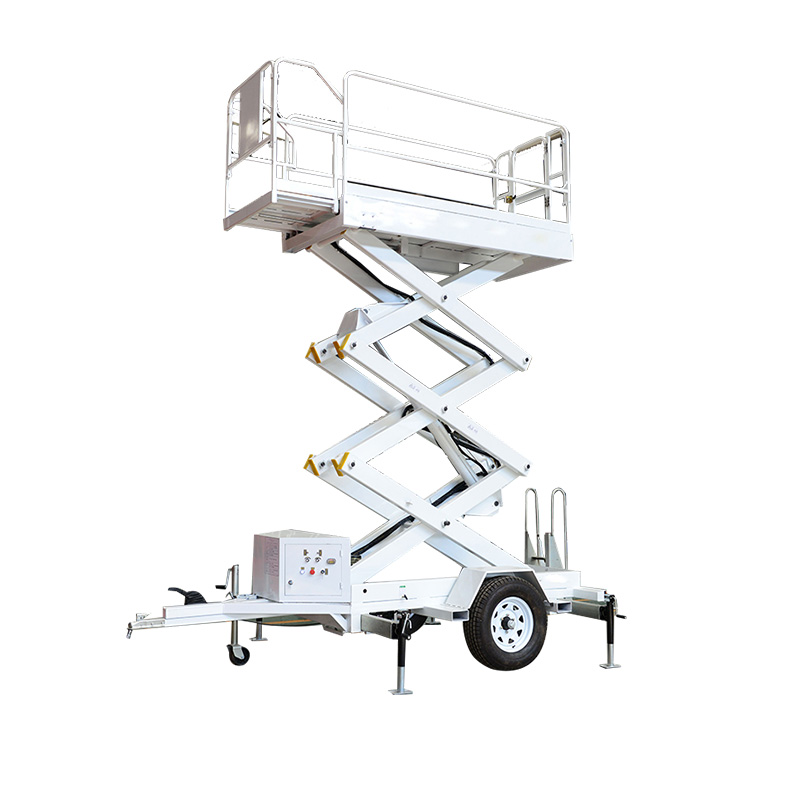

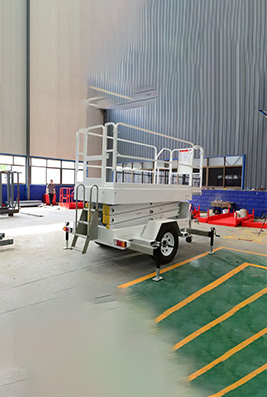

Two-wheeled Traction Mobile Aerial Work Platform
There are two units of manage device (optional), one set of handheld buttons, which can be positioned at any function on the desk railing and operated on one side; the different set is constant on the electric-powered manage container and outfitted with an emergency quit button to stop unexpected accidents.
Product Features:
There are two units of manipulate machine (optional), one set of handheld buttons, which can be positioned at any role on the desk railing and operated on one side; the different set is constant on the electric-powered manage container and outfitted with an emergency end button to stop unexpected accidents.
Product Parameters:
Model | SJQY0.3-6 | SJQY0.3-8 | SJQY0.3-10 |
Working Height (m) | 8 | 10 | 12 |
Platform Height(m) | 6 | 8 | 10 |
Horizontal Extension | 0 | 0 | 0 |
Load Capacity(kg) | 300 | 300 | 300 |
Horizontal load capacity (kg) | 0 | 0 | 0 |
Collection length (m) | 2.25 | 2.25 | 2.25 |
Collection Width(m) | 0.98 | 1.06 | 1.35 |
Collection height (m) | 1.2 | 1.38 | 1.53 |
Work Platform Size (m) | |||
Platform length (m) | 2.1 | 2.1 | 2.1 |
Platform width (m) | 0.83 | 0.93 | 1.23 |
Guardrail height (m) | 1.1 | 1.1 | 1.1 |
Dimensions of outrigger legs | 1.65x1.45 | 1.75x1.55 | 1.85x1.65 |
Voltage (V) AC/DC | 380/12 | 380/12 | 380/12 |
Motor power (kw) | 2.2 | 2.2 | 2.2 |
Ascending/descending speed (m/ s) | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
Weight of the whole machine (kg) | 800 | 950 | 1300 |
