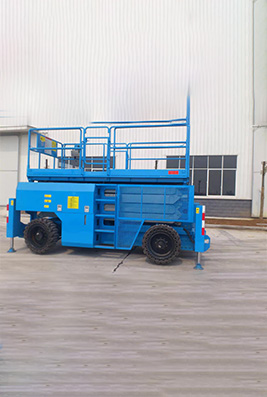

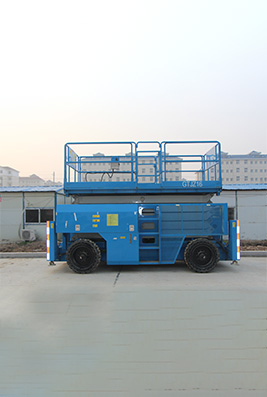

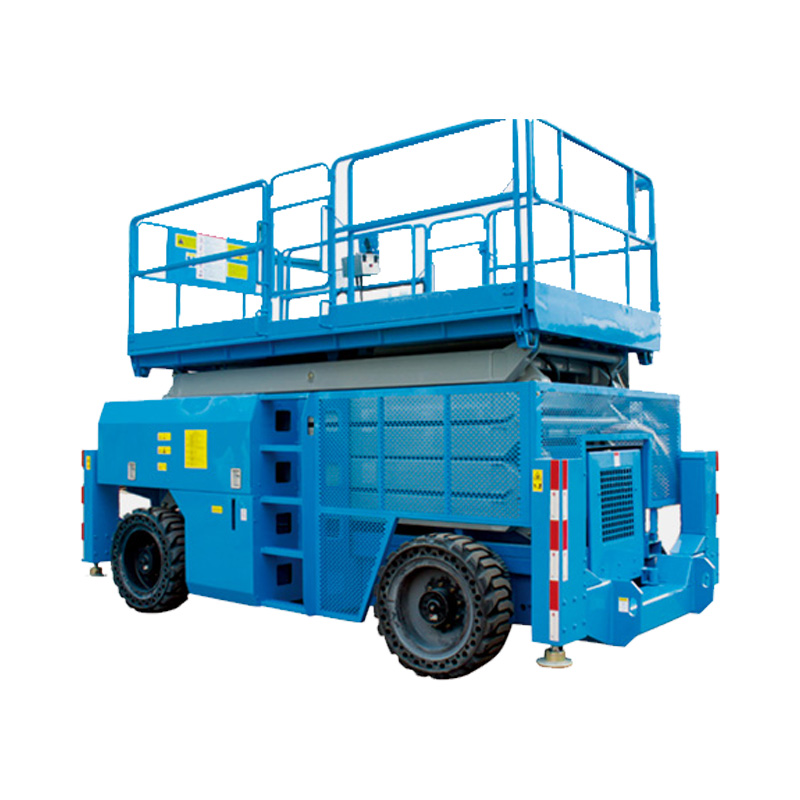

Cross Country Scissor Type Aerial Work Platform

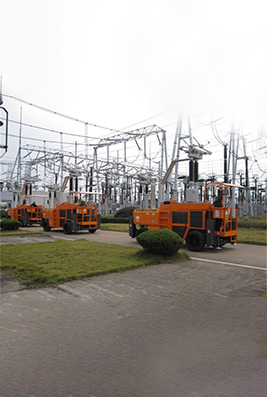

GTJZ series cross-country scissor type aerial working platform makes many difficult and dangerous jobs easier, such as indoor and outdoor cleaning (ceiling,curtain wall, glass window, eaves, canopy, chimney, etc.), installation and maintenance of billboards, installation and maintenance of street lamps and traffic signs, construction site construction, etc. The characteristics of this high-altitude lifting platform are flexible, convenient and fast. You can use a lifting platform instead of scaffolding to reach the height you need and solve your problems. At the same time, it can save your expense and valuable time. It is especially suitable for continuous high-altitude operations in airport terminals, stations, docks, shopping malls, stadiums, residential properties, factories, mines and workshops.
Product Features:
(1) Security certification
Conform to the EU EN280 standard and obtain CE certification.
(2) Walk when working at heights
GTJZ scissor fork self-propelled aerial work platform has the function of automatic walking. It can walk fast and slowly under different working conditions. Only one person can operate the machine to continuously complete lifting, advancing, retreating, steering and other actions when working at heights. Compared with traditional hydraulic platforms, it greatly improves the working efficiency, reduces the number of operators and labor intensity.
(3) Security protection
A level alarm is installed on the machine. When the vehicle inclines more than 3 degrees in all directions, the machine will automatically enter the protection system. Only the machine is allowed to descend, and can be used normally after it reaches a safe state. GTJZ aerial work platform is equipped with oil pipe explosion-proof system at each oil cylinder.
Technical Parameters:
Model | GTJZ-12L | GTJZ-15L | GTJZ-18L |
Maximum working height (m) | 12 | 15 | 18 |
Maximum lifting height (m) | 10 | 13 | 16 |
Platform load (kg) | 1150 | 680 | 680 |
Maximum horizontal extension(m) | 1220×1520 | 1220×1520 | 1220×1520 |
Platform sliding extension load(kg) | 230 | 230 | 230 |
Platform size (L x W) (mm) | 3950×1830 | 3950×1830 | 3950×1830 |
Collection size (L x W x H)(m) | 4900×2280×2740 | 4900×2280×2950 | 4900×2280×3160 |
Folding height of platform(mm) | N/A | N/A | N/A |
Wheel base (mm) | 2840 | 2840 | 2840 |
Fuel tank capacity (L) | 115 | 115 | 115 |
Hydraulic oil tank capacity (L) | 170 | 170 | 170 |
Gradeability (%) | 0.5 | 0.5 | 0.5 |
Maximum allowable workingangle (°) | 3 | 3 | 3 |
Center ground clearance (m) | 0.23 | 0.23 | 0.23 |
Inner rotation radius (mm) | 2350 | 2350 | 2350 |
Outside rotation radius (mm) | 5200 | 5200 | 5200 |
Drive mode | 4×4×4 | 4×4×4 | 4×4×4 |
Number of steering wheels | 4 | 4 | 4 |
Rise/fall time (s) | 56/50 | 70/65 | 90/85 |
Driving speed (stowed) (km/h) | 6.3 | 6.3 | 6.3 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
Engine power (kw) | 38 | 38 | 38 |
Tire size (cm) | 12408 | 12408 | 12408 |
Operating Weight (kg) | 5850 | 6350 | 7850 |
