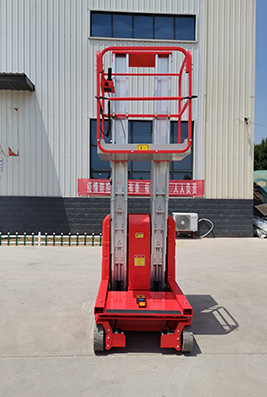

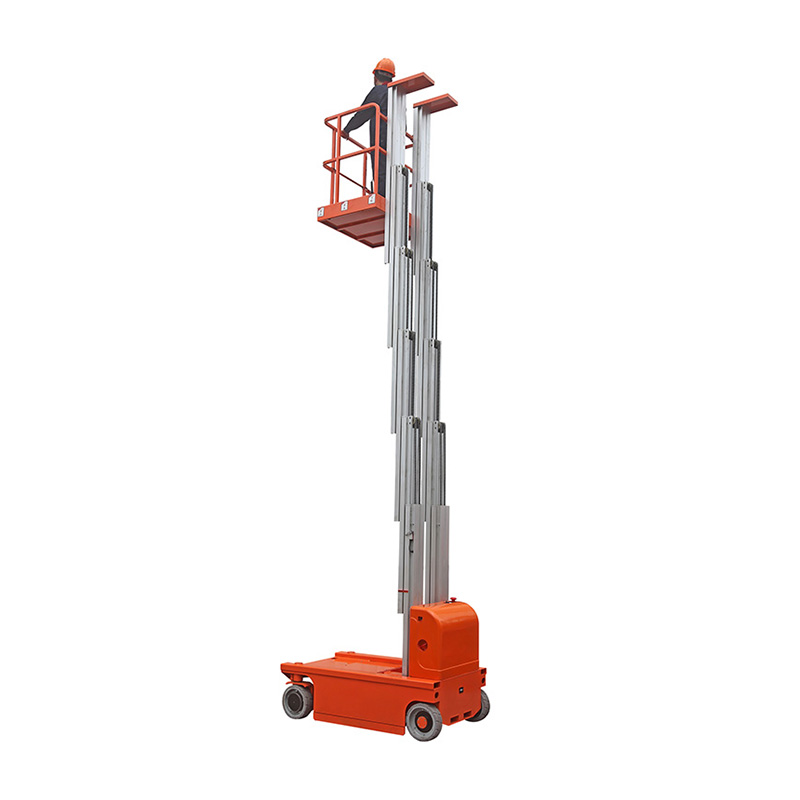

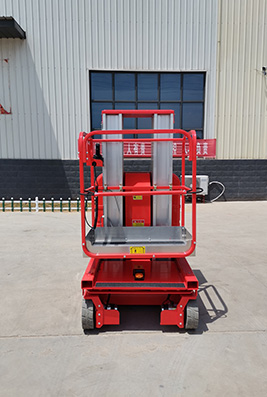

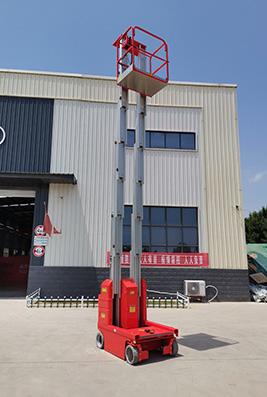

Double Mast Full Self-propelled Aluminum Alloy Lift
MG collection's totally self-propelled mast aerial work platform makes many hard and risky jobs easier. This aerial carry platform is characterised via compactness, flexibility and convenience. Instead of indoor scaffolding and mountaineering ladders, one platform can be used to attain the peak you want and resolve your problems. At the equal time, it can additionally store your prices and precious time. It is, in particular, appropriate for non-stop high-altitude operation in large areas such as airport terminals, stations, docks, buying malls, stadiums, neighborhood homes and workshops.
Product Features:
1. Large-angle steering system
Adopt the principle of differential steering, and design a 0-angle steering system, making the machine has excellent flexibility.
2. Intelligent charging system
Equipped with a fully automatic charger, it can automatically complete the whole process of charging, and will automatically stop charging after the battery is full.
3. Extension platform (This is an optional item)
The working platform can be moved out, which expands the working range and can meet the special needs of some users.
Technical Parameters:
Machine Model | MG750-2 | MG900-2 | |
Platform load capacity | 200Kg | 150Kg | |
Working height | 9.5m | 11.0m | |
Maximum height of the platform | 7.5m | 9.0m | |
Overall Dimension | L1.5*W1*H2.08m | L1.5*W1*H2.08m | |
Platform size | 1.0*0.7m | 1.0*0.7m | |
Climbing degree | 0.25 | 0.25 | |
Maximum Allowable Angle | 3° | 3° | |
Min. turning radius | 0 | 0 | |
Wheelbase | 1.28m | 1.28m | |
Travel speed | Retracted state | 3km/h | 3km/h |
Raise or extend state | 0.5km/h | 0.5km/h | |
Ground clearance | 0.05m | 0.05m | |
Drive wheel size | φ0.25*0.08 | φ0.25*0.08 | |
Drive motor | 2*24V/0.5kw | 2*24V/0.5kw | |
Lifting motor | 24V/2kw | 24V/2kw | |
Maintenance-free battery | 2*12V/115A | 2*12V/115A | |
Charger | 24V/12A | 24V/12A | |
Weight | 1200kg | 1450kg |
| Machine Model | MG750-2 | MG900-2 | |
| Platform load capacity | 200Kg | 150Kg | |
| Working height | 9.5m | 11.0m | |
| Maximum height of platform | 7.5m | 9.0m | |
| Overall Dimension | L1.5*W1*H2.08m | L1.5*W1*H2.08m | |
| Platform size | 1.0*0.7m | 1.0*0.7m | |
| Climbing degree | 0.25 | 0.25 | |
| Maximum Allowable Angle | 3° | 3° | |
| Min. turning radius | 0 | 0 | |
| Wheelbase | 1.28m | 1.28m | |
| Travel speed | Retracted state | 3km/h | 3km/h |
| Raise or extend state | 0.5km/h | 0.5km/h | |
| Ground clearance | 0.05m | 0.05m | |
| Drive wheel size | φ0.25*0.08 | φ0.25*0.08 | |
| Drive motor | 2*24V/0.5kw | 2*24V/0.5kw | |
| Lifting motor | 24V/2kw | 24V/2kw | |
| Maintenance-free battery | 2*12V/115A | 2*12V/115A | |
| Charger | 24V/12A | 24V/12A | |
| Weight | 1200kg | 1450kg |
