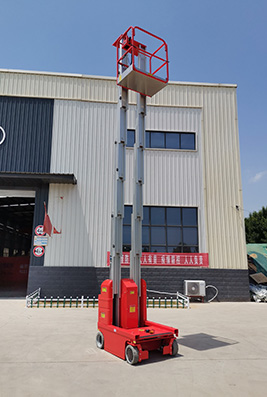

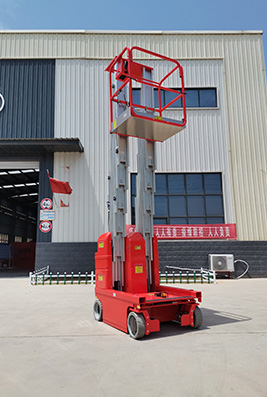

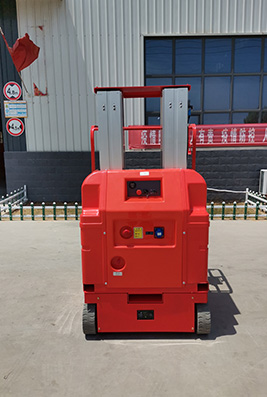

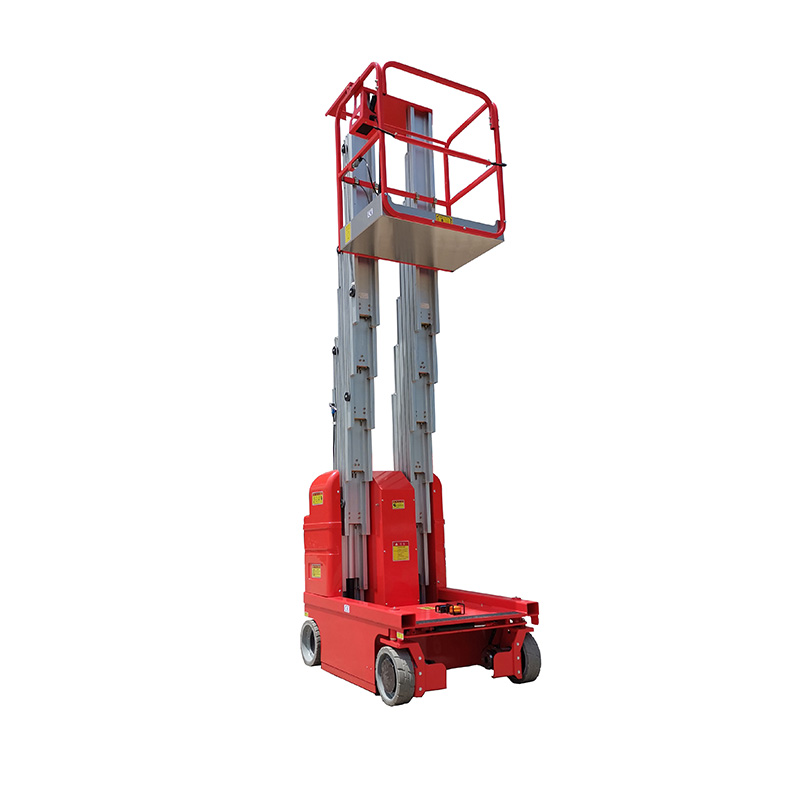

Double Mast Full Self-propelled Aerial Working Platform
MG sequence utterly self-propelled mast aerial work platform makes many challenging and hazardous jobs easier. This aerial carry platform is characterized with the aid of compactness, flexibility and convenience. Instead of indoor scaffolding and mountaineering ladders, one platform can be used to attain the top you want and remedy your problems. At the equal time, it can additionally keep your prices and treasured time. It is, in particular, appropriate for non-stop high-altitude operation in large areas such as airport terminals, stations, docks, buying malls, stadiums, neighborhood houses and workshops.
Product Features:
1. High-standard structure
a) Adopt a high-strength custom-made chain which is 10 times higher than the design standard
b) Built-in slider design, made of ultra-high polymer polyethylene, better stability
c) Use Liaoning "Zhongwang" brand aluminum profile (customized type)
2. Power failure self-locking function
Automatically locks at the prevailing height in case of power failure or sudden loss of power.
3. Green environmental protection
As the machine uses DC battery power, the machine can be safely and quietly suitable for indoor or outdoor work.
4. Emergency device
Set with emergency descent system
Technical Parameters:
Machine Model | MG750-2 | MG900-2 | |
Platform load capacity | 200Kg | 150Kg | |
Working height | 9.5m | 11.0m | |
Maximum height of the platform | 7.5m | 9.0m | |
Overall Dimension | L1.5*W1*H2.08m | L1.5*W1*H2.08m | |
Platform size | 1.0*0.7m | 1.0*0.7m | |
Climbing degree | 0.25 | 0.25 | |
Maximum Allowable Angle | 3° | 3° | |
Min. turning radius | 0 | 0 | |
Wheelbase | 1.28m | 1.28m | |
Travel speed | Retracted state | 3km/h | 3km/h |
Raise or extend state | 0.5km/h | 0.5km/h | |
Ground clearance | 0.05m | 0.05m | |
Drive wheel size | φ0.25*0.08 | φ0.25*0.08 | |
Drive motor | 2*24V/0.5kw | 2*24V/0.5kw | |
Lifting motor | 24V/2kw | 24V/2kw | |
Maintenance-free battery | 2*12V/115A | 2*12V/115A | |
Charger | 24V/12A | 24V/12A | |
Weight | 1200kg | 1450kg |
| Machine Model | MG750-2 | MG900-2 | |
| Platform load capacity | 200Kg | 150Kg | |
| Working height | 9.5m | 11.0m | |
| Maximum height of platform | 7.5m | 9.0m | |
| Overall Dimension | L1.5*W1*H2.08m | L1.5*W1*H2.08m | |
| Platform size | 1.0*0.7m | 1.0*0.7m | |
| Climbing degree | 0.25 | 0.25 | |
| Maximum Allowable Angle | 3° | 3° | |
| Min. turning radius | 0 | 0 | |
| Wheelbase | 1.28m | 1.28m | |
| Travel speed | Retracted state | 3km/h | 3km/h |
| Raise or extend state | 0.5km/h | 0.5km/h | |
| Ground clearance | 0.05m | 0.05m | |
| Drive wheel size | φ0.25*0.08 | φ0.25*0.08 | |
| Drive motor | 2*24V/0.5kw | 2*24V/0.5kw | |
| Lifting motor | 24V/2kw | 24V/2kw | |
| Maintenance-free battery | 2*12V/115A | 2*12V/115A | |
| Charger | 24V/12A | 24V/12A | |
| Weight | 1200kg | 1450kg |
