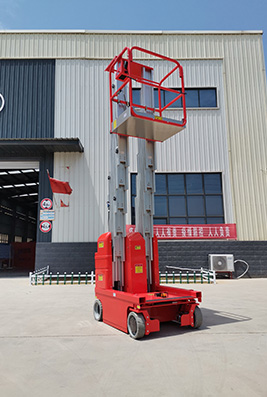

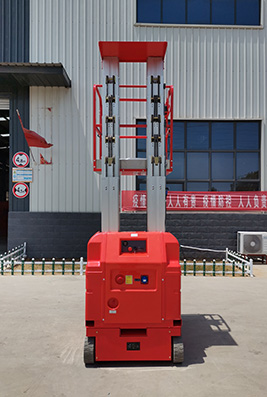

Full Self-propelled Mast Type Lifter(Double Mast)
MG sequence completely self-propelled mast aerial work platform makes many hard and unsafe jobs easier. This aerial raise platform is characterised by means of compactness, flexibility and convenience. Instead of indoor scaffolding and mountaineering ladders, one platform can be used to attain the top you want and remedy your problems. At the identical time, it can additionally shop you charges and treasured time. It is specifically appropriate for non-stop high-altitude operation in a large areas such as airport terminals, stations, docks, buying malls, stadiums, neighborhood houses and workshops.
Product Features:
1. Safety certification
Comply with the EU EN280 standard and obtain CE certification.
2. High-altitude work can walk
It has the function of automatic walking and can be done in different working conditions, fast, and slow walking, only one person in the aerial work can operate the machine to continuously complete the lifting, forward, backward, turning and other actions, compared with the traditional hydraulic platform greatly improve the efficiency, reduce the number of operators and labor intensity.
3. Stepless variable speed
Only one person needs to operate it, all the movements are controlled by the operating handle on the workbench, and the motor is steplessly variable speed. Effectively prolong the service life of the battery and motor, the motor only consumes energy when working.
Technical Parameters:
Machine Model | MG750-2 | MG900-2 | |
Platform load capacity | 200Kg | 150Kg | |
Working height | 9.5m | 11.0m | |
Maximum height of the platform | 7.5m | 9.0m | |
Overall Dimension | L1.5*W1*H2.08m | L1.5*W1*H2.08m | |
Platform size | 1.0*0.7m | 1.0*0.7m | |
Climbing degree | 0.25 | 0.25 | |
Maximum Allowable Angle | 3° | 3° | |
Min. turning radius | 0 | 0 | |
Wheelbase | 1.28m | 1.28m | |
Travel speed | Retracted state | 3km/h | 3km/h |
Raise or extend state | 0.5km/h | 0.5km/h | |
Ground clearance | 0.05m | 0.05m | |
Drive wheel size | φ0.25*0.08 | φ0.25*0.08 | |
Drive motor | 2*24V/0.5kw | 2*24V/0.5kw | |
Lifting motor | 24V/2kw | 24V/2kw | |
Maintenance-free battery | 2*12V/115A | 2*12V/115A | |
Charger | 24V/12A | 24V/12A | |
Weight | 1200kg | 1450kg |
