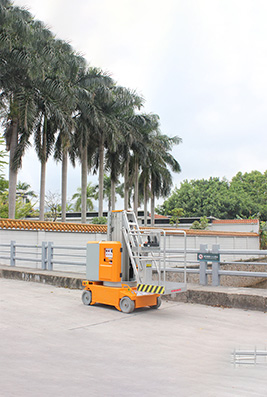

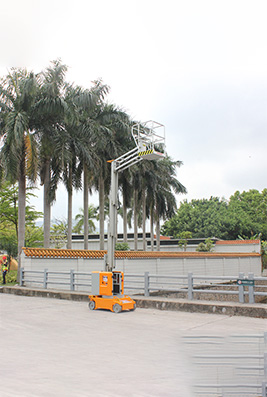

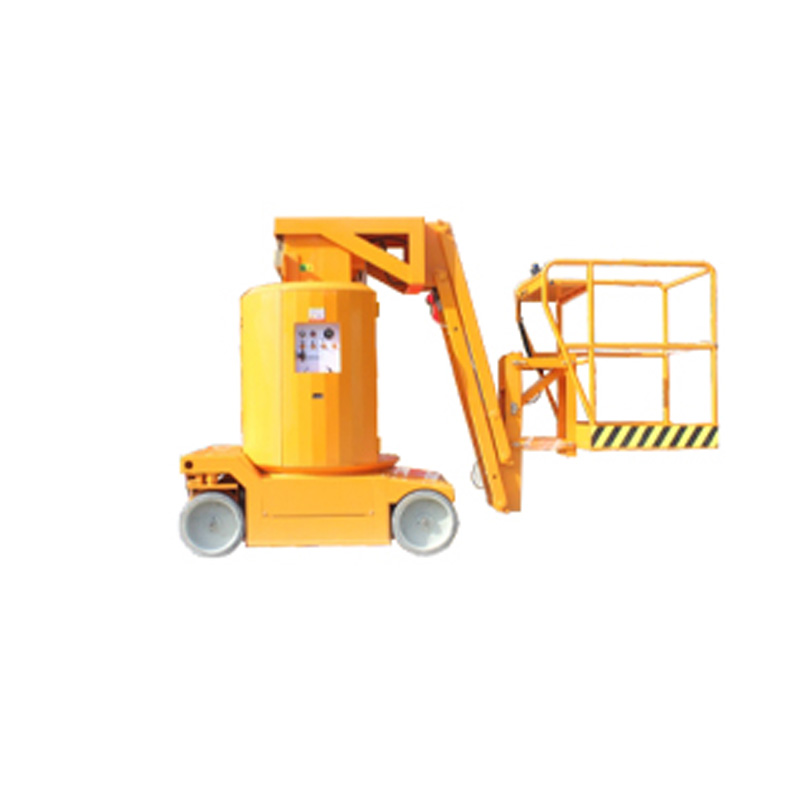

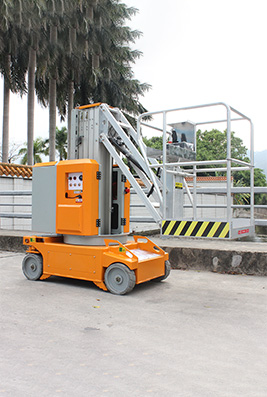

Self-propelled Mast Folding Arm Aerial Work Platform
GTWY sequence Self-propelled mast kind Crankshaft aerial work platform makes many challenging and unsafe jobs easier. This aerial elevate platform is characterized by compactness, flexibility, and convenience. You can substitute indoor scaffolding and hiking ladders with one lifting platform to attain the top you want and remedy your problems. At the identical time, it can additionally shop your fee and precious time. It is specifically appropriate for non-stop high-altitude operations in a large regions such as airport terminals, stations, docks, purchasing malls, stadiums, neighborhood residences and workshops.
Product Features:
1. High-standard structure
a)Adopt a high-strength custom-made chain that is 10 times higher than the design standard
b) Built-in slider design, made of ultra-high polymer polyethylene, better stability
c) Use Liaoning "Zhongwang" brand aluminum profile (customized type)
2. Power failure self-locking function
It will be automatically locked at the time of power failure or sudden power failure.
3. Green environmental protection
As the machine adopts DC battery power, the machine can be safely and quietly suitable for indoor or outdoor work.
4. Emergency device
Set with emergency descent system
Product Parameters:
Model | GTWY-6Z | GTWY-7Z | GTWY-8Z | GTWY-9Z |
Maximum working height (m) | 7.8 | 8.8 | 10 | 11 |
Maximum platform height (m) | 5.8 | 6.8 | 8 | 9 |
Maximum horizontal extension (m) | 3 | 3 | 3 | 3 |
Maximum spanning height (m) | 4.6 | 5.6 | 6.8 | 7.8 |
Working platform size (m) | 0.69x0.65 | 0.69x0.65 | 0.69x0.65 | 0.69x0.65 |
Rated load (kg) | 200 | 200 | 200 | 200 |
Collection length (m) | 2.85 | 2.85 | 2.85 | 2.85 |
Collection width (m) | 1 | 1 | 1 | 1 |
Collection height (m) | 1.99 | 1.99 | 1.99 | 1.99 |
Guardrail height (m) | 1.1 | 1.1 | 1.1 | 1.1 |
Turning radius - outside diameter (m) | 2 | 2 | 2 | 2 |
Wheelbase (m) | 1.23 | 1.23 | 1.23 | 1.23 |
Ground clearance (m) | 0.07 | 0.07 | 0.07 | 0.07 |
Short arm vertical rotation (°) | 135 | 135 | 135 | 135 |
Turntable rotation (°) | 345 Discontinuity | 345 Discontinuity | 345 Discontinuity | 345 Discontinuity |
Maximum climbing capacity-storage | 0.25 | 0.25 | 0.25 | 0.25 |
Tire (in) | 15x5 | 15x5 | 15x5 | 15x5 |
Drive Type | Two-wheel hydraulic drive | Two-wheel hydraulic drive | Two-wheel hydraulic drive | Two-wheel hydraulic drive |
Braking type | Two-wheel hydraulic drive | Two-wheel hydraulic drive | Two-wheel hydraulic drive | Two-wheel hydraulic drive |
The power unit (V/kw) | 24/3.0 | 24/3.0 | 24/3.0 | 24/3.0 |
The power source (V/Ah) | 24/240 | 24/240 | 24/240 | 24/240 |
Operating weight(kg) | 2500 | 2600 | 2700 | 2800 |
