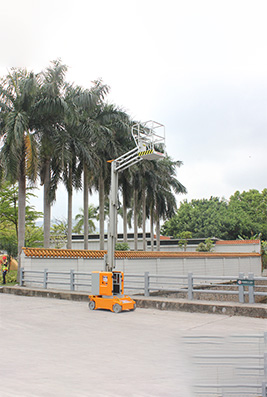

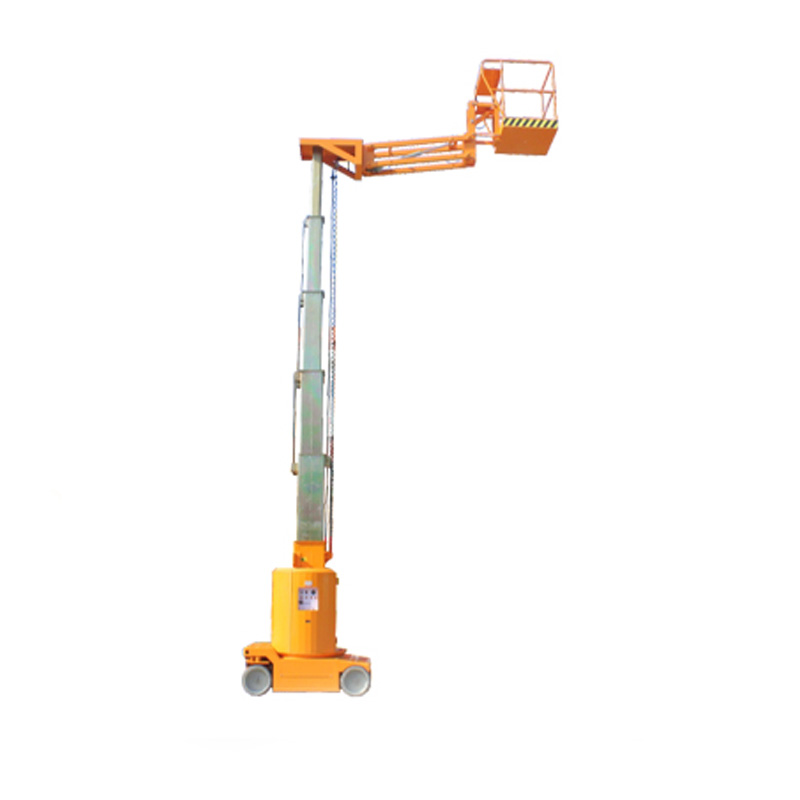

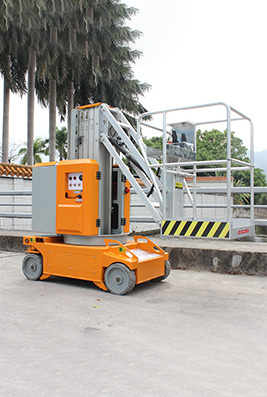

Self-propelled Mast Folding Boom Lifts
GTWY sequence Self-propelled mast kind Crankshaft aerial work platform makes many tough and risky jobs easier. This aerial elevate platform is characterized by means of compactness, flexibility and convenience. You can exchange indoor scaffolding and mountain climbing ladders with one lifting platform to attain the top you want and remedy your problems. At the identical time, it can additionally keep your price and precious time. It is particularly appropriate for non-stop high-altitude operation in a large places such as airport terminals, stations, docks, purchasing malls, stadiums, neighborhood homes and workshops.
Product Features:
1. High-standard structure
a)Adopt a high-strength customized chain that is 10 instances greater than the sketch standard
b) Built-in slider design, made of ultra-high polymer polyethylene, higher stability
c) Use Liaoning "Zhongwang" company aluminum profile (customized type)
2. Power failure self-locking function
It will be routinely locked at the time of energy failure or surprising electricity failure.
3. Green environmental safety
As the desktop adopts DC battery power, the laptop can be safely and quietly appropriate for indoor or outside work.
4. Emergency device
Set with emergency descent gadget
Product Parameters:
Model | GTWY-6Z | GTWY-7Z | GTWY-8Z | GTWY-9Z |
Maximum working height (m) | 7.8 | 8.8 | 10 | 11 |
Maximum platform height (m) | 5.8 | 6.8 | 8 | 9 |
Maximum horizontal extension (m) | 3 | 3 | 3 | 3 |
Maximum spanning height (m) | 4.6 | 5.6 | 6.8 | 7.8 |
Working platform size (m) | 0.69x0.65 | 0.69x0.65 | 0.69x0.65 | 0.69x0.65 |
Rated load (kg) | 200 | 200 | 200 | 200 |
Collection length (m) | 2.85 | 2.85 | 2.85 | 2.85 |
Collection width (m) | 1 | 1 | 1 | 1 |
Collection height (m) | 1.99 | 1.99 | 1.99 | 1.99 |
Guardrail height (m) | 1.1 | 1.1 | 1.1 | 1.1 |
Turning radius - outside diameter (m) | 2 | 2 | 2 | 2 |
Wheelbase (m) | 1.23 | 1.23 | 1.23 | 1.23 |
Ground clearance (m) | 0.07 | 0.07 | 0.07 | 0.07 |
Short arm vertical rotation (°) | 135 | 135 | 135 | 135 |
Turntable rotation (°) | 345 Discontinuity | 345 Discontinuity | 345 Discontinuity | 345 Discontinuity |
Maximum climbing capacity-storage | 0.25 | 0.25 | 0.25 | 0.25 |
Tire (in) | 15x5 | 15x5 | 15x5 | 15x5 |
Drive Type | Two-wheel hydraulic drive | Two-wheel hydraulic drive | Two-wheel hydraulic drive | Two-wheel hydraulic drive |
Braking type | Two-wheel hydraulic drive | Two-wheel hydraulic drive | Two-wheel hydraulic drive | Two-wheel hydraulic drive |
The power unit (V/kw) | 24/3.0 | 24/3.0 | 24/3.0 | 24/3.0 |
The power source (V/Ah) | 24/240 | 24/240 | 24/240 | 24/240 |
Operating weight(kg) | 2500 | 2600 | 2700 | 2800 |
