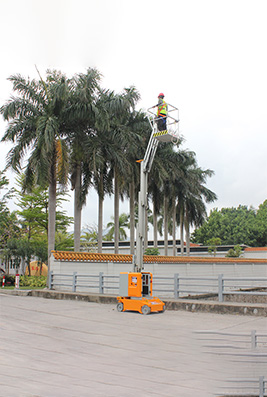

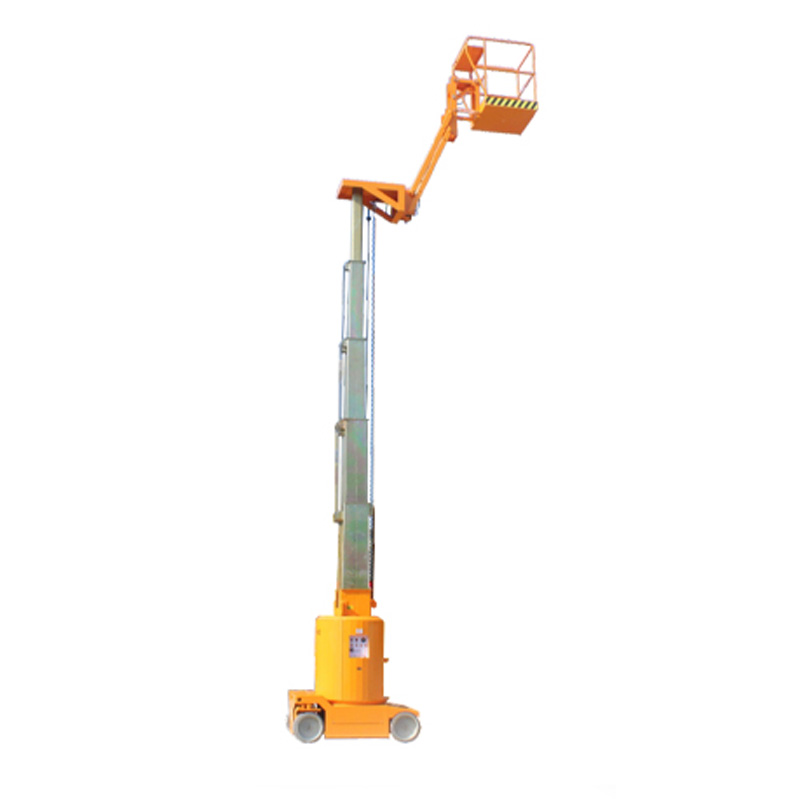

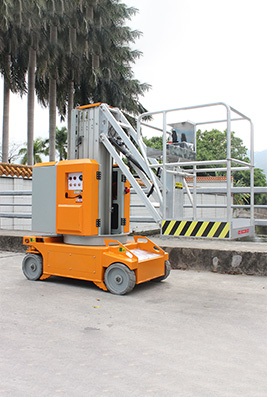

Self-propelled Mast Folding Arm Lift
GTWY collection Self-propelled mast kind Crankshaft aerial work platform makes many hard and risky jobs easier. This aerial elevate platform is characterized by means of compactness, flexibility, and convenience. You can change indoor scaffolding and hiking ladders with one lifting platform to attain the top you want and resolve your problems. At an equal time, it can additionally keep your fee and treasured time. It is mainly appropriate for non-stop high-altitude operations in a large vicinity such as airport terminals, stations, docks, buying malls, stadiums, neighborhood houses, and workshops.
Product Features:
1. Large-angle steering system
Adopt the principle of differential steering and design a 0-angle steering system, which makes the machine excellent flexibility.
2. Intelligent charging system
Equipped with a fully automatic charger, it can automatically complete the whole process of charging and will automatically stop charging after the battery is full.
3. Extension platform (This is an optional item)
The working platform can be moved out, which expands the working range and can meet the special needs of most customers.
Product Parameters:
Model | GTWY-6Z | GTWY-7Z | GTWY-8Z | GTWY-9Z |
Maximum working height (m) | 7.8 | 8.8 | 10 | 11 |
Maximum platform height (m) | 5.8 | 6.8 | 8 | 9 |
Maximum horizontal extension (m) | 3 | 3 | 3 | 3 |
Maximum spanning height (m) | 4.6 | 5.6 | 6.8 | 7.8 |
Working platform size (m) | 0.69x0.65 | 0.69x0.65 | 0.69x0.65 | 0.69x0.65 |
Rated load (kg) | 200 | 200 | 200 | 200 |
Collection length (m) | 2.85 | 2.85 | 2.85 | 2.85 |
Collection width (m) | 1 | 1 | 1 | 1 |
Collection height (m) | 1.99 | 1.99 | 1.99 | 1.99 |
Guardrail height (m) | 1.1 | 1.1 | 1.1 | 1.1 |
Turning radius - outside diameter (m) | 2 | 2 | 2 | 2 |
Wheelbase (m) | 1.23 | 1.23 | 1.23 | 1.23 |
Ground clearance (m) | 0.07 | 0.07 | 0.07 | 0.07 |
Short arm vertical rotation (°) | 135 | 135 | 135 | 135 |
Turntable rotation (°) | 345 Discontinuity | 345 Discontinuity | 345 Discontinuity | 345 Discontinuity |
Maximum climbing capacity-storage | 0.25 | 0.25 | 0.25 | 0.25 |
Tire (in) | 15x5 | 15x5 | 15x5 | 15x5 |
Drive Type | Two-wheel hydraulic drive | Two-wheel hydraulic drive | Two-wheel hydraulic drive | Two-wheel hydraulic drive |
Braking type | Two-wheel hydraulic drive | Two-wheel hydraulic drive | Two-wheel hydraulic drive | Two-wheel hydraulic drive |
The power unit (V/kw) | 24/3.0 | 24/3.0 | 24/3.0 | 24/3.0 |
The power source (V/Ah) | 24/240 | 24/240 | 24/240 | 24/240 |
Operating weight(kg) | 2500 | 2600 | 2700 | 2800 |
