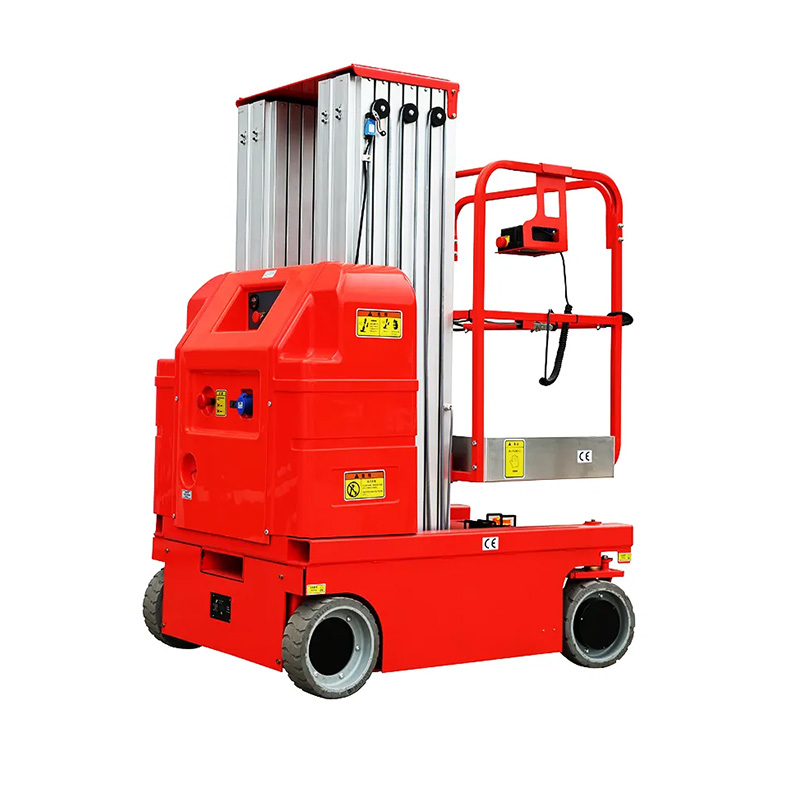

Self-propelled Mast Aerial Working Platform (Single Mast)
MG series fully self-propelled mast aerial work platform makes many difficult and dangerous jobs easier. This aerial lift platform is characterized by compactness, flexibility and convenience. Instead of indoor scaffolding and climbing ladders, one platform can be used to reach the height you need and solve your problems. At the same time, it can also save you costs and valuable time. It is especially suitable for continuous high-altitude operation in a larger areas such as airport terminals, stations, docks, shopping malls, stadiums, community properties and workshops.
Product Features:
1. Safety certification
Comply with the EU EN280 standard and obtain CE certification.
2. High-altitude work can walk
It has the function of automatic walking and can be done in different working conditions, fast, and slow walking, only one person in the aerial work can operate the machine to continuously complete the lifting, forward, backward, turning and other actions, compared with the traditional hydraulic platform greatly improve the efficiency, reduce the number of operators and labor intensity.
3. Stepless variable speed
Only one person needs to operate it, all the movements are controlled by the operating handle on the workbench, and the motor is steplessly variable speed. Effectively prolong the service life of the battery and motor, the motor only consumes energy when working.
Technical Parameters:
Machine Model | MG600-1S | MG750-1S | |
Platform load capacity | 125Kg | 125Kg | |
Working height | 8m | 9.5m | |
Maximum height of the platform | 6m | 7.5m | |
Overall Dimension | L1.36*W0.79*H2.08m | L1.36*W0.79*H2.08m | |
Platform size | 0.78*0.7m | 0.78*0.7m | |
Climbing degree | 0.25 | 0.25 | |
Maximum Allowable Angle | 1.5° | 1.5° | |
Min. turning radius | 0 | 0 | |
Travel speed | Retracted state | 3km/h | 3km/h |
Raise or extend state | 0.5km/h | 0.5km/h | |
Ground clearance | 0.05m | 0.05m | |
Drive wheel size | φ0.25*0.08 | φ0.25*0.08 | |
Drive motor | 2*24V/0.4kw | 2*24V/0.4kw | |
Lifting motor | 24V/1.1kw | 24V/1.1kw | |
Maintenance-free battery | 2*12V/105A | 2*12V/105A | |
Charger | 24V/12A | 24V/12A | |
Weight | 880kg | 910kg |
