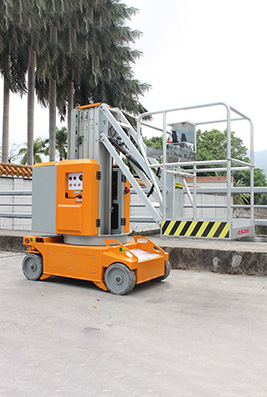

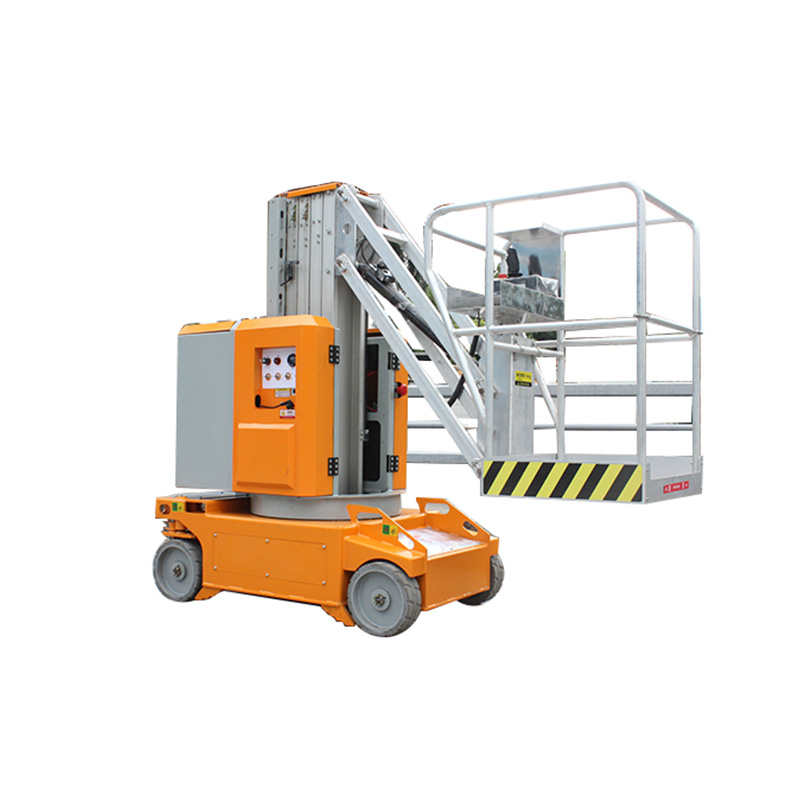

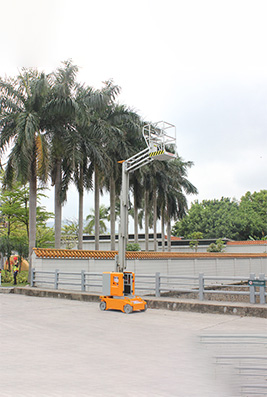

Self-propelled Mast Type Crankshaft Aerial Work Platform
GTWY series Self-propelled mast-type Crankshaft aerial work platform makes many difficult and dangerous jobs easier. This aerial lift platform is characterized by compactness, flexibility and convenience. You can replace indoor scaffolding and climbing ladders with one lifting platform to reach the height you need and solve your problems. At the same time, it can also save you costs and valuable time. It is especially suitable for continuous high-altitude operation in a larger areas such as airport terminals, stations, docks, shopping malls, stadiums, community properties and workshops.
Product Features:
1. Safety Certification
Comply with the EU EN280 standard and obtain CE certification.
2. Aerial work can walk
It has the function of automatic walking and can be in different working conditions to fast or slow walking. Only one person in the aerial work can operate the machine to continuously complete the lifting, forward, backward, turning and other actions. Compared with the traditional hydraulic platform, it greatly improves efficiency and reduce the number of operators and labor intensity.
3. Steeples variable speed
Only one person is needed to operate, all the movements are controlled by the operating handle on the workbench. The motor steeples variable speed and effectively prolongs the service life of the battery and motor. The motor only consumes energy when working.
Product Parameters:
Model | GTWY-6Z | GTWY-7Z | GTWY-8Z | GTWY-9Z |
Maximum working height (m) | 7.8 | 8.8 | 10 | 11 |
Maximum platform height (m) | 5.8 | 6.8 | 8 | 9 |
Maximum horizontal extension (m) | 3 | 3 | 3 | 3 |
Maximum spanning height (m) | 4.6 | 5.6 | 6.8 | 7.8 |
Working platform size (m) | 0.69x0.65 | 0.69x0.65 | 0.69x0.65 | 0.69x0.65 |
Rated load (kg) | 200 | 200 | 200 | 200 |
Collection length (m) | 2.85 | 2.85 | 2.85 | 2.85 |
Collection width (m) | 1 | 1 | 1 | 1 |
Collection height (m) | 1.99 | 1.99 | 1.99 | 1.99 |
Guardrail height (m) | 1.1 | 1.1 | 1.1 | 1.1 |
Turning radius - outside diameter (m) | 2 | 2 | 2 | 2 |
Wheelbase (m) | 1.23 | 1.23 | 1.23 | 1.23 |
Ground clearance (m) | 0.07 | 0.07 | 0.07 | 0.07 |
Short arm vertical rotation (°) | 135 | 135 | 135 | 135 |
Turntable rotation (°) | 345 Discontinuity | 345 Discontinuity | 345 Discontinuity | 345 Discontinuity |
Maximum climbing capacity-storage | 0.25 | 0.25 | 0.25 | 0.25 |
Tire (in) | 15x5 | 15x5 | 15x5 | 15x5 |
Drive Type | Two-wheel hydraulic drive | Two-wheel hydraulic drive | Two-wheel hydraulic drive | Two-wheel hydraulic drive |
Braking type | Two-wheel hydraulic drive | Two-wheel hydraulic drive | Two-wheel hydraulic drive | Two-wheel hydraulic drive |
The power unit (V/kw) | 24/3.0 | 24/3.0 | 24/3.0 | 24/3.0 |
The power source (V/Ah) | 24/240 | 24/240 | 24/240 | 24/240 |
Operating weight(kg) | 2500 | 2600 | 2700 | 2800 |
