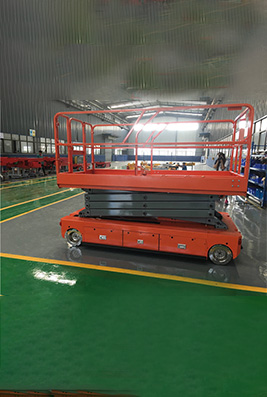

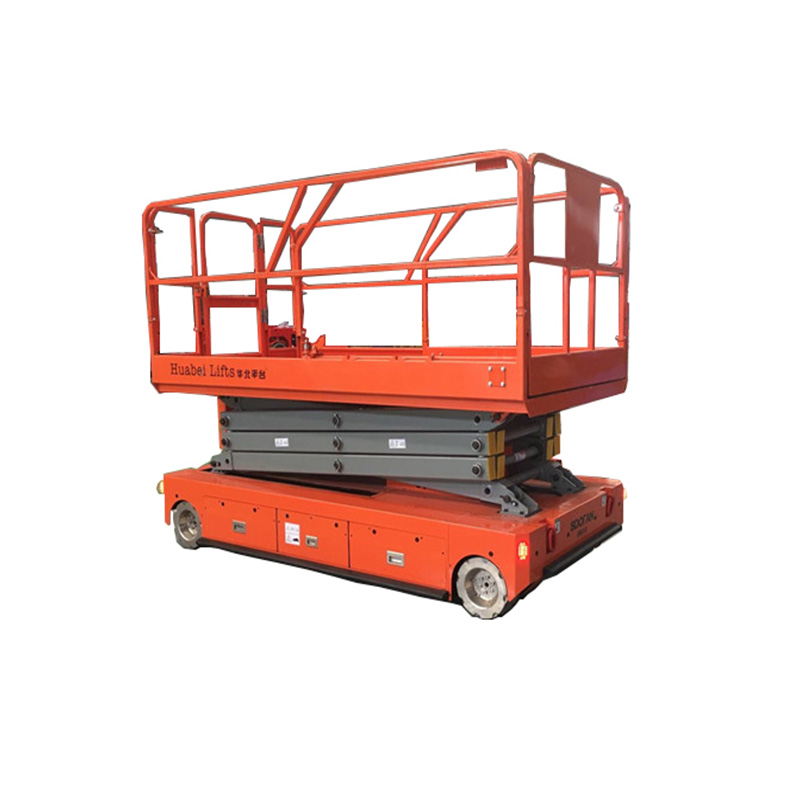

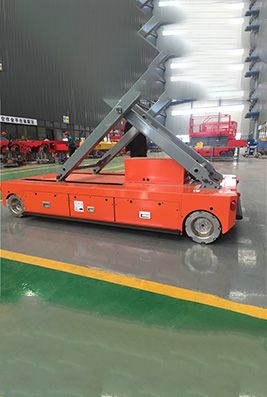

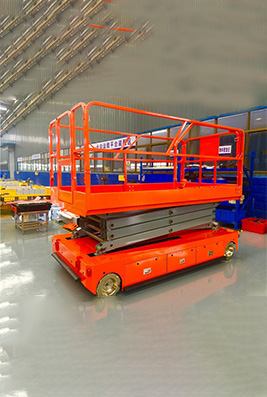

Omnidirectional Scissor Fork Aerial Working Platform
SDOFAN omnidirectional self-propelled scissor fork aerial work platform is an omnidirectional mobile lifting work platform specially tailored for large workshops, warehouses and other places for working at heights of up to ten meters, the electric front extension platform provides a larger working area for easy docking of work points to achieve precise positioning and assembly, greatly simplifying the assembly process, enhancing operability and reducing This platform incorporates the omnidirectional drive technology of McNamee wheel on the basis of traditional aerial work platform to realize the advantages of forward, backward, translation, lateral movement and in-situ rotation in any direction in the plane, which makes many difficult and dangerous jobs more accessible, such as indoor and outdoor cleaning (ceiling, curtain wall, glass window, eaves, canopy, chimney, etc.), billboard installation and maintenance, street light and traffic sign installation and maintenance, etc. Its compactness, flexibility, and convenience characterize this aerial lift platform. You can use a lifting platform instead of scaffolding to reach the height you need and solve your problems. At the same time, it can also save you costs and valuable time.
Product Features:
(1) Safety certification
Comply with the EU EN280 standard and obtain CE certification.
(2) Aerial work can walk
P3104-3JQ1000 omnidirectional self-propelled scissors aerial work platform, which has the function of automatic walking, can be in different working conditions, fast, slow walking, only one person in the aerial work can operate the machine to continuously complete the lifting, forward, backward, turning and other actions, compared with the traditional hydraulic platform greatly improve the efficiency of work, reduce the number of operators and labor intensity. Especially suitable for airport terminals, stations, docks, shopping malls, stadiums, community properties, factories and mines workshops and other large continuous work at height.
(3) Safety protection
P3104-3JQ1000 omnidirectional self-propelled scissor aerial working platform is equipped with a safety plate device in the lower part of the bottom car, as soon as the platform is raised, the safety plate on both sides will be opened to work. The
GTJZ-8A aerial working platform is equipped with an oil pipe explosion-proof system at the oil cylinder.
Technical Parameters:
Model | P2004-2JQ300 | P2504-3JQ400 | P3104-5JQ600 | P3104-5JQ800 | P3104-3JQ1000 |
Overall Dimension(L)mm | 1500 | 1850 | 2470 | 2470 | 2470 |
Overall dimension(width)mm | 800 | 850 | 1400 | 1400 | 1400 |
Overall dimension(height)mm | 2030 | 2030 | 2030 | 2130 | 2300 |
Guardrail folding collection | 1680 | 1680 | 1400 | 1550 | 1820 |
Maximum platform height(mm) | 3000 | 4000 | 6000 | 8000 | 10000 |
Platform bearing | 200 | 300 | 500 | 500 | 300 |
Maximum working number)(pcs) | 2 | 2 | 2 | 2 | 2 |
Maximum horizontal | 900 | 900 | 900 | 900 | 900 |
Platform sliding | 110 | 110 | 110 | 110 | 110 |
Minimum ground clearance(mm) | 100 | 100 | 100 | 100 | 100 |
Self-weight of equipment(kg) | 880 | 1100 | 2000 | 3100 | 3300 |
Wheel diameter(mm) | 203(8") | 254(10") | 310(12") | 310(12") | 310(12") |
Single wheel | 500 | 800 | 1000 | 1000 | 1000 |
Number of wheels(PC/S) | 4 | ||||
Number of drive motors(pcs) | 4 | ||||
Minimum turning radius | 0m | ||||
Moving speed | 0-0.8m/s adjustable | ||||
Positioning accuracy | ±5mm | ||||
Control mode | Wired/wireless optional | ||||
Safety protection | Ultrasonic/infrared / safety touch edge/laser obstacle avoidance optional | ||||
Braking method | Parking brake/control unlock / electronic brake / mechanical brake optional | ||||
Climbing angle | ≤10° | ||||
Battery type | Lead-acid power battery | ||||
Endurance (full load) | 6h | ||||
Endurance (no load) | 10h | ||||
Charging method | Wired high-power charger | ||||
Protection level | IP54 | ||||
Working environment | Temperature: -10℃~+55℃; Humidity: ≤95%,. | ||||
Storage environment | Temperature: -15℃~+75℃; Humidity: ≤95% | ||||
Note: The above parameters are for reference only, according to the actual signed technical agreement | |||||
| Model | P2004-2JQ300 | P2504-3JQ400 | P3104-5JQ600 | P3104-5JQ800 | P3104-3JQ1000 |
| Overall Dimension(L)mm | 1500 | 1850 | 2470 | 2470 | 2470 |
| Overall dimension(width)mm | 800 | 850 | 1400 | 1400 | 1400 |
| Overall dimension(height)mm | 2030 | 2030 | 2030 | 2130 | 2300 |
| Guardrail folding collection size(H)mm | 1680 | 1680 | 1400 | 1550 | 1820 |
| Maximum platform height(mm) | 3000 | 4000 | 6000 | 8000 | 10000 |
| Platform bearing capacity (kg) | 200 | 300 | 500 | 500 | 300 |
| Maximum working number)(pcs) | 2 | 2 | 2 | 2 | 2 |
| Maximum horizontal extension(mm) | 900 | 900 | 900 | 900 | 900 |
| Platform sliding extension load(kg) | 110 | 110 | 110 | 110 | 110 |
| Minimum ground clearance(mm) | 100 | 100 | 100 | 100 | 100 |
| Self-weight of equipment(kg) | 880 | 1100 | 2000 | 3100 | 3300 |
| Wheel diameter(mm) | 203(8") | 254(10") | 310(12") | 310(12") | 310(12") |
| Single wheel carrying capacity(kg) | 500 | 800 | 1000 | 1000 | 1000 |
| Number of wheels(PC/S) | 4 | ||||
| Number of drive motors(pcs) | 4 | ||||
| Minimum turning radius | 0m | ||||
| Moving speed | 0-0.8m/s adjustable | ||||
| Positioning accuracy | ±5mm | ||||
| Control mode | Wired/wireless optional | ||||
| Safety protection | Ultrasonic / infrared / safety touch edge / laser obstacle avoidance optional | ||||
| Braking method | Parking brake / control unlock / electronic brake / mechanical brake optional | ||||
| Climbing angle | ≤10° | ||||
| Battery type | Lead-acid power battery | ||||
| Endurance (full load) | 6h | ||||
| Endurance (no load) | 10h | ||||
| Charging method | Wired high power charger | ||||
| Protection level | IP54 | ||||
| Working environment | Temperature: -10℃~+55℃; Humidity: ≤95%,. | ||||
| Storage environment | Temperature：-15℃~+75℃；Humidity：≤95% | ||||
| Note: The above parameters are for reference only, according to the actual signed technical agreement configuration shall prevail. | |||||
