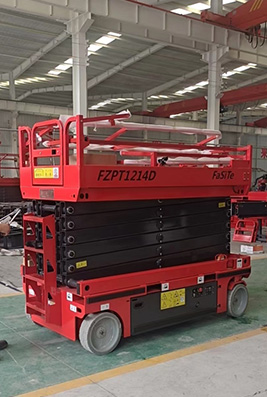

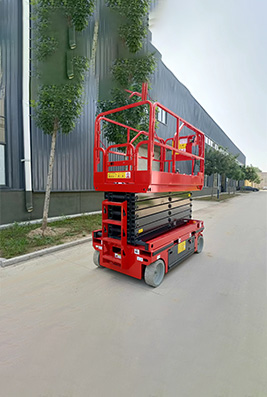

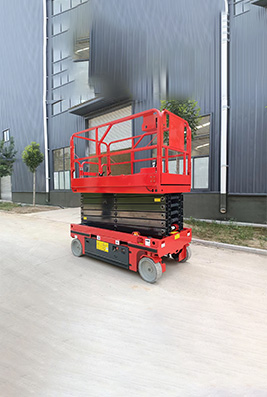

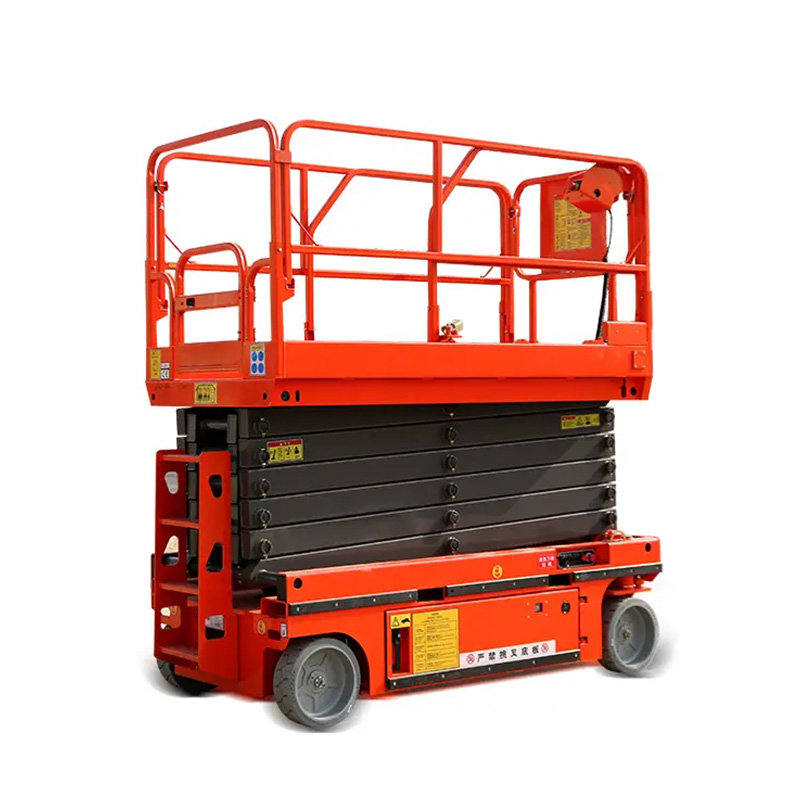

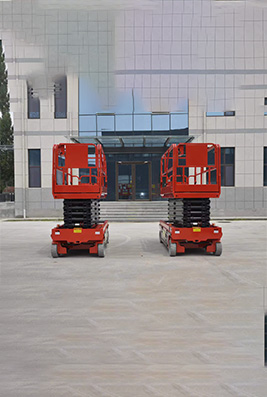

Self-propelled Scissors Lifting Platform For Sale
GTJZ self-scissor type aerial work platform makes many difficult and dangerous jobs easier, such as indoor and outdoor cleaning (ceiling, curtain wall, glass window, eaves, awning, chimney, etc.), installation and maintenance of billboards, installation and maintenance of street lamps and traffic signs, etc. This high-altitude lifting platform is characterized by being small, flexible, convenient and fast. You can use a lifting platform instead of scaffolding to reach the height you need and solve your problems. At the same time, it can save you expenses and valuable time.
Application:
GTJZ self-scissor type aerial work platform is controlled up and down and electrically lifted. This aerial lifting platform is small, flexible, convenient and fast. You can use a lifting platform instead of a scaffold to reach the height you need and solve your problems. At the same time, it can save you expenses and valuable time. This series of elevators are widely used for lifting operations in municipal, electric power, street lamps, highways, docks, advertisements, gardens, residential property, factories, mining enterprises, workshops and other industries.
Product Features:
(1) Security certification
Conform to the EU EN280 standard and obtain CE certification.
(2) Walk when working at heights
GTJZ scissor fork self-propelled aerial work platform has the function of automatic walking. It can walk fast and slowly under different working conditions. Only one person can operate the machine to continuously complete lifting, advancing, retreating, steering and other actions when working at heights. Compared with traditional hydraulic platforms, it greatly improves working efficiency and reduces the number of operators and labor intensity. It is especially suitable for continuous high-altitude operations in airport terminals, stations, docks, shopping malls, stadiums, residential properties, factories, mines and workshops.
(3) Security protection
A level alarm is installed on the machine. When the vehicle inclines more than 3 degrees in all directions, the machine will automatically enter the protection system. Only the machine is allowed to descend and can be used normally after it reaches a safe state. GTJZ-type aerial working platform is equipped with a safety plate device at the lower part of the bottom car. As long as the platform is raised, the safety plates at both sides will be opened immediately to work, reducing the distance from the ground to avoid overturning accidents caused by the uneven ground when walking high above the ground. GTJZ aerial work platform is equipped with an oil pipe explosion-proof system at the oil cylinder.
Technical Parameters:
Model | GTJZ-05M | GTJZ-06M | GTJZ-08C |
Maximum working height (m) | 5 | 6 | 7.8 |
Maximum lifting height (m) | 3 | 3.9 | 5.8 |
Platform load (kg) | 240 | 240 | 230 |
Maximum horizontal extension(m) | 550 | 550 | 900 |
Platform sliding extension load(kg) | 100 | 100 | 110 |
Platform size (L x W) (mm) | 1150×750 | 1150×750 | 1640×750 |
Collection size (L x W x H)(mm) | 1280×760×1800 | 1280×760×1800 | 1850×750×1980 |
Folding height of the platform(mm) | N/A | N/A | 1780 |
Wheelbase (mm) | 1000 | 1000 | 1320 |
Hydraulic oil tank capacity (L) | 10 | 10 | 15 |
Gradeability (%) | 0.25 | 0.25 | 0.3 |
Center ground clearance (m) | 0.06 | 0.06 | 0.06 |
Inner rotation radius (mm) | 0 | 0 | 0 |
Outside rotation radius (mm) | 1000 | 1000 | 1560 |
Maximum number of passengers | 2 | 2 | 2 |
Rise/fall time (s) | 45213 | 13/17 | 20/24 |
Driving speed (stowed) (km/h) | 3 | 3 | 3.4 |
Driving speed (lifting status)(km/h) | 0.8 | 0.8 | 0.7 |
Power source（V/Ah） | 2*12/60 | 2*12/60 | 4*6/225 |
Tire size | Solid without mark 230 | Solid without mark 230 | 12x4.5x8 inch |
Operating Weight (kg) | 550 | 560 | 1290 |
Model | GTJZ-08B | GTJZ-10B | GTJZ-08A |
Maximum working height (m) | 8 | 10 | 8 |
Maximum lifting height (m) | 6 | 8 | 6 |
Platform load (kg) | 350 | 230 | 500 |
Maximum horizontal extension(m) | 910 | 910 | 910 |
Platform sliding extension load(kg) | 120 | 120 | 120 |
Platform size (L x W) (mm) | 2250×750 | 2250×750 | 2300×1170 |
Collection size (L x W x H)(mm) | 2420×800×2200 | 2420×800×2300 | 2470×1180×2030 |
Folding height of the platform(mm) | 1730 | 1860 | 1400 |
Wheelbase (mm) | 1850 | 1850 | 1850 |
Hydraulic oil tank capacity (L) | 15 | 15 | 20 |
Gradeability (%) | 0.3 | 0.3 | 0.3 |
Center ground clearance (m) | 0.1 | 0.1 | 0.1 |
Inner rotation radius (mm) | 0 | 0 | 0 |
Outside rotation radius (mm) | 2120 | 2120 | 2300 |
Maximum number of passengers | 2 | 2 | 3 |
Rise/fall time (s) | 28/54 | 28/40 | 45/35 |
Driving speed (stowed) (km/h) | 3.4 | 3.5 | 3.5 |
Driving speed (lifting status)(km/h) | 0.7 | 0.8 | 0.8 |
A power source （V/Ah） | 4*6/225 | 4*6/225 | 4*6/225 |
Tire size | 15x5x11 inch | 15x5x11 inch | 15x5x11 inch |
Operating Weight (kg) | 1985 | 2140 | 1936 |
Model | GTJZ-10A | GTJZ-12A | GTJZ-14A |
Maximum working height (m) | 10 | 11.75 | 13.75 |
Maximum lifting height (m) | 8 | 9.75 | 11.75 |
Platform load (kg) | 450 | 320 | 320 |
Maximum horizontal extension(m) | 910 | 910 | 910 |
Platform sliding extension load(kg) | 120 | 120 | 120 |
Platform size (L x W) (mm) | 2300×1170 | 2300×1170 | 2300×1170 |
Collection size (L x W x H)(mm) | 2470×1180×2130 | 2470×1180×2300 | 2470×1180×2570 |
Folding height of the platform(mm) | 1550 | 1820 | 1920 |
Wheelbase (mm) | 1850 | 1850 | 1850 |
Hydraulic oil tank capacity (L) | 20 | 25 | 25 |
Gradeability (%) | 0.3 | 0.25 | 0.25 |
Center ground clearance (m) | 0.1 | 0.1 | 0.1 |
Inner rotation radius (mm) | 0 | 0 | 0 |
Outside rotation radius (mm) | 2300 | 2300 | 2300 |
Maximum number of passengers | 3 | 2 | 2 |
Rise/fall time (s) | 50/35 | 60/45 | 70/55 |
Driving speed (stowed) (km/h) | 3.5 | 3.5 | 3.5 |
Driving speed (lifting status)(km/h) | 0.8 | 0.8 | 0.8 |
Power source（V/Ah） | 4*6/225 | 4*6/225 | 4*6/225 |
Tire size | 15x5x11 inch | 15x5x11 inch | 15x5x11 inch |
Operating Weight (kg) | 2245 | 2490 | 3032 |
Wheelbase (mm) | 1850 | 1850 | 1850 |
Model | GTJZ-16A | GTJZ-10LD | GTJZ-10WX |
Maximum working height (m) | 15.7 | 10 | 10 |
Maximum lifting height (m) | 13.7 | 8 | 8 |
Platform load (kg) | 220 | 450 | 450 |
Maximum horizontal extension(m) | 900 | 910 | 910 |
Platform sliding extension load(kg) | 110 | 120 | 120 |
Platform size (L x W) (mm) | 2640×1120 | 2300×1170 | 2300×1170 |
Collection size (L x W x H)(mm) | 2850×1400×2600 | 2500×1350×2060 | 2470×1180×2130 |
Folding height of the platform (mm) | 2130 | 1500 | 1550 |
Wheelbase (mm) | 2220 | 0 | 1850 |
Hydraulic oil tank capacity (L) | 30 | 25 | 25 |
Gradeability (%) | 0.2 | 0.3 | 0.25 |
Center ground clearance (m) | 0.1 | 0.1 | 0.1 |
Inner rotation radius (m) | 0 | 0 | 0 |
Outside rotation radius (mm) | 2700 | 2300 | 2300 |
Maximum number of passengers | 2 | 2 | 2 |
Rise/fall time (s) | 90/60 | 50/35 | 50/35 |
Driving speed (stowed) (km/h) | 3 | 3 | 3 |
Driving speed (lifting status)(km/h) | 0.8 | 0.8 | 0.8 |
Power source（V/Ah） | 4*6/300 | 4*12/225 | 4*6/225 |

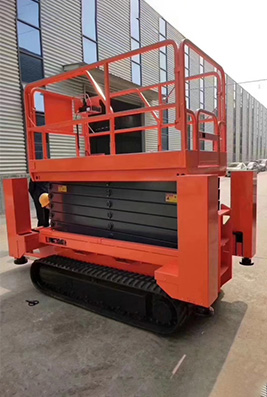

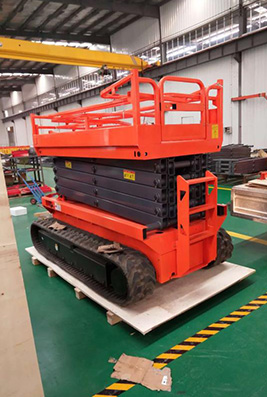

Tire size | 15x5x11inch | LW-200 Low-temperature track | φ381x127 McNamu wheel |
Operating Weight (kg) | 3360 | 2200 | 2300 |
