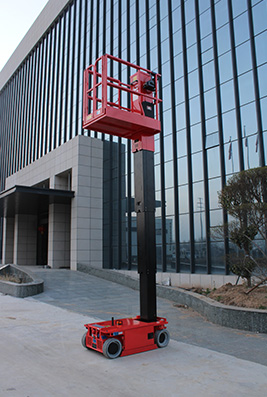

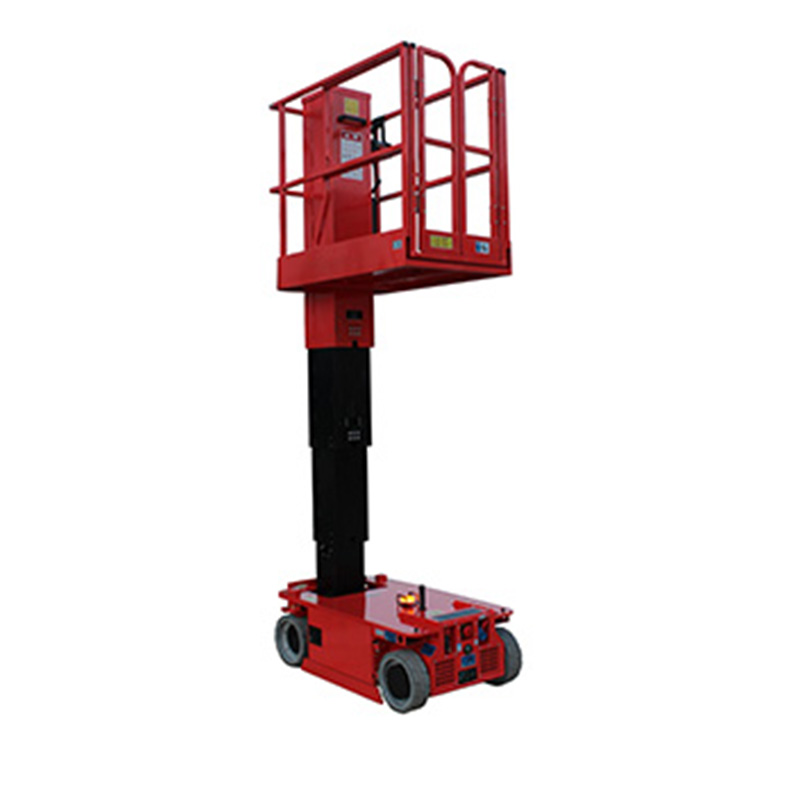

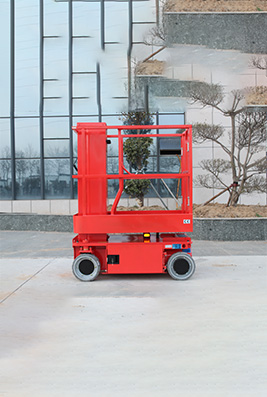

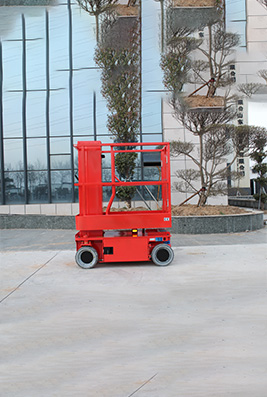

Self Propelled Sleeve Type Lifting Platform
AMWP series self-propelled sleeve-type aerial work platform makes many difficult and dangerous jobs easier. This aerial lift platform is characterized by its compactness, flexibility and convenience, Instead of indoor scaffolding and climbing ladders, a platform can be used to reach the height you need and solve your problems. At the same time, it can also save you costs and valuable time. It is especially suitable for continuous high-altitude operation in a larger areas such as airport terminals, stations, docks, shopping malls, stadiums, community properties and workshops.
Product Features:
1. Safety certification
Comply with the EU EN280 standard and obtain CE certification.
2. Automatic walking
It has the function of automatic walking. It can be in different working conditions, fast, or slow walking, in which only one person in the aerial work can operate the machine to continuously complete the lifting, forward, backward, turning and other actions. Compared with the traditional hydraulic platform, it greatly improves efficiency and reduces the number of operators and labor intensity.
3. Steeples variable speed
Only one person can operate it. All the movements are controlled by the operating handle on the workbench and the motor is steeplessly variable speed. It effectively prolongs the service life of the battery and motor and the motor only consumes energy when working.
Product Parameters:
Model | AMWP3.6-6100 | AMWP4.8-6100 | AMWP6-6100 |
Maximum working height (m) | 5.6 | 6.8 | 8 |
Max. platform height (m) | 3.6 | 4.8 | 6 |
Platform load (kg) | 227 | 227 | 159 |
Extended platform load (kg) | 114 | 114 | 114 |
Platform size (m) | 1.3x0.7 | 1.3x0.7 | 1.28x0.7 |
Length of the extended platform (m) | 0.51 | 0.51 | 0.51 |
Vehicle length (m) | 1.36 | 1.36 | 1.36 |
Vehicle width (m) | 0.76 | 0.76 | 0.82 |
Vehicle height (m) | 1.7 | 1.98 | 1.98 |
Wheelbase (m) | 1.04 | 1.04 | 1.04 |
Minimum inner turning radius (m) | 0.3 | 0.3 | 0.3 |
Minimum outer turning radius (m) | 1.8 | 1.8 | 1.8 |
Speed (closing state) km/h | 4 | 4 | 4 |
Speed (lifting state) km/h | 1.1 | 1.1 | 1.1 |
Ascent/descent time (sec) | 31/32 | 41/42 | 52/53 |
Maximum climbing capacity | 0.25 | 0.25 | 0.25 |
Tire (mm) | 305x100 | 305x100 | 305x100 |
Drive motor (V/kw) | 2x24/0.5 | 2x24/0.5 | 2x24/0.5 |
Lifting motor (V/kw) | 24/1.3 | 24/1.3 | 24/1.3 |
Battery (V/Ah) | 2x12/100 | 2x12/100 | 2x12/100 |
Charger (V/A) | 24/15 | 24/15 | 24/15 |
Operating Weight (kg) | 810 | 980 | 1060 |
