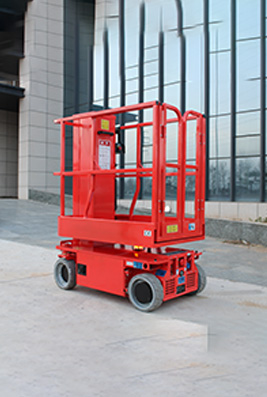

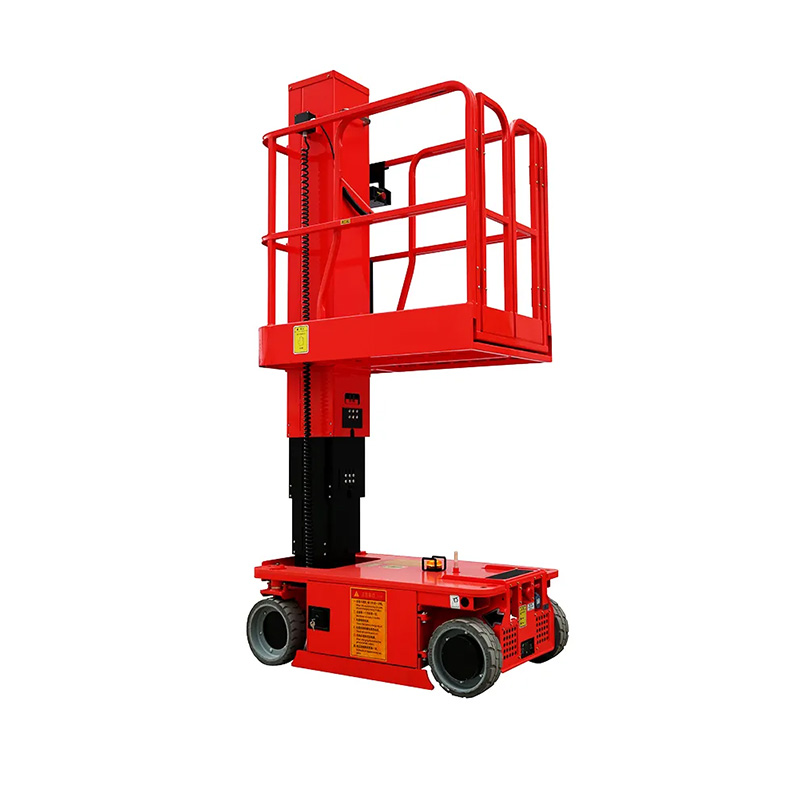

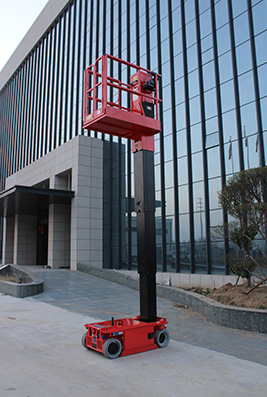

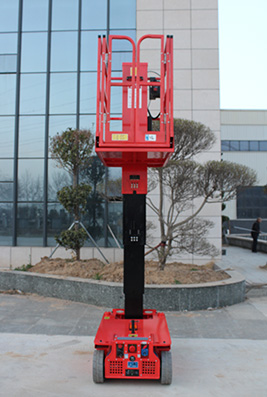

Self Propelled Telescopic Aerial Work Vehicle
AMWP collection self-propelled sleeve kind aerial work platform makes many tough and hazardous jobs easier. This aerial elevate platform is characterized by its compactness, flexibility and convenience, Instead of indoor scaffolding and mountaineering ladders, a platform can be used to attain the peak you want and remedy your problems. At the equal time, it can additionally shop your price and precious time. It is especially appropriate for non-stop high-altitude operations in a large place such as airport terminals, stations, docks, purchasing malls, stadiums, neighborhood houses and workshops.
Product Features:
1. High-standard structure
a) Adopt a high-strength custom-made chain, which is 10 times higher than the design standard
b) Built-in slider design, made of ultra-high polymer polyethylene, better stability
c) Take Liaoning "Zhongwang" brand aluminum profile (customized )
8. Power failure self-locking function
It will be automatically locked at the time of power failure or sudden power failure.
9. Environmental protection
As the machine adopts DC battery power, the machine can be safely and quietly suitable for indoor or outdoor work.
10. Emergency device
Equipped with an emergency descent system
Product Parameters:
Model | AMWP3.6-6100 | AMWP4.8-6100 | AMWP6-6100 |
Maximum working height (m) | 5.6 | 6.8 | 8 |
Max. platform height (m) | 3.6 | 4.8 | 6 |
Platform load (kg) | 227 | 227 | 159 |
Extended platform load (kg) | 114 | 114 | 114 |
Platform size (m) | 1.3x0.7 | 1.3x0.7 | 1.28x0.7 |
Length of the extended platform (m) | 0.51 | 0.51 | 0.51 |
Vehicle length (m) | 1.36 | 1.36 | 1.36 |
Vehicle width (m) | 0.76 | 0.76 | 0.82 |
Vehicle height (m) | 1.7 | 1.98 | 1.98 |
Wheelbase (m) | 1.04 | 1.04 | 1.04 |
Minimum inner turning radius (m) | 0.3 | 0.3 | 0.3 |
Minimum outer turning radius (m) | 1.8 | 1.8 | 1.8 |
Speed (closing state) km/h | 4 | 4 | 4 |
Speed (lifting state) km/h | 1.1 | 1.1 | 1.1 |
Ascent/descent time (sec) | 31/32 | 41/42 | 52/53 |
Maximum climbing capacity | 0.25 | 0.25 | 0.25 |
Tire (mm) | 305x100 | 305x100 | 305x100 |
Drive motor (V/kw) | 2x24/0.5 | 2x24/0.5 | 2x24/0.5 |
Lifting motor (V/kw) | 24/1.3 | 24/1.3 | 24/1.3 |
Battery (V/Ah) | 2x12/100 | 2x12/100 | 2x12/100 |
Charger (V/A) | 24/15 | 24/15 | 24/15 |
Operating Weight (kg) | 810 | 980 | 1060 |
| Model | AMWP3.6-6100 | AMWP4.8-6100 | AMWP6-6100 |
| Maximum working height (m) | 5.6 | 6.8 | 8 |
| Max. platform height (m) | 3.6 | 4.8 | 6 |
| Platform load (kg) | 227 | 227 | 159 |
| Extended platform load (kg) | 114 | 114 | 114 |
| Platform size (m) | 1.3x0.7 | 1.3x0.7 | 1.28x0.7 |
| Length of extended platform (m) | 0.51 | 0.51 | 0.51 |
| Vehicle length (m) | 1.36 | 1.36 | 1.36 |
| Vehicle width (m) | 0.76 | 0.76 | 0.82 |
| Vehicle height (m) | 1.7 | 1.98 | 1.98 |
| Wheelbase (m) | 1.04 | 1.04 | 1.04 |
| Minimum inner turning radius (m) | 0.3 | 0.3 | 0.3 |
| Minimum outer turning radius (m) | 1.8 | 1.8 | 1.8 |
| Speed (closing state) km/h | 4 | 4 | 4 |
| Speed (lifting state) km/h | 1.1 | 1.1 | 1.1 |
| Ascent/descent time (sec) | 31/32 | 41/42 | 52/53 |
| Maximum climbing capacity | 0.25 | 0.25 | 0.25 |
| Tire (mm) | 305x100 | 305x100 | 305x100 |
| Drive motor (V/kw) | 2x24/0.5 | 2x24/0.5 | 2x24/0.5 |
| Lifting motor (V/kw) | 24/1.3 | 24/1.3 | 24/1.3 |
| Battery (V/Ah) | 2x12/100 | 2x12/100 | 2x12/100 |
| Charger (V/A) | 24/15 | 24/15 | 24/15 |
| Operating Weight (kg) | 810 | 980 | 1060 |
