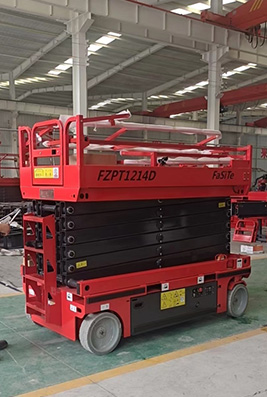

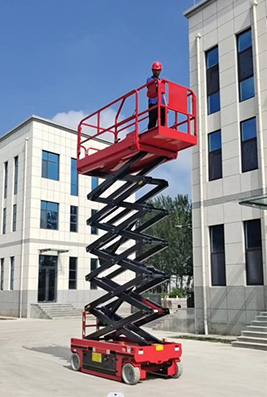

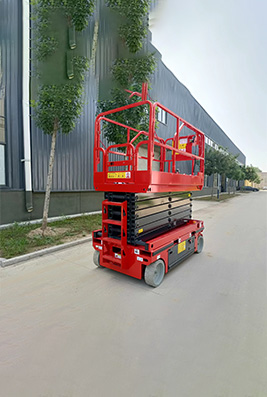

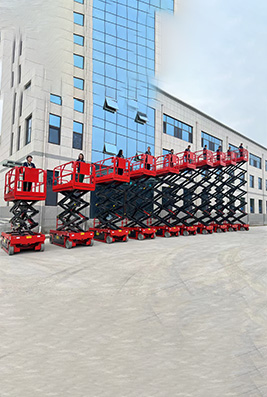

Self-propelled Scissors Aerial Working Platform
GTJZ self scissor kind aerial work platform makes many challenging and unsafe jobs easier, such as indoor and out-of-door cleansing (ceiling, curtain wall, glass window, eaves, awning, chimney, etc.), set up and preservation of billboards, set up and renovation of avenue lamps and site visitors signs, etc. This high-altitude lifting platform is characterized by means of small, flexible, handy and fast. You can use a lifting platform as a substitute for scaffolding to attain the peak you want and remedy your problems. At the identical time, it can shop your fee and treasured time.
Application:
GTJZ self-scissor kind aerial work platform is managed up and down and electrically lifted. This aerial lifting platform is small, flexible, handy and fast. You can use a lifting platform alternatively to a scaffold to attain the peak you want and remedy your problems. At the equal time, it can shop you fees and treasured time. This collection of elevators is broadly used for lifting operations in municipal, electric-powered power, avenue lamps, highways, docks, advertisements, gardens, residential property, factories, mining enterprises, workshops and other industries.
Product Features:
(1) Stepless speed change
GTJZ machine only needs one person to operate, all actions are controlled by the operating handle on the workbench, and the motor is infinitely variable. The service life of the battery and the motor is effectively extended, and the motor only consumes energy during operation.
(2) Large-angle steering system
GTJZ machine is designed with a large angle steering system, which makes the machine excellent flexibility.
(3) Disc brake system
GTJZ lifting platform adopts a hydraulic disc brake system. When the machine is stopped, the wheels are always in the braking state and can be reliably braked on a 6-degree slope.
Technical Parameters:
Model | GTJZ-05M | GTJZ-06M | GTJZ-08C |
Maximum working height (m) | 5 | 6 | 7.8 |
Maximum lifting height (m) | 3 | 3.9 | 5.8 |
Platform load (kg) | 240 | 240 | 230 |
Maximum horizontal extension(m) | 550 | 550 | 900 |
Platform sliding extension load(kg) | 100 | 100 | 110 |
Platform size (L x W) (mm) | 1150×750 | 1150×750 | 1640×750 |
Collection size (L x W x H)(mm) | 1280×760×1800 | 1280×760×1800 | 1850×750×1980 |
Folding height of the platform(mm) | N/A | N/A | 1780 |
Wheelbase (mm) | 1000 | 1000 | 1320 |
Hydraulic oil tank capacity (L) | 10 | 10 | 15 |
Gradeability (%) | 0.25 | 0.25 | 0.3 |
Center ground clearance (m) | 0.06 | 0.06 | 0.06 |
Inner rotation radius (mm) | 0 | 0 | 0 |
Outside rotation radius (mm) | 1000 | 1000 | 1560 |
Maximum number of passengers | 2 | 2 | 2 |
Rise/fall time (s) | 45213 | 13/17 | 20/24 |
Driving speed (stowed) (km/h) | 3 | 3 | 3.4 |
Driving speed (lifting status)(km/h) | 0.8 | 0.8 | 0.7 |
Power source（V/Ah） | 2*12/60 | 2*12/60 | 4*6/225 |
Tire size | Solid without mark 230 | Solid without mark 230 | 12x4.5x8 inch |
Operating Weight (kg) | 550 | 560 | 1290 |
Model | GTJZ-08B | GTJZ-10B | GTJZ-08A |
Maximum working height (m) | 8 | 10 | 8 |
Maximum lifting height (m) | 6 | 8 | 6 |
Platform load (kg) | 350 | 230 | 500 |
Maximum horizontal extension(m) | 910 | 910 | 910 |
Platform sliding extension load(kg) | 120 | 120 | 120 |
Platform size (L x W) (mm) | 2250×750 | 2250×750 | 2300×1170 |
Collection size (L x W x H)(mm) | 2420×800×2200 | 2420×800×2300 | 2470×1180×2030 |
Folding height of the platform(mm) | 1730 | 1860 | 1400 |
Wheelbase (mm) | 1850 | 1850 | 1850 |
Hydraulic oil tank capacity (L) | 15 | 15 | 20 |
Gradeability (%) | 0.3 | 0.3 | 0.3 |
Center ground clearance (m) | 0.1 | 0.1 | 0.1 |
Inner rotation radius (mm) | 0 | 0 | 0 |
Outside rotation radius (mm) | 2120 | 2120 | 2300 |
Maximum number of passengers | 2 | 2 | 3 |
Rise/fall time (s) | 28/54 | 28/40 | 45/35 |
Driving speed (stowed) (km/h) | 3.4 | 3.5 | 3.5 |
Driving speed (lifting status)(km/h) | 0.7 | 0.8 | 0.8 |
The power source （V/Ah） | 4*6/225 | 4*6/225 | 4*6/225 |
Tire size | 15x5x11 inch | 15x5x11 inch | 15x5x11 inch |
Operating Weight (kg) | 1985 | 2140 | 1936 |
Model | GTJZ-10A | GTJZ-12A | GTJZ-14A |
Maximum working height (m) | 10 | 11.75 | 13.75 |
Maximum lifting height (m) | 8 | 9.75 | 11.75 |
Platform load (kg) | 450 | 320 | 320 |
Maximum horizontal extension(m) | 910 | 910 | 910 |
Platform sliding extension load(kg) | 120 | 120 | 120 |
Platform size (L x W) (mm) | 2300×1170 | 2300×1170 | 2300×1170 |
Collection size (L x W x H)(mm) | 2470×1180×2130 | 2470×1180×2300 | 2470×1180×2570 |
Folding height of the platform(mm) | 1550 | 1820 | 1920 |
Wheelbase (mm) | 1850 | 1850 | 1850 |
Hydraulic oil tank capacity (L) | 20 | 25 | 25 |
Gradeability (%) | 0.3 | 0.25 | 0.25 |
Center ground clearance (m) | 0.1 | 0.1 | 0.1 |
Inner rotation radius (mm) | 0 | 0 | 0 |
Outside rotation radius (mm) | 2300 | 2300 | 2300 |
Maximum number of passengers | 3 | 2 | 2 |
Rise/fall time (s) | 50/35 | 60/45 | 70/55 |
Driving speed (stowed) (km/h) | 3.5 | 3.5 | 3.5 |
Driving speed (lifting status)(km/h) | 0.8 | 0.8 | 0.8 |
Power source（V/Ah） | 4*6/225 | 4*6/225 | 4*6/225 |
Tire size | 15x5x11 inch | 15x5x11 inch | 15x5x11 inch |
Operating Weight (kg) | 2245 | 2490 | 3032 |
Wheelbase (mm) | 1850 | 1850 | 1850 |
Model | GTJZ-16A | GTJZ-10LD | GTJZ-10WX |
Maximum working height (m) | 15.7 | 10 | 10 |
Maximum lifting height (m) | 13.7 | 8 | 8 |
Platform load (kg) | 220 | 450 | 450 |
Maximum horizontal extension(m) | 900 | 910 | 910 |
Platform sliding extension load(kg) | 110 | 120 | 120 |
Platform size (L x W) (mm) | 2640×1120 | 2300×1170 | 2300×1170 |
Collection size (L x W x H)(mm) | 2850×1400×2600 | 2500×1350×2060 | 2470×1180×2130 |
Folding height of the platform (mm) | 2130 | 1500 | 1550 |
Wheelbase (mm) | 2220 | 0 | 1850 |
Hydraulic oil tank capacity (L) | 30 | 25 | 25 |
Gradeability (%) | 0.2 | 0.3 | 0.25 |
Center ground clearance (m) | 0.1 | 0.1 | 0.1 |
Inner rotation radius (m) | 0 | 0 | 0 |
Outside rotation radius (mm) | 2700 | 2300 | 2300 |
Maximum number of passengers | 2 | 2 | 2 |
Rise/fall time (s) | 90/60 | 50/35 | 50/35 |
Driving speed (stowed) (km/h) | 3 | 3 | 3 |
Driving speed (lifting status)(km/h) | 0.8 | 0.8 | 0.8 |
Power source（V/Ah） | 4*6/300 | 4*12/225 | 4*6/225 |

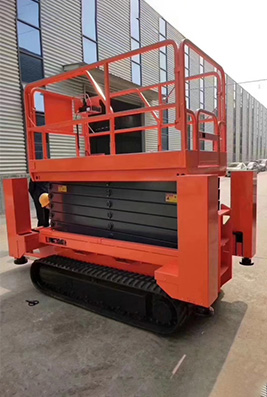

Tire size | 15x5x11inch | LW-200 Low-temperature track | φ381x127 McNamu wheel |
Operating Weight (kg) | 3360 | 2200 | 2300 |
