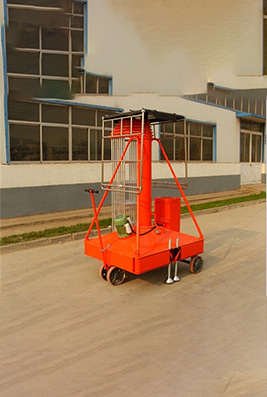

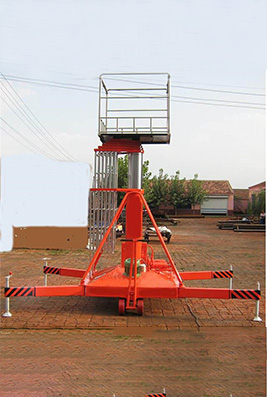

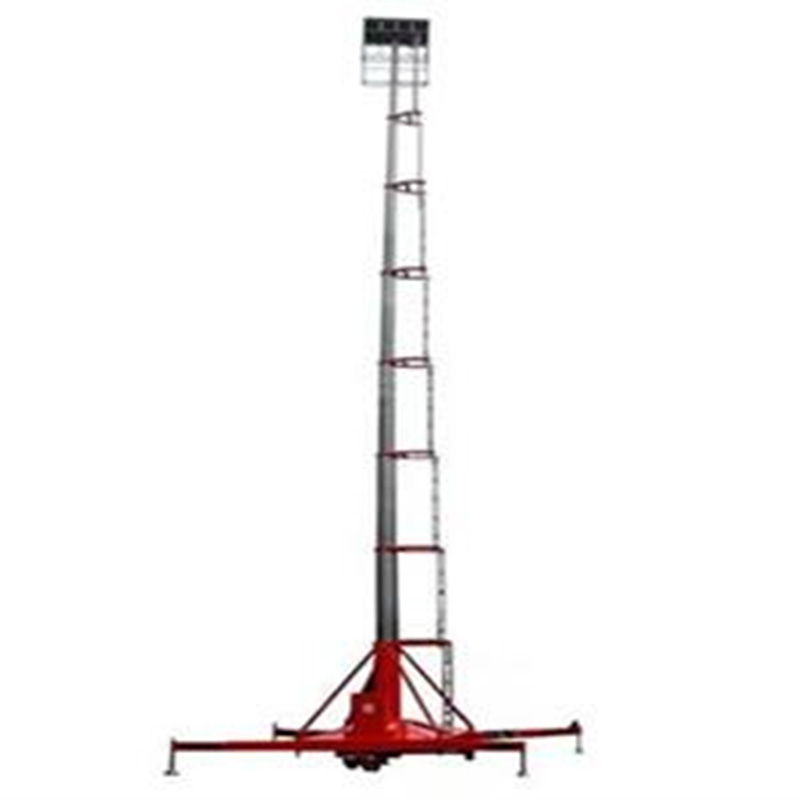

Single Ladder Anti-rotation Sleeve Cylinder Aerial Work Platform
Jacketed aerial work platform: also known as a jacketed lifting platform, it is a multi-purpose aerial work machine. Its function is to send the platform with operators and equipment to the designated height for special engineering equipment for aerial work. This equipment is widely used in industrial and mining workshops, tall halls, warehouses, stations, squares and other high-altitude operations.
Product Features:
The complete machine of single anti-rotation sleeve cylinder type aerial work platform is composed of a forum, telescopic oil cylinder, single ladder or double ladder anti-rotation mechanism, chassis oil tank, outrigger, walking wheel, etc. The platform is directly jacked by the telescopic oil cylinder. When the motor is started, the motor drives the gear pump to supply oil. The oil is input into the oil cylinder through the one-way valve and the electromagnetic channel, and the telescopic oil cylinder rises section by section. When the platform rises to the maximum height, the system pressure also reaches the rated working pressure. There is an overflow valve to unload, and the oil pressure is maintained at a constant operating pressure. After the shutdown, the one-way valve maintains the pressure, and the platform stays at the top working position, The platform can stay at any position below the maximum height according to the working height on site.
Technical Parameters:
Model | GTTY—6A | GTTY—8A | GTTY—10A |
Working height(m) | 8 | 10 | 12 |
Platform height(m) | 6 | 8 | 10 |
Load capacity(kg) | 200 | 200 | 200 |
Collection length(m) | 1.02 | 1.16 | 1.16 |
Collection Width(m) | 0.85 | 0.92 | 1 |
Collection height(m) | 1.8 | 2 | 2.1 |
Platform length(m) | 0.75 | 0.8 | 0.8 |
Platform width(m) | 0.75 | 0.8 | 0.8 |
Height of guardrail(m) | 1 | 1 | 1 |
Wind resistance (level) | 5 | 5 | 5 |
Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
Motor power (kw) | 1.1 | 1.1 | 1.1 |
Walking mode | Manpower implementation | Manpower implementation | Manpower implementation |
System oil pressure | 12Mpa | 12Mpa | 12Mpa |
Rise/fall speed (m/s) | 0.02/0.05 | 0.02/0.05 | 0.02/0.05 |
Operating Weight (kg) | 480 | 580 | 650 |
Model | GTTY—12A | GTTY—14A | GTTY—15A |
Working height(m) | 14 | 16 | 17 |
Platform height(m) | 12 | 14 | 15 |
Load capacity(kg) | 200 | 200 | 200 |
Collection length(m) | 1.4 | 1.4 | 1.4 |
Collection Width(m) | 1.23 | 1.23 | 1.23 |
Collection height(m) | 2.2 | 2.3 | 2.4 |
Platform length(m) | 0.8 | 0.8 | 0.8 |
Platform width(m) | 0.8 | 0.8 | 0.8 |
Height of guardrail(m) | 1 | 1 | 1 |
Wind resistance (level) | 5 | 5 | 5 |
Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
Motor power (kw) | 1.1 | 1.1 | 1.1 |
Walking mode | Manpower implementation | Manpower implementation | Manpower implementation |
System oil pressure | 12Mpa | 12Mpa | 12Mpa |
Rise/fall speed (m/s) | 0.02/0.05 | 0.02/0.05 | 0.02/0.05 |
Operating Weight (kg) | 900 | 1075 | 1200 |
| Model | GTTY—6A | GTTY—8A | GTTY—10A |
| Working height(m) | 8 | 10 | 12 |
| Platform height(m) | 6 | 8 | 10 |
| Load capacity(kg) | 200 | 200 | 200 |
| Collection length(m) | 1.02 | 1.16 | 1.16 |
| Collection Width(m) | 0.85 | 0.92 | 1 |
| Collection height(m) | 1.8 | 2 | 2.1 |
| Platform length(m) | 0.75 | 0.8 | 0.8 |
| Platform width(m) | 0.75 | 0.8 | 0.8 |
| Height of guardrail(m) | 1 | 1 | 1 |
| Wind resistance (level) | 5 | 5 | 5 |
| Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
| Motor power (kw) | 1.1 | 1.1 | 1.1 |
| Walking mode | Manpower implementation | Manpower implementation | Manpower implementation |
| System oil pressure | 12Mpa | 12Mpa | 12Mpa |
| Rise/fall speed (m/s) | 0.02/0.05 | 0.02/0.05 | 0.02/0.05 |
| Operating Weight (kg) | 480 | 580 | 650 |
