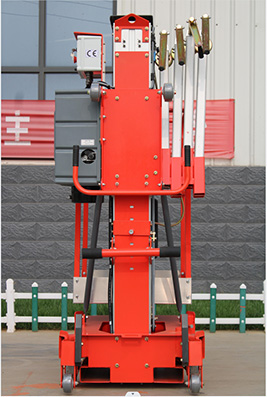

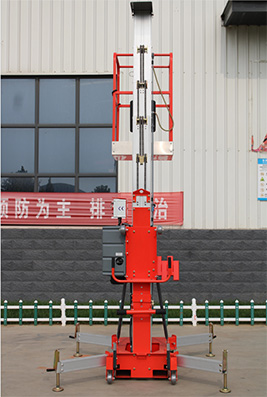

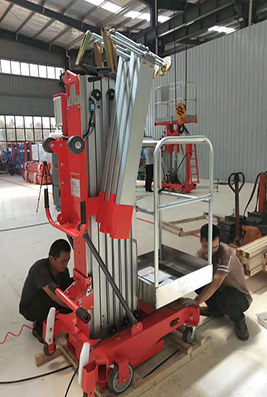

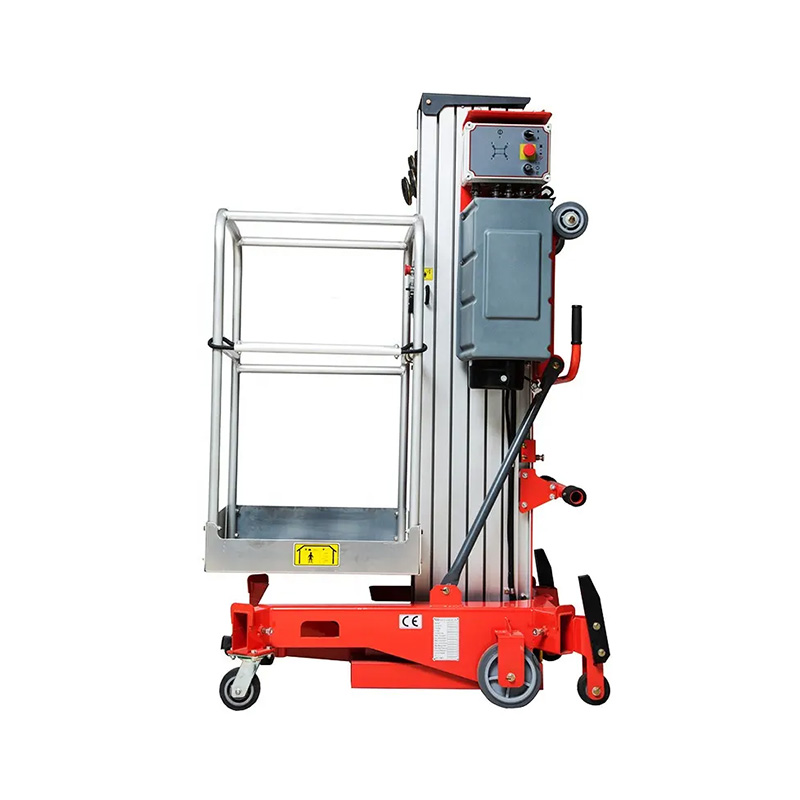

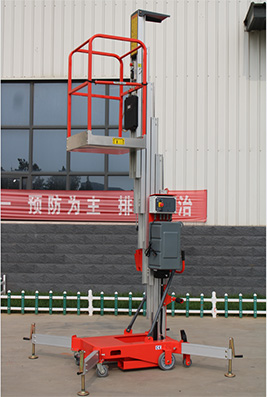

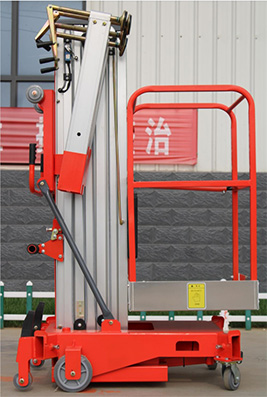

Single Mast Aluminum Alloy Lifting Platform
Single mast aluminum alloy lifting platform series strengthens the aluminum alloy mast design to ensure smooth operation and no deformation of the mast. The structure is precise and compact, and the body design is lightweight to ensure superior quality. Built-in backup power supply and manual valve design ensure that the control platform can be lowered on the platform or ground in case of power failure. The fuselage base is equipped with a movable auxiliary wheel to provide good turning performance and easily cross general ground obstacles. The single mast model is equipped with a truck loading and unloading auxiliary device, which can be loaded and unloaded by two people. The load safety factor of the lifting chain is 10:1, and a steel wire safety protection system is provided to ensure smooth and safe lifting. The supporting feet cover an extremely small area. After installation, the maximum distance from the platform to the wall is 0.34 meters, which is convenient for operation.
Product Application:

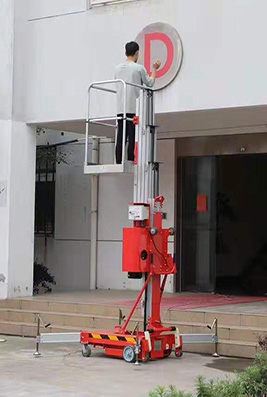

single mast aluminum alloy lifting platform has a beautiful appearance, small size, lightweight, flexible and convenient operation; Up and down two sets of control lifting system, stable lifting, safe and reliable. It is applicable to the repair, maintenance and cleaning of shopping malls, hotels, restaurants, interior decoration, exhibitions, space light lines, pipelines, doors and windows, as well as space operations in workshops with narrow areas or spaces. It is an ideal lifting machine and is welcomed by the majority of users.
Product Features:
The single mast aluminum alloy lifting platform is an aluminum alloy light single-person series aerial working platform with electro-hydraulic transmission, which is safe and reliable. The maximum working height can reach 14 meters, and the maximum load is 100 kg. It uses the internationally used safety plug-in outriggers, which are interlocked with the intelligent electric control, to provide mandatory safety protection for operators. The lift table is small in size, light in weight, flexible and convenient in movement, and can easily pass through the ordinary room and elevator door. The quality and performance exceed JC5099-1998, JG/T5103-1998, CE and other safety standards.
Aerial Working Platform Parameters Technical Parameters：
Model | GTWY1-6 | GTWY1-8 | GTWY1-9 |
Working height (m) | 8 | 10 | 11 |
Platform height (m) | 6 | 8 | 9 |
Load capacity (kg) | 150 | 150 | 150 |
Collection length (m) | 1.24 | 1.36 | 1.4 |
Collection width (m) | 0.74 | 0.74 | 0.74 |
Collection height (m) | 1.99 | 1.99 | 1.99 |
Platform length (m) | 0.67 | 0.67 | 0.67 |
Platform width (m) | 0.66 | 0.66 | 0.66 |
Guardrail height (m) | 1 | 1 | 1 |
Outrigger expansion size（m） | 1.6x1.6 | 1.7x1.7 | 1.7x1.7 |
Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
Motor power (kw) | 0.75kw | 0.75kw | 0.75kw |
Walking mode | Manpower implementation | Manpower implementation | Manpower implementation |
Maximum allowable wind speed at work | 12.5m/s | 12.5m/s | 12.5m/s |
System oil pressure | 12Mpa | 12Mpa | 12Mpa |
Up/down speed (m / s) | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
Weight of the whole machine (kg) | 320/355 | 345/380 | 365/400 |
Model | GTWY1-10 | GTWY1-11 | GTWY1-12 |
Working height (m) | 12 | 13 | 14 |
Platform height (m) | 10 | 11 | 12 |
Load capacity (kg) | 136 | 136 | 120 |
Collection length (m) | 1.42 | 1.44 | 1.46 |
Collection width (m) | 0.74 | 0.74 | 0.81 |
Collection height (m) | 1.99 | 1.99 | 2.68 |
Platform length (m) | 0.67 | 0.67 | 0.67 |
Platform width (m) | 0.66 | 0.66 | 0.66 |
Guardrail height (m) | 1 | 1 | 1 |
Outrigger expansion size | 1.9x1.7 | 2.1x1.8 | 2.3x1.9 |
Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
Motor power (kw) | 0.75kw | 0.75kw | 0.75kw |
Walking mode | Manpower implementation | Manpower implementation | Manpower implementation |
Maximum allowable wind speed at work | 12.5m/s | 12.5m/s | 12.5m/s |
System oil pressure | 12Mpa | 12Mpa | 12Mpa |
Up/down speed (m / s) | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
Weight of the whole machine (kg) | 385/420 | 410/445 | 460/495 |
